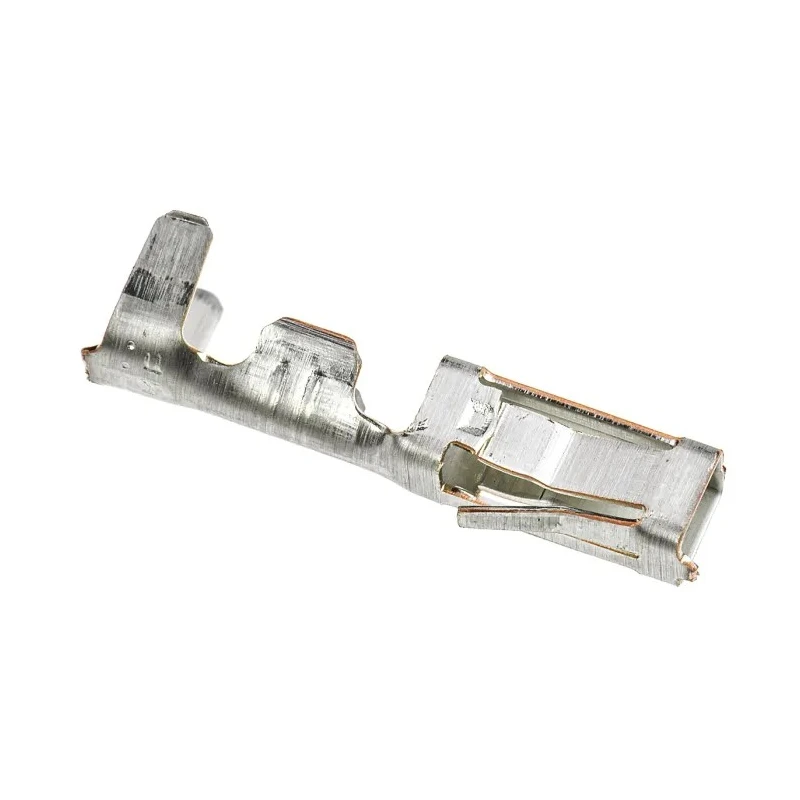

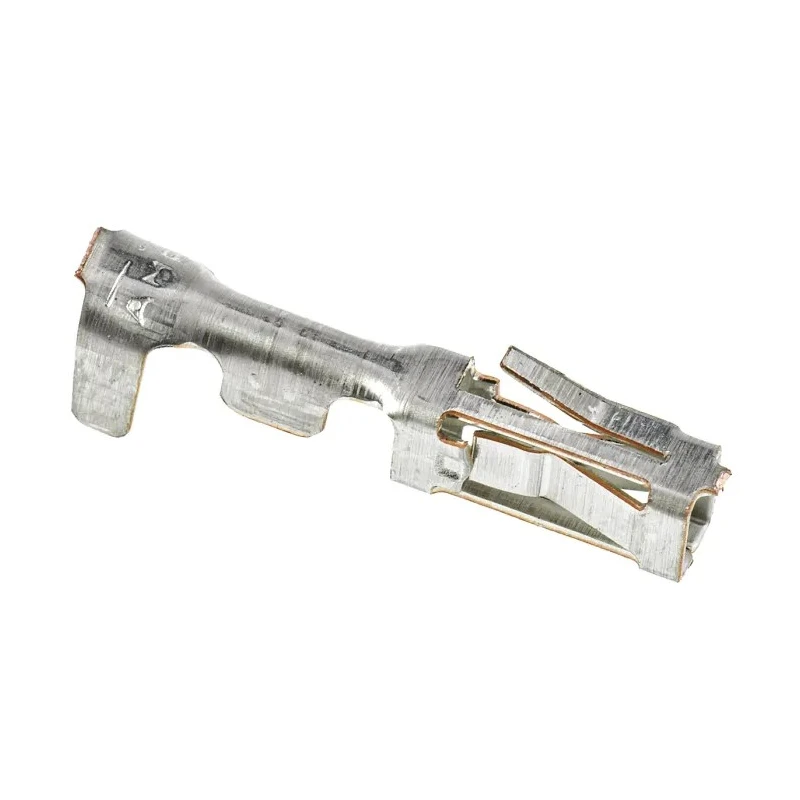

TE Connectivity AMPMODU MOD I Series Female Crimp Terminal, 3A Current, 20 AWG to 17 AWG Wire Size, Tin-Plated 281423-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 18.8mm |
| Model | 281423-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD I |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MOD I Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 17AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Provides a reliable crimp termination for AMPMODU MOD I connector housings.
- Constructed with phosphor bronze contact material ensuring durability and conductivity.
- Features tin plating to provide corrosion resistance.
- Operates effectively within a temperature range of -65°C to 105°C.
- Terminal length of 18.8 mm offers ease of installation and compatibility with standard tooling.
- Offers maximum contact resistance of 12 milliohms for efficient electrical performance.
- Suitable for use in industrial electronics assembly and connector applications.
- Designed for use in board-to-board and wire-to-board interconnect systems.
Product Description
TE Connectivity 281423-1 AMPMODU MOD I Series Female Crimp Terminal is engineered to provide robust and dependable electrical connections within the AMPMODU MOD I 3.96 mm interconnect system. Rated for 3 amperes, this female crimp terminal supports wire sizes ranging from 20 AWG (0.5 mm²) minimum to 17 AWG (1.0 mm²) maximum, ensuring versatility across various wiring requirements.
The contact material is high-quality phosphor bronze, plated with tin to resist corrosion and maintain conductivity over extended service periods. The crimp termination type allows for secure mechanical and electrical connection to the wire using appropriate crimp tooling.
With a length of 18.8 mm, the terminal is designed for precision and compatibility with AMPMODU MOD I connector housings, facilitating easy insertion and consistent contact engagement. The terminal exhibits a maximum contact resistance of 12 milliohms, promoting minimal signal loss and reliable current flow.
The thermal operating range of -65°C to 105°C makes it suitable for diverse environmental conditions encountered in industrial, electronic manufacturing, assembly, and maintenance applications.
This product is part of the TE Connectivity AMPMODU Mod I 3.96 mm interconnect system known for its ruggedness and suitability for board-to-board and wire-to-board applications in commercial and industrial electronics.
Reliable crimp termination for AMPMODU MOD I connectors. Durable phosphor bronze contact with tin plating. Wide operating temperature range from -65°C to 105°C. Low contact resistance ensures efficient conductivity. Compatible with standard crimp tools for ease of application.
The TE Connectivity AMPMODU MOD I Series Female Crimp Terminal 281423-1 fulfills demanding requirements for electronic components in automotive, industrial, and manufacturing sectors. Explore EnvMart's extensive range of reliable connectors and accessories for advanced electronics assembly solutions.
Explore more products in our Crimp Contacts category.
