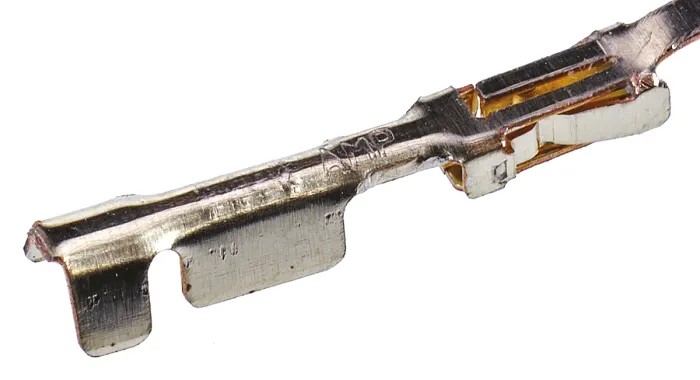

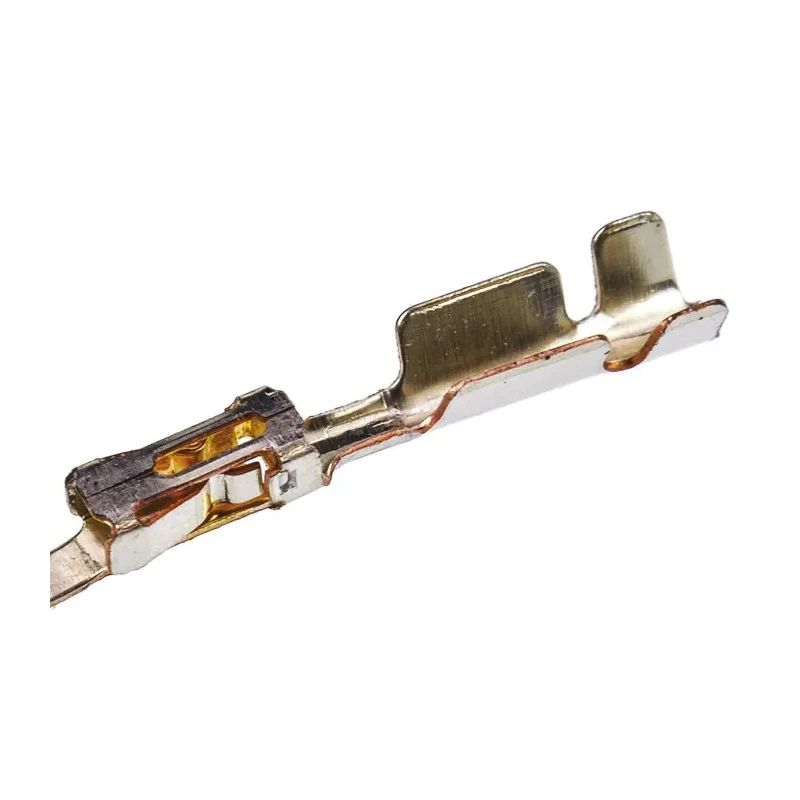

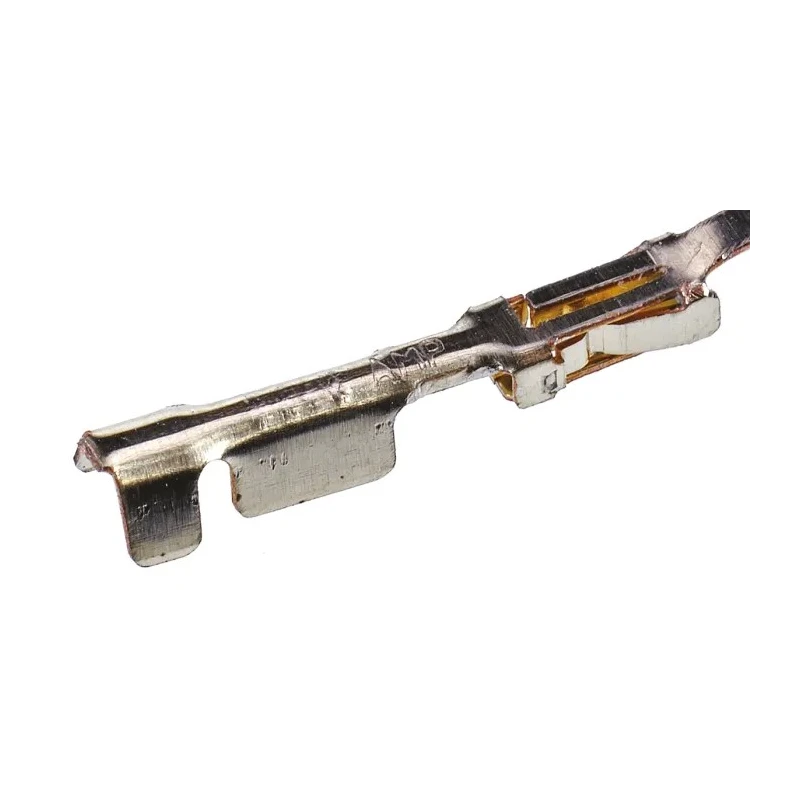

TE Connectivity AMPMODU MOD V Series Female Crimp Terminal, 3A Current, 24 to 20 AWG Wire Size, Gold Plated 166309-2

TE Connectivity 166309-2 Female Crimp Terminal from the AMPMODU MOD V Series is engineered for reliable electronic and electrical connections in industrial, automotive, and commercial applications. Designed to connect wires sized between 24 AWG (0.2mm²) and 20 AWG (0.6mm²), it supports currents up to 3 amps, making it suitable for moderate power signal transmission.

The contact is crafted from phosphor bronze and plated with gold, enhancing electrical conductivity and offering excellent corrosion resistance under harsh operating conditions. This terminal utilizes a crimp termination style to provide a secure mechanical and electrical interface with wiring harnesses and connector housings, specifically compatible with AMPMODU MOD IV connector housings.

Operating reliably across a wide temperature range from -65°C to 105°C, this crimp terminal fits compact spaces with its precise 18.03mm length and meets demanding electrical performance requirements by limiting maximum contact resistance to 12 milliohms, ensuring efficient signal integrity and minimal power loss.

Designed for use in various industrial sectors including manufacturing, automotive assembly, and electronics production, the AMPMODU MOD V series terminals facilitate high contact pressure connections that enhance durability and operational reliability. Their modular design enables seamless integration into standardized 2.54mm pitch grids for wire-to-board or board-to-board connections, suitable for complex electronic assemblies.

Installation is streamlined by compatibility with recommended crimp tools (stock number 233-00442), suitable for this and related terminal stock numbers, ensuring consistent crimps and improved production efficiency.

Gold plated phosphor bronze contacts deliver excellent electrical performance and resistance to corrosion. Rated for 3A current with support for wire sizes from 24 to 20 AWG. Crimp termination ensures robust mechanical and electrical connections.

Operating temperature range of -65°C to 105°C allows for wide environmental application. Compact 18.03mm length for space-constrained assemblies. Maximum contact resistance of 12mΩ for efficient conductivity. Compatible with AMPMODU MOD IV connector housings.

Modular 2.54mm pitch design supports industrial interconnect standards.
