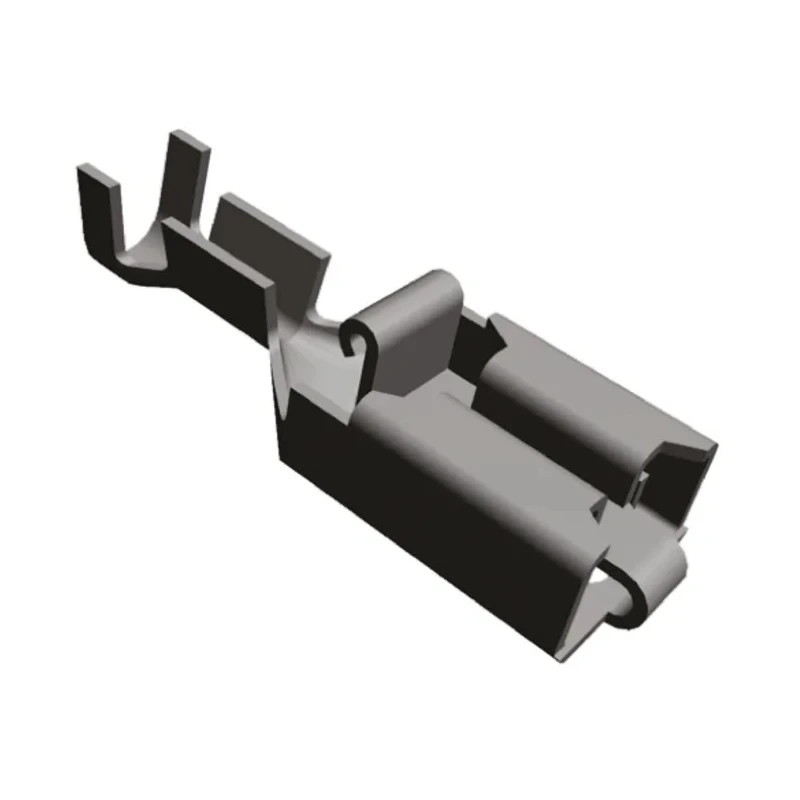

TE Connectivity Positive Lock .250 Mk I Series Female Crimp Terminal 20 AWG Min, 15 AWG Max 1-160759-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 22.3mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Positive Lock .250 Mk I |
| Termination Type | Crimp |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Positive Lock .250 Mk I Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 15AWG |
Key Features
- Compatible with Positive Lock .250 Mk I Connector Housing.
- Constructed using phosphor bronze contact material for durability.
- Tin-plated contacts ensure reliable electrical conductivity.
- Crimp termination type suitable for secure wire connections.
- Operates reliably between -40°C and 110°C temperature range.
- Compact length of 22.3 mm allows easy integration in assemblies.
- Designed for female gender contacts with secure snap action locking.
- No specific standards or approvals are listed for this product.
Product Description
TE Connectivity 1-160759-2 Positive Lock .250 Mk I Series Female Crimp Terminal is engineered for reliable wire termination in electronic components and power connectors. This crimp terminal is suitable for wire sizes ranging from 20 AWG (0.5 mm²) minimum up to 15 AWG (1.5 mm²) maximum, accommodating a broad range of wiring needs.
Constructed with high-quality phosphor bronze contact material and a tin plating finish, this contact terminal provides excellent conductivity and resistance to corrosion. The .250 Mk I positive lock design features reduced insertion force and a snap action locking mechanism that secures the terminal firmly to mating tabs with holes or dimples, enhancing mechanical and electrical reliability.
Termination is performed via crimping, ensuring a tight and permanent connection designed for durability in complex electronic and power connector systems. The terminal operates effectively within a temperature range from -40°C to 110°C, suitable for diverse industrial, commercial, and manufacturing environments.
With a precise length of 22.3 mm, the terminal is compact, facilitating space-efficient assembly in circuit boards and wire harnessing. The female gender contact ensures compatibility with specified mating connector housings, supporting positive locking to prevent accidental disengagement during operation.
Compatible with Positive Lock .250 Mk I Connector Housing. Durable phosphor bronze contact material. Tin-plated contacts for reliable conductivity. Crimp termination type for secure wire attachment. Temperature range: -40°C to 110°C.
Compact 22.3 mm length for efficient integration. Positive lock snap action for secure mating. No certifications or standards specified.
Ideal for use in electronics manufacturing, power distribution systems, and industrial control applications, this TE Connectivity Positive Lock crimp terminal ensures dependable electrical connection with ease of installation and secure mechanical locking.
Explore our wide range of connector components and Crimp Contacts to complement your assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal accommodates wire sizes from 20 AWG (0.5 mm²) minimum to 15 AWG (1.5 mm²) maximum.
It operates effectively within a temperature range of -40°C to 110°C, making it suitable for various industrial and commercial applications.
The contacts are constructed from phosphor bronze and are tin-plated to ensure reliable electrical conductivity and resistance to corrosion.
The terminal has a compact length of 22.3 mm, allowing for easy integration into assemblies.
This model uses crimp termination, which provides a secure and permanent connection for wire attachments.
It is specifically designed for use with Positive Lock .250 Mk I Connector Housing, ensuring secure mating and compatibility.
It features a positive lock snap action mechanism that secures the terminal firmly to mating tabs, enhancing reliability during operation.
This terminal is designed as a female contact, ensuring compatibility with specified mating connectors.
No specific certifications or standards are listed for this crimp terminal.
The crimp terminal is manufactured in India.
It is ideal for use in electronics manufacturing, power distribution systems, and industrial control applications.
The tin plating on the contacts ensures reliable electrical conductivity and enhances resistance to corrosion.
