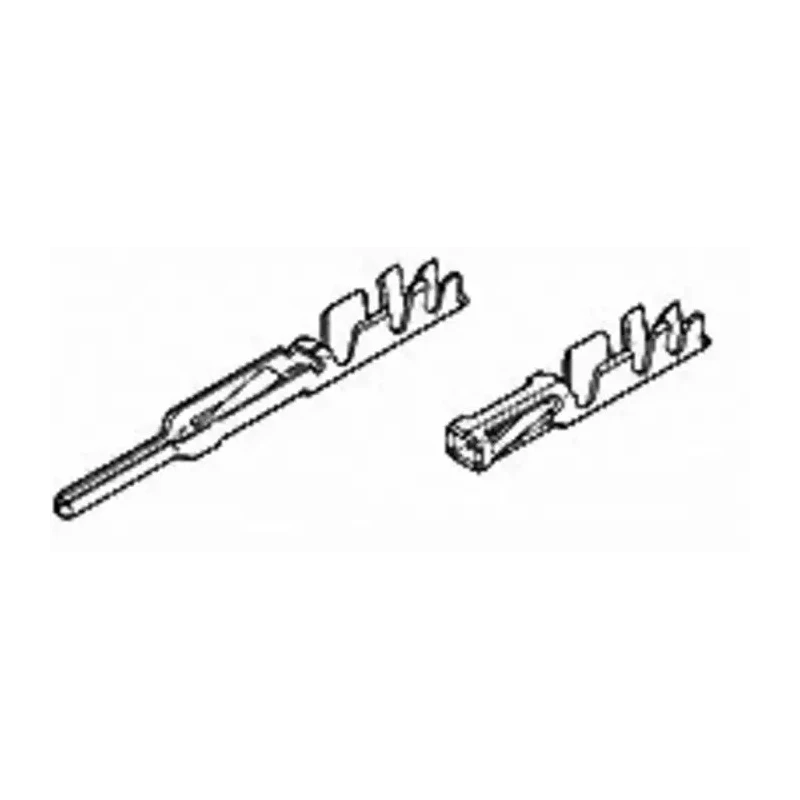

TE Connectivity FFC Series Male Crimp Terminal 26 AWG Min IDC, 22 AWG Max 1-86561-0

TE Connectivity 1-86561-0 FFC Series Male Crimp Terminal is engineered for robust and precise IDC termination of flat flexible cables with wire sizes ranging from 26 AWG minimum to 22 AWG maximum. This male crimp terminal is designed to fit FFC connector housings and is suitable for electronic components and industrial connector assemblies.

The contact material is phosphor bronze, which provides excellent mechanical strength and good conductivity. The contacts are tin plated to prevent corrosion and enhance durability in harsh environments. With a compact length of 7.5mm, these terminals are ideal for applications requiring low-profile connections.

The crimp terminal is rated for a current carrying capacity of 2A and has a maximum operating temperature of 105°C, while maintaining functionality at temperatures as low as -55°C. The maximum contact resistance is 45 milliohms, ensuring stable electrical performance with minimal losses.

These terminals utilize an IDC (Insulation Displacement Contact) termination type, allowing quick and secure wire termination without the need for soldering, improving production efficiency. This product is part of the AMPMODU Mod II 2.54mm pitch range, widely used in wire-to-board and wire-to-wire interconnects, making it suitable for applications in electronics manufacturing, industrial automation systems, and other commercial uses.

Compatible with FFC connector housings for secure wire-to-board connections. Supports current rating up to 2A ensuring efficient conductivity. Constructed with phosphor bronze contact material providing durability and strength.

Tin plating on contact surface prevents corrosion and ensures reliable signal transmission. Operating temperature range from -55°C to 105°C for versatile applications. Compact length of 7.5mm facilitates tight installation spaces.

Maximum contact resistance is 45mΩ, ensuring low electrical losses. Termination type is IDC, supporting quick and reliable wire insertion without soldering. Designed as male crimp terminal for AMPMODU Mod II range connector compatibility.

Suitable for electronics, industrial automation, and PCB wiring applications. Explore more TE Connectivity connector solutions in the Electronics & Electricals category at EnvMart for industry-leading quality and compatibility.
