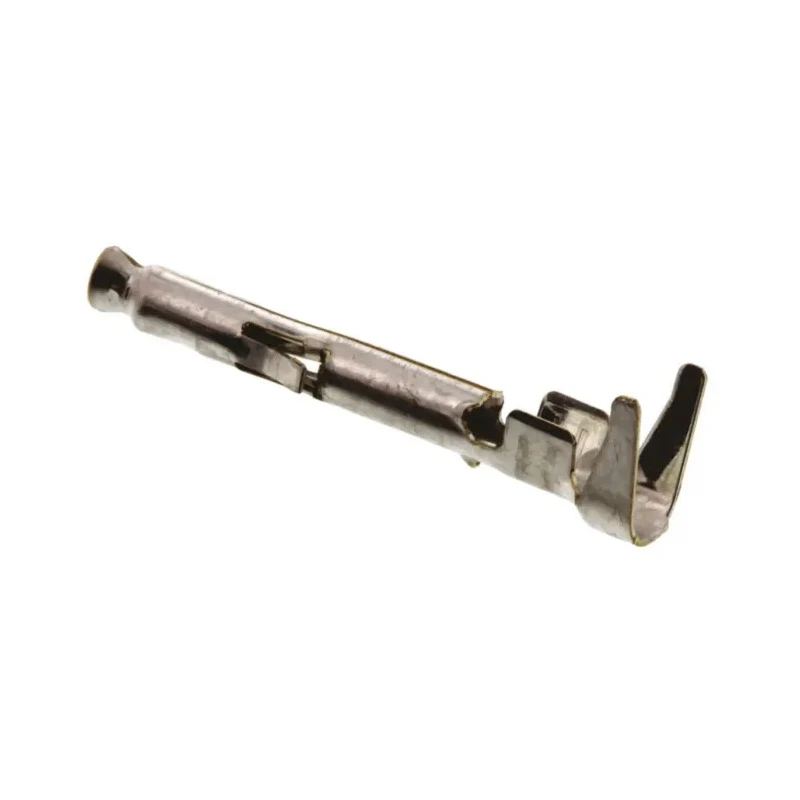

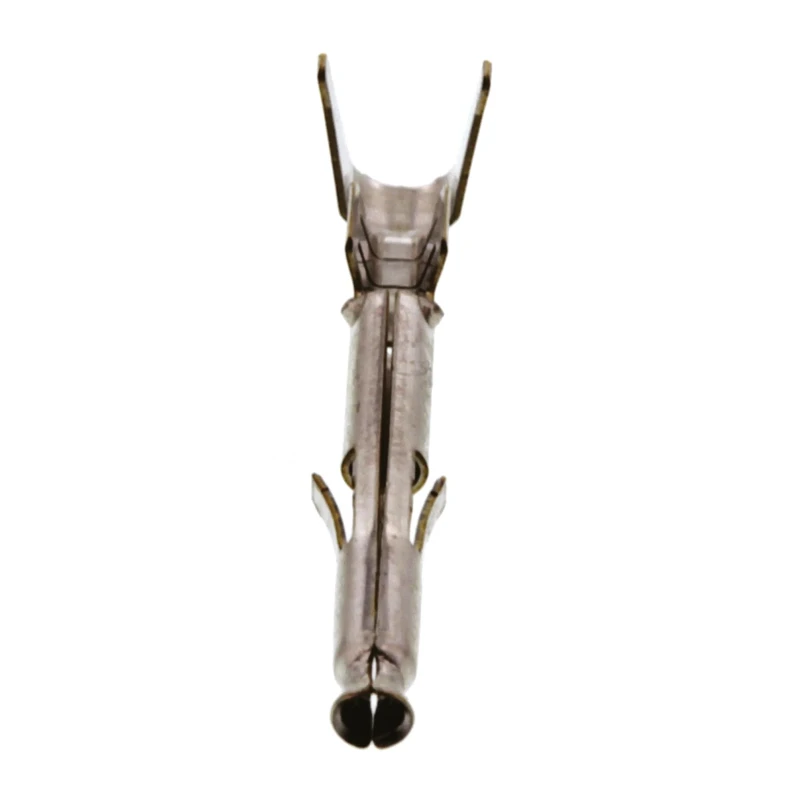

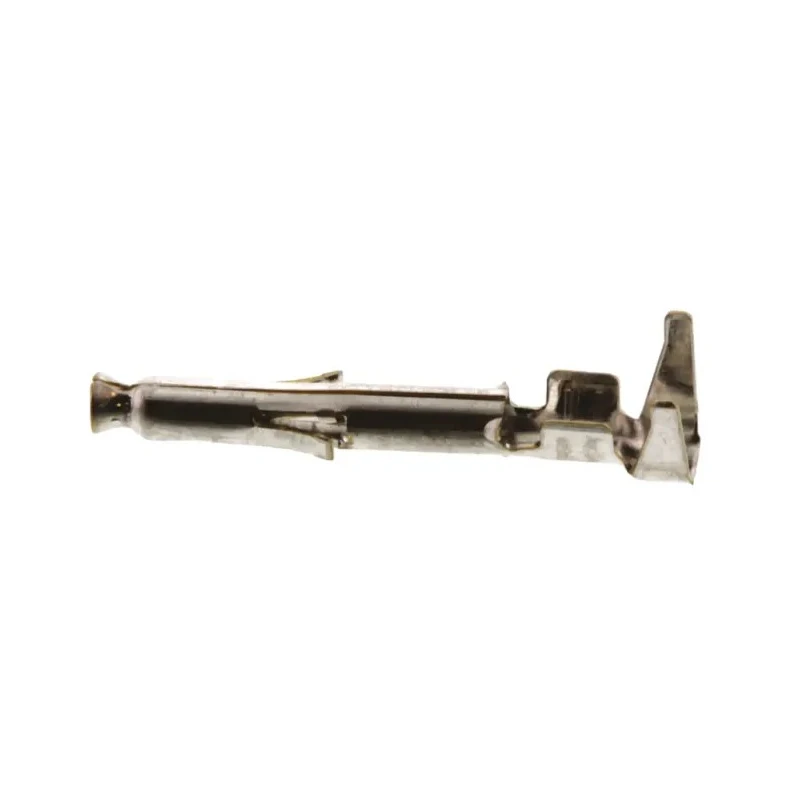

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, Brass Material, Tin Plated, 22 AWG to 18 170366-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170366-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The contact material is brass with a tin plating for corrosion resistance.
- The terminal is compatible with Mini-Universal MATE-N-LOK Connector Housings.
- The maximum operating temperature is 105°C allowing use in various environments.
- It features a crimp termination type ensuring reliable mechanical and electrical connection.
- Minimum operating temperature is -20°C for cold condition applicability.
- Offers low contact resistance of 10 milliohms for efficient signal transmission.
- Suitable for applications including consumer electronics, HVAC, medical, and security systems.
- Rated for 600 VAC/DC operating voltage and 7A contact current.
Product Description
TE Connectivity 170366-1 female crimp terminal from the Mini-Universal MATE-N-LOK Series is engineered for dependable wire-to-wire connection systems. The brass contact with tin plating provides excellent conductivity and corrosion resistance. It is designed for use with Mini-Universal MATE-N-LOK connector housings, accommodating wire sizes from 22 AWG minimum to 18 AWG maximum and rated for a current of 7 amperes with up to 600 VAC/DC operating voltage.
This crimp terminal ensures secure electrical connections with a low maximum contact resistance of 10 milliohms. It operates reliably across a temperature range of -20°C to 105°C, making it suitable for industrial, commercial, consumer electronics, HVAC, portable devices, medical, lighting, security, and power supply applications.
The female contact design facilitates correct mating with male connectors in various wire harness assemblies. Its crimp termination guarantees robust mechanical stability and electrical performance against vibration and environmental stresses.
The component complies with UL and CSA approvals (UL E28476, CSA LR7189), ensuring adherence to safety and quality standards. The contact’s brass construction and tin plating enhance durability and corrosion resistance. Supports wire sizes from 22 AWG to 18 AWG for versatile use.
Current rating of 7 amperes fits low to moderate power applications. Operation temperature range from -20°C up to 105°C ensures wide environmental suitability. Crimp termination type delivers quick and reliable installation.
Compatible with the Mini-Universal MATE-N-LOK connector housings system. Suitable for industrial, laboratory, commercial, and automotive electrical assemblies. This product is ideal for engineers and technicians designing or repairing electronic and electrical connector systems requiring reliable female crimp terminals.
Explore the full range of connectors and related accessories on EnvMart for comprehensive solutions in electronics and electrical connectivity.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum current of 7 amperes.
It accommodates wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The maximum operating temperature is 105°C, allowing it to function in various environments.
It features a crimp termination type, ensuring a reliable mechanical and electrical connection.
The minimum operating temperature is -20°C, suitable for cold conditions.
It has a maximum contact resistance of 10 milliohms, which supports efficient signal transmission.
This terminal is designed for use with Mini-Universal MATE-N-LOK connector housings.
The contact material is brass with a tin plating for corrosion resistance.
It is suitable for applications including consumer electronics, HVAC, medical, and security systems.
It complies with UL and CSA approvals, specifically UL E28476 and CSA LR7189.
This terminal is a female crimp terminal, designed for correct mating with male connectors.
The country of origin for this crimp terminal is India.
