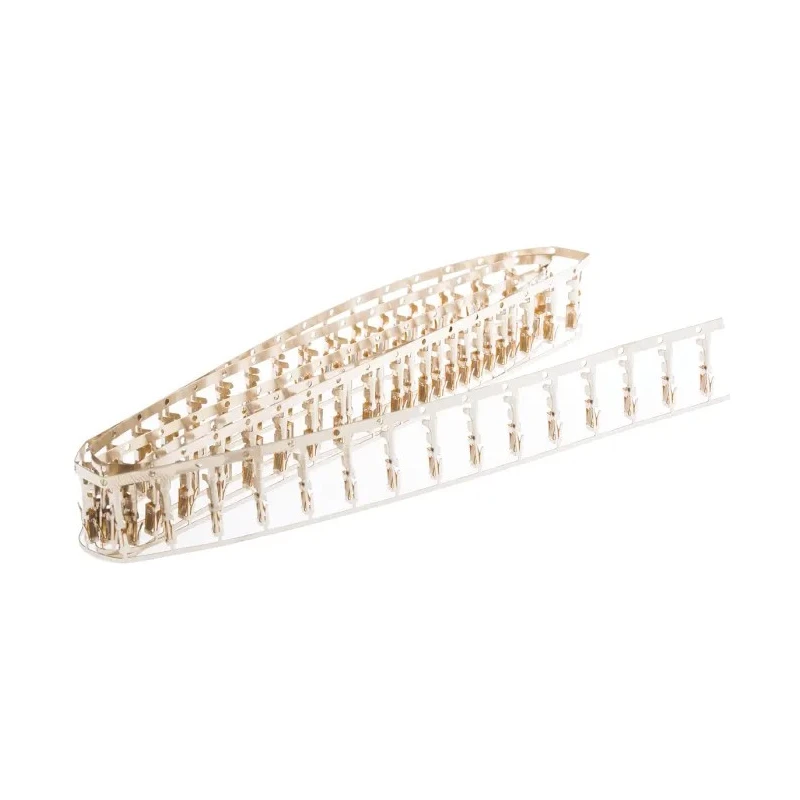

TE Connectivity AMPMODU MOD I Series Female Crimp Terminal 5A Current, 22-18 AWG Wire Size, 21.8mm Length 280621-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 21.8mm |
| Model | 280621-2 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD I |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMPMODU MOD I Connector Housing |
| Standards/Approvals | AMP Specification 108-20026 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Designed for wire sizes ranging from 22 AWG (0.3mm²) to 18 AWG (0.9mm²).
- Constructed with high-quality phosphor bronze contact material plated with gold for optimal conductivity.
- Features a crimp termination type ensuring secure wire connections.
- Operates effectively within temperature ranges of -40°C to 105°C.
- Compact 21.8mm length suitable for space-constrained applications.
- Max contact resistance of 12 milliohms ensuring efficient electrical performance.
- Meets AMP Specification 108-20026 standards for quality and reliability.
- Compatible with AMPMODU MOD I 3.96mm interconnect systems for board to board and wire to board connections.
Product Description
TE Connectivity 280621-2 Female Crimp Terminal is a specialized crimp contact designed for use with AMPMODU MOD I connector housings, providing a secure electrical connection in various electronic and industrial applications. Rated for a maximum current of 5 amperes, this terminal supports wire sizes from 22 AWG (0.3mm²) up to 18 AWG (0.9mm²), allowing versatility in wiring configurations.
Constructed from phosphor bronze with gold plating on the contact surface, the terminal ensures low contact resistance of 12 milliohms, enhancing signal integrity and minimizing power loss. The crimp termination offers a reliable mechanical and electrical connection suited for high-performance environments.
Its robust design operates within a temperature range of -40°C to 105°C, making it suitable for demanding industrial applications including manufacturing, electronic equipment assembly, and power systems. The 21.8mm length balances size and performance, fitting typical 3.96mm pitch AMPMODU MOD I interconnect systems.
This terminal complies with AMP Specification 108-20026, guaranteeing adherence to industry quality standards. Usage extends to board-to-board and wire-to-board interconnections in environments requiring durable, precise electrical connectors.
Wire size compatibility from 22 - 18 AWG (0.3 - 0.9mm²). Gold-plated phosphor bronze contact material for excellent conductivity and corrosion resistance. Crimp termination type providing secure and efficient wire connections.
Maximum operating temperature of 105°C ensures reliability under thermal stress. Low contact resistance of 12 milliohms enhances electrical performance. Compact design with 21.8mm length fits standard AMPMODU MOD I systems.
Rated for 5A current suitable for power and signal applications. Applicable for industrial, electronic manufacturing, and assembly uses. Complies with AMP Specification 108-20026 for quality assurance. Explore TE Connectivity products and related industrial electronic components at EnvMart to optimize your electrical connectivity solutions.
