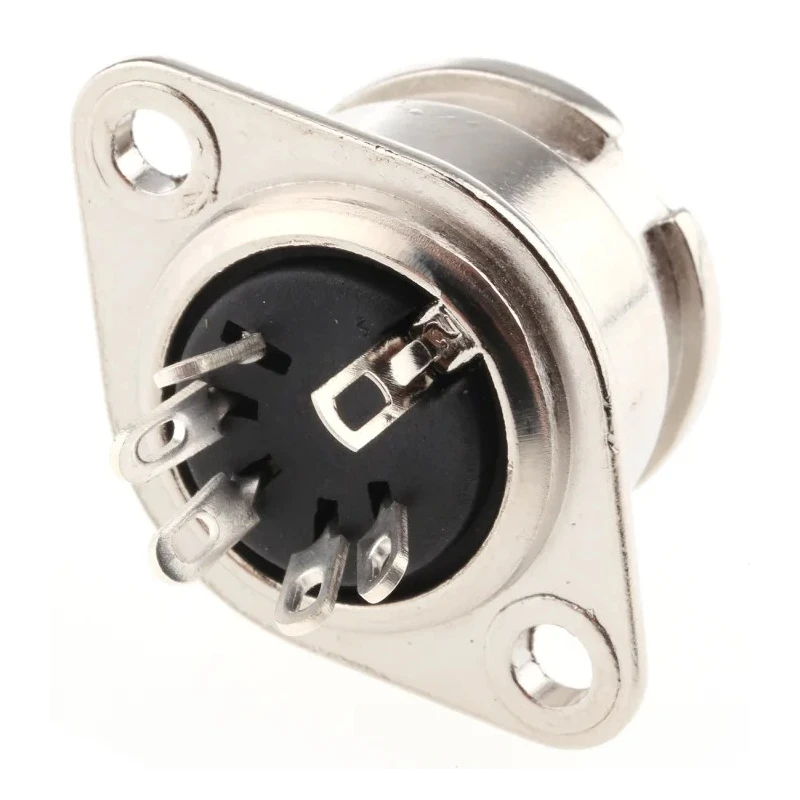

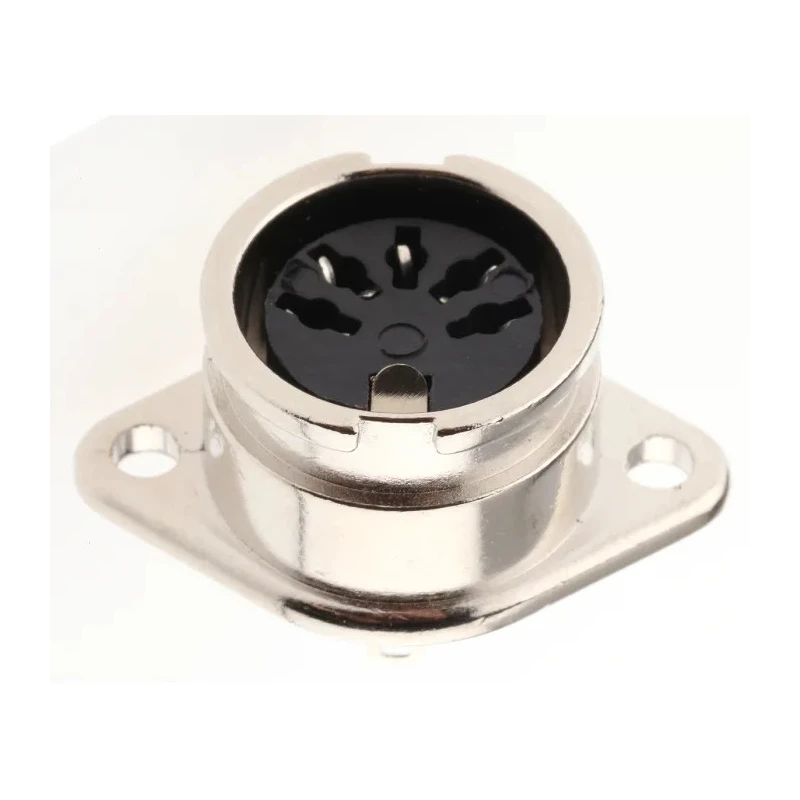

RS PRO YE-139XS 5 Pole Straight Standard DIN Socket, 4A, 100V AC, Bayonet Chassis Mount Female 490-977
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V ac |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 490-977 |
| Mount Type | Chassis Mount |
| Housing Material | ABS |
| Contact Material | Brass, Copper |
| Series | YE-139XS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Shield Type | Shielded |
| Pole Format | 5 |
| Contact Plating | Nickel Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Bayonet |
| Connector Size | Standard |
| 593 5 Pole Din, 2A, 34 V ac/dc, Bayonet, Female, Chassis MountBrand | NEUTRAL |
| RS PRO 5 Pole Din Socket, 2A, 100 V ac, Twist Lock, Female, Panel MountBrand | RS PRO |
Key Features
- 5 pole female DIN socket with bayonet locking for secure connections.
- Rated for 4A current and 100V AC operation, suitable for audio and instrumentation.
- Chassis mount design with straight orientation for panel integration.
- Features shielded construction with nickel silver plating for enhanced signal integrity and durability.
- Housing made from robust ABS plastic for long-term reliability.
- Wide operating temperature range from -25°C to +70°C for demanding environments.
- Brass and copper contacts provide reliable electrical interfacing.
- Compatible with standard DIN connectors for industrial, laboratory, and electronic systems.
Product Description
The RS PRO 490-977 YE-139XS is a straight standard DIN socket featuring 5 poles and designed for chassis mount installation. As a female connector, it utilises a bayonet locking system, ensuring quick, secure mating and stable connections in audio and instrumentation applications. Rated at 4A and 100V AC, this socket is engineered to offer reliable electrical interfacing for a wide range of equipment.
Shielded construction with nickel silver contact plating provides enhanced signal integrity and resistance to external interference. The socket's housing is constructed from rugged ABS plastic, making it suitable for industrial and laboratory environments where durability is essential. Brass and copper contacts ensure excellent conductivity and long-term reliability.
Its wide operating temperature range, from -25°C to +70°C, guarantees dependable operation even in challenging ambient conditions.
Compatibility with standard DIN connectors and cable-mounted plugs facilitates straightforward installation and maintenance in electrical, instrumentation, and electronic systems. The bayonet locking mechanism enables fast, tool-less connection and disconnection, supporting frequent equipment changes or servicing needs.
Typical uses include industrial automation, laboratory instrumentation, audio engineering, test and measurement setups, and commercial control panels. This connector is particularly well-suited to high-reliability applications demanding consistent performance over long service lifespans.
5 pole female DIN socket for industrial and lab electronic systems. Bayonet locking mechanism for secure, quick mating. Rated for 4A current and 100V AC voltage. Shielded construction with nickel silver plating for signal integrity.
Brass and copper contact materials. Chassis mount, straight orientation, and robust ABS housing design. Operating from -25°C to 70°C for wide environmental compatibility.
Explore the RS PRO range and other Circular Connectors on EnvMart for high-quality solutions, including DIN sockets and matching plug types for industrial, laboratory, and commercial installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 4A.
It supports a voltage of 100V AC.
The operating temperature range is from -25°C to +70°C.
The contacts are made from brass and copper, with nickel silver plating for enhanced signal integrity.
It is designed for chassis mount installation.
It utilizes a bayonet locking mechanism for secure connections.
The socket has a straight orientation for panel integration.
Yes, it is compatible with standard DIN connectors, facilitating straightforward installation.
The housing is made from robust ABS plastic.
It is suitable for audio, instrumentation, industrial automation, and laboratory applications.
This model features 5 poles.
The country of origin for this product is Taiwan.
