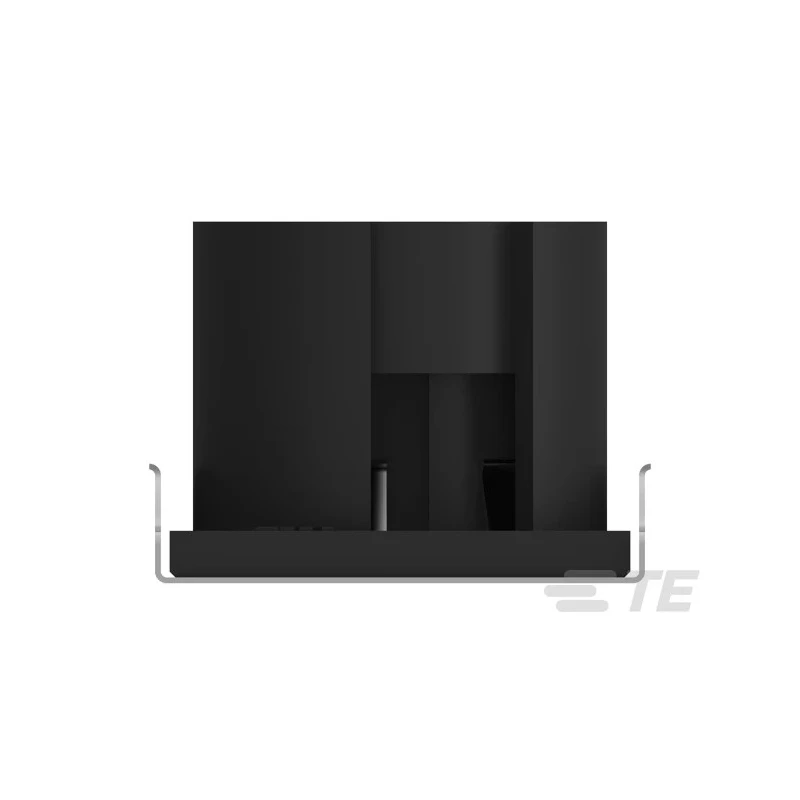

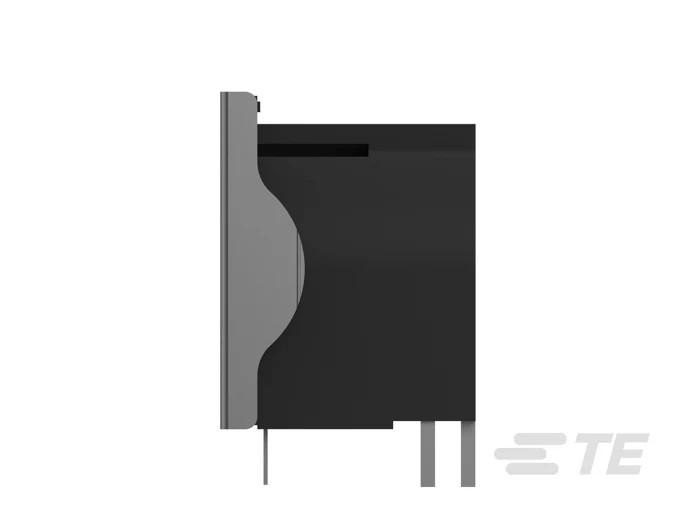

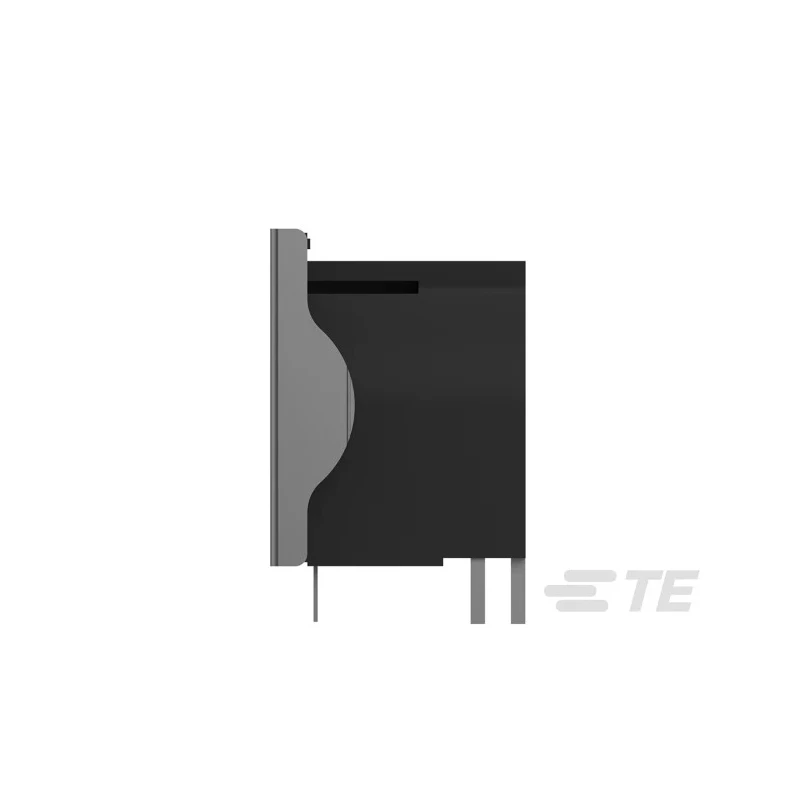

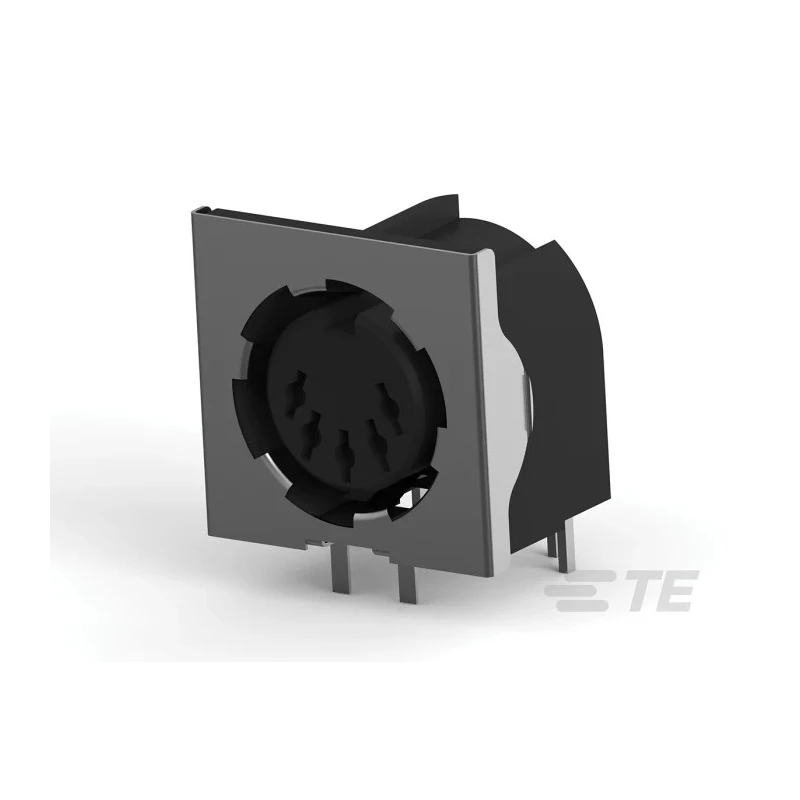

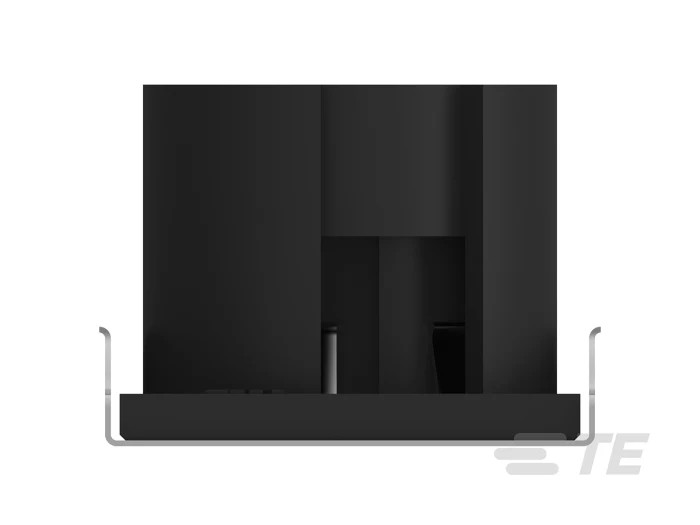

TE Connectivity 5 Pole Right Angle DIN Connector, Female, Through Hole, Shielded, 7.5A, 250V AC, Keyed, 5212044-1
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | 5212044 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Shield Type | Shielded |
| Pole Format | 5 |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Keyed |
Key Features
- DIN connector with five poles ensures reliable multi-line connections.
- Right angle orientation supports compact PCB layouts.
- Rated for 7.5A current and 250V AC voltage for safe power delivery.
- Female keyed design prevents mating errors and ensures secure connections.
- Shielded contacts made of tin-plated brass offer durability and corrosion resistance.
- Through hole solder termination provides robust mechanical stability.
- Wide operating temperature range from -55°C to 105°C for demanding environments.
- Nylon housing ensures strength and superior electrical insulation.
Product Description
The TE Connectivity 5212044-1 5 Pole Right Angle DIN Connector is a premium solution for industrial and electronic circuit interconnections. Engineered to provide robust and reliable connectivity, this female DIN connector is designed for through hole PCB mounting and features a right angle geometry that optimizes space on densely populated boards.
With five poles, this connector is capable of carrying multiple signals or power channels, making it suitable for a wide range of control, instrumentation, and data applications. Rated for up to 7.5A and 250V AC, it supports safe and efficient power and signal transfer in complex electronic or electrical assemblies. The keyed mating configuration enhances connection security, preventing errors during insertion and ensuring proper orientation.
Internal contacts are fabricated from high-quality brass and finished with tin over nickel plating, which provides outstanding conductivity, wear resistance, and reliable shielding against electromagnetic interference. The shielded design further protects sensitive signals in industrial environments where electrical noise is a concern.
Durability is assured thanks to the tough nylon housing, engineered for strength and electrical insulation. The connector supports a broad operating temperature range from -55°C to 105°C, allowing it to perform reliably in both extreme cold and elevated ambient temperatures.
Through hole termination enables firm soldering to printed circuit boards, securing the connector against mechanical stress and vibration found in industrial or laboratory settings. The right angle form factor permits neat cable routing and integration where space is at a premium.
This connector is widely used across industrial machinery, laboratory instrumentation, automation panels, and electro-mechanical control systems due to its versatility, safety, and proven reliability. Package includes one female DIN connector as specified. For further category or brand exploration, consider browsing the Circular Connector range by TE Connectivity or related solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 7.5A and a voltage of 250V AC, ensuring safe power delivery for various applications.
It features a through hole mounting type, allowing for secure soldering to printed circuit boards.
The housing is made of nylon, while the contacts are fabricated from brass and plated with tin over nickel for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 105°C, making it suitable for demanding environments.
The keyed mating configuration prevents mating errors and ensures secure connections, enhancing overall reliability during use.
This model features a 5 pole format, allowing for multiple signals or power channels to be connected.
It has a shielded design that protects against electromagnetic interference, making it suitable for industrial environments.
It is widely used in industrial machinery, laboratory instrumentation, automation panels, and electro-mechanical control systems.
The termination type is solder, which provides robust mechanical stability when connected to a PCB.
This connector features a right angle orientation, which helps optimize space on densely populated circuit boards.
This model has a total of 5 contacts, allowing for versatile connectivity options.
The country of origin for this connector is the United States.
