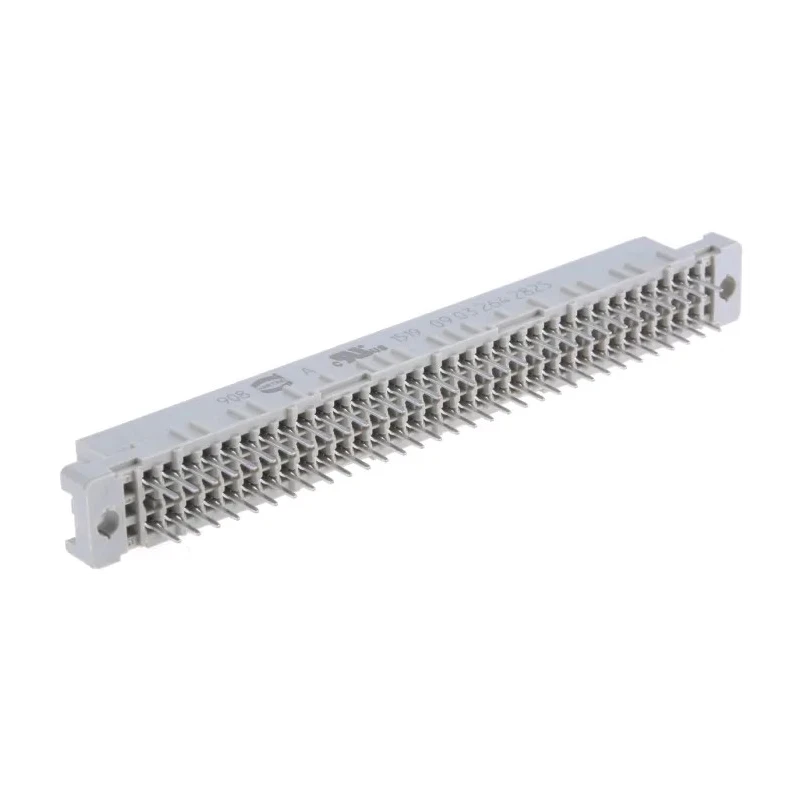

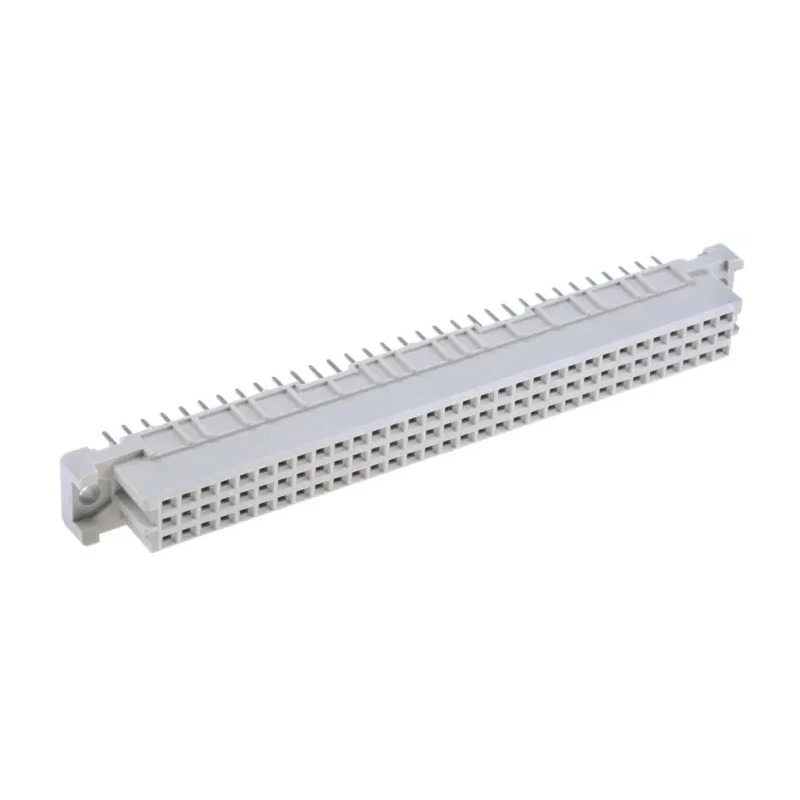

HARTING DIN 41612 64 Way 2.54 mm Pitch Type C Through Hole 2 Row Female Straight Connector 09032642825
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- High durability with a good mating cycle life, suitable for various electronic signal connector designs.
- Features gold over nickel plating for corrosion resistance and reliable contacts.
- Supports a current rating of 2A with a maximum contact resistance of 20mΩ.
- Operates reliably within a temperature range from -55°C to 125°C.
- Constructed with copper alloy contacts and a polybutylene terephthalate housing for robustness.
- Provides solder termination suitable for through hole mounting applications.
- Meets Class C1 soldering standards and features A/C row loading for optimal performance.
- Ideal for industrial, electronic, and communication equipment requiring dependable backplane connectivity.
Product Description
HARTING 09032642825 is a DIN 41612 connector featuring 64 contacts with a 2.54 mm pitch, arranged in two rows with female straight orientation. Designed specifically for PCB connection in electronic and industrial applications, this connector offers a robust and economical solution for backplane interconnections.
Manufactured in Germany, the connector features copper alloy contacts plated with gold over nickel to ensure reliable electrical performance and corrosion resistance. It is rated for currents up to 2A and operates under a wide temperature range from -55°C to 125°C, making it suitable for demanding environments.
The housing is constructed from polybutylene terephthalate, a thermoplastic resin reinforced with glass fiber, providing mechanical durability and resilience. It employs a solder termination type compatible with through hole mounting, facilitating secure attachment to printed circuit boards.
This product complies with Class C1 soldering standards and incorporates row loading A/C configuration for enhanced signal integrity. Its maximum contact resistance is 20 milliohms, ensuring minimal signal loss.
HARTING DIN 41612 connectors are widely used in industrial automation, telecommunications, instrumentation, and other electronic equipment requiring stable, high-density backplane connections.
High durability with a good mating cycle life, suitable for various electronic signal connector designs. Gold over nickel contact plating for enhanced corrosion resistance and conductivity. Rated for 2A continuous current with a maximum contact resistance of 20mΩ.
Operable in an extended temperature range from -55°C to 125°C for harsh environments. Copper alloy contacts and high-quality thermoplastic resin housing. Through hole, solder termination for reliable PCB mounting. Meets Class C1 soldering standards and supports A/C row loading for signal integrity.
Ideal for backplane and rack connector applications in industrial and electronic systems. Explore EnvMart's extensive range of DIN 41612 Connectors and related HARTING products for your electronic and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2A.
The maximum contact resistance is 20 milliohms.
It features copper alloy contacts and a housing made of polybutylene terephthalate.
It operates reliably within a temperature range from -55°C to 125°C.
This model has 64 contacts arranged in two rows.
It employs a solder termination type suitable for through hole mounting applications.
The contacts are arranged with a pitch of 2.54 mm.
The connector features a straight orientation.
It meets Class C1 soldering standards.
It incorporates A/C row loading for enhanced signal integrity.
This connector is manufactured in Germany.
It is ideal for industrial, electronic, and communication equipment requiring stable backplane connectivity.
