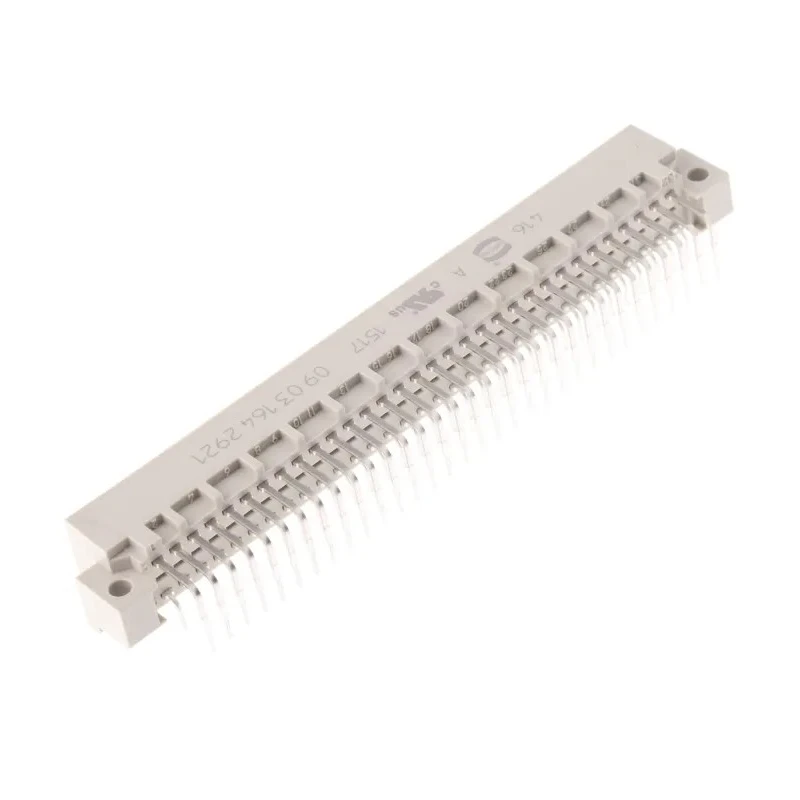

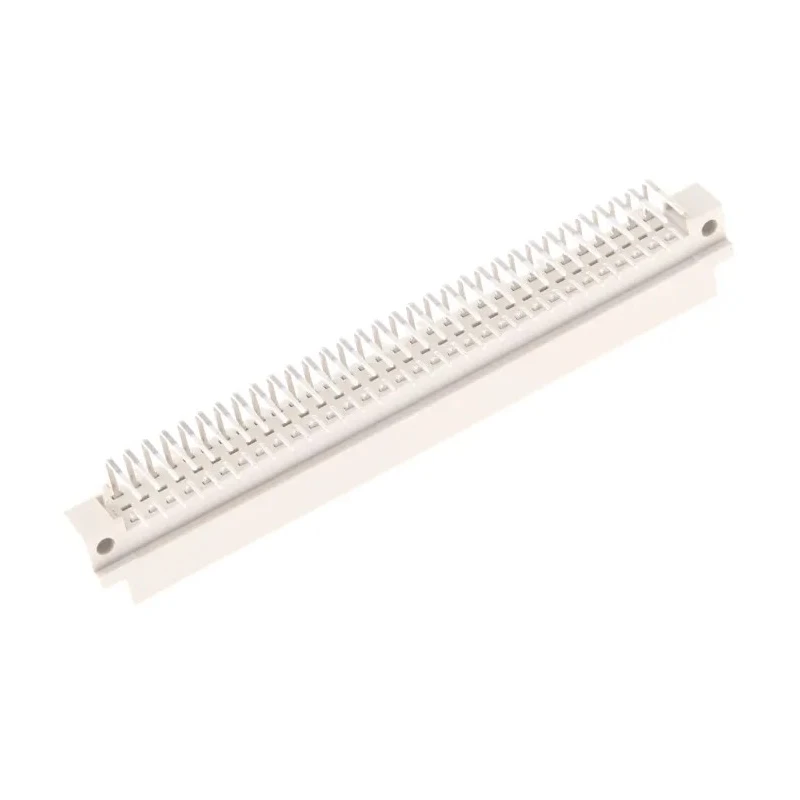

HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type C 2 Row Male Right Angle Connector 09031642921

HARTING 09031642921 DIN 41612 64 Way Right Angle Connector is a precision-engineered electronic component designed primarily for PCB backplane applications. This connector features 64 gold-plated contacts arranged in two rows with a 2.54 mm pitch, adhering to the DIN 41612 Type C standard. Manufactured to meet robust industrial requirements, it is well suited for use in electronic, industrial automation, and communication equipment where reliable and durable PCB interconnection is critical.

The connector’s through-hole mount and right angle orientation facilitate secure and space-optimized installations on printed circuit boards. Its construction from Polybutylene Terephthalate housing and copper alloy contacts with gold over nickel plating ensures excellent mechanical strength, high corrosion resistance, and low contact resistance, rated up to 20 milliohms. The connector supports a maximum current rating of 2 amps, ideal for signal and low power applications.

Operating reliably across a wide temperature range from -55°C to +125°C, this connector is suitable for harsh environments and demanding industrial use. It complies with Class C1 soldering standards, guaranteeing strong and consistent solder joints for long-term performance.

Common applications include telecom systems, computing hardware, measurement instruments, and industrial control systems. The connector supports dual row contacts with A/C loading to optimize mating cycles and signal integrity. Its design allows mating to start at positions a1 and a31, improving assembly reliability.

Made in Germany, the HARTING 09031642921 ensures premium quality and adherence to international manufacturing standards. It is part of the DIN 41612 series connectors used extensively for interconnection in 19-inch Eurocard rack systems and other modular electronic assemblies.

Features 64 contacts arranged in 2 rows for reliable signal transmission. Utilizes a 2.54 mm pitch with a Type C sub-type for standard compatibility. Constructed with gold over nickel contact plating for enhanced corrosion resistance.

Designed with a through-hole mount and right angle orientation for PCB applications. Capable of operating in a temperature range from -55°C to 125°C. Offers a maximum current rating of 2A suitable for signal-level connections.

Housing made from durable Polybutylene Terephthalate ensuring mechanical robustness. Provides a maximum contact resistance of 20 milliohms for efficient conductivity. Meets Class C1 soldering standards ensuring reliable solder joint quality.

Manufactured in Germany with copper alloy contacts for long-term durability. Explore more in the Electronics & Electricals category and find related DIN 41612 Connectors for your industrial and electronic assembly needs at EnvMart.
