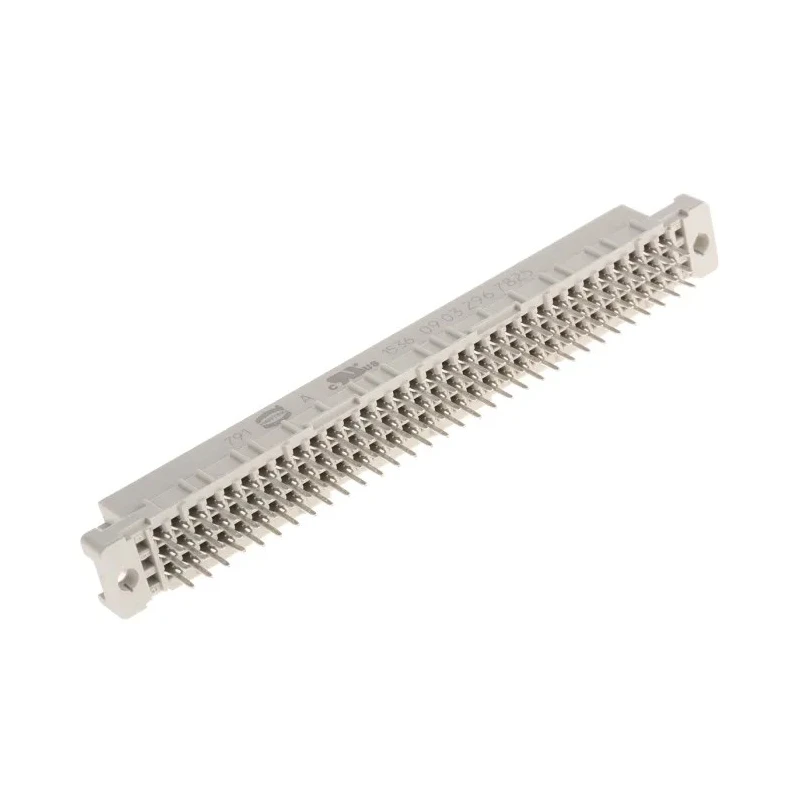

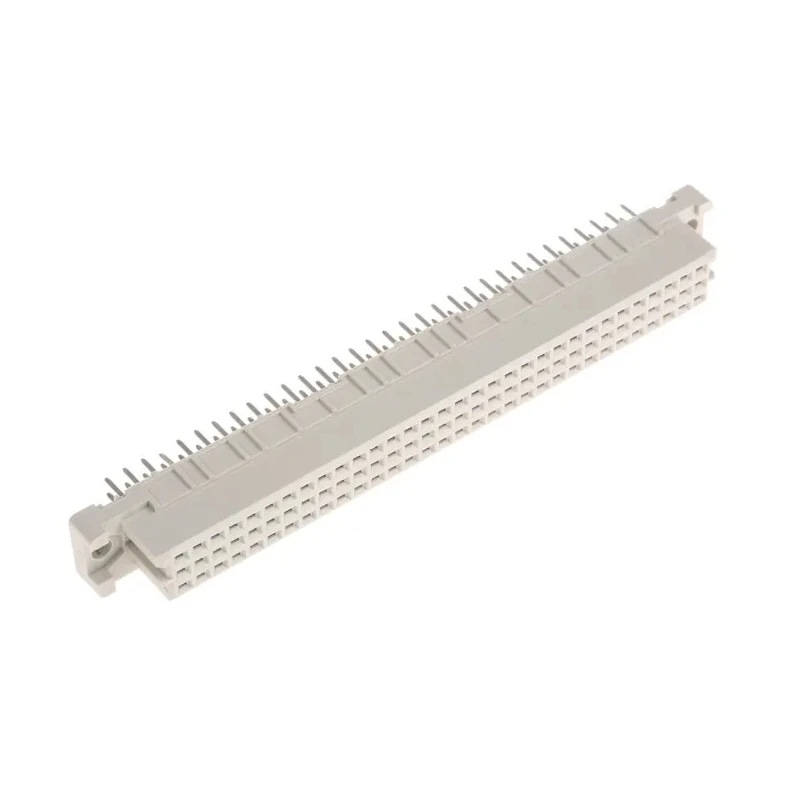

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/3 Solder Class C3 3 Row Female Connector Straight 09032967825

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/3 Solder Class C3 3 Row Female Connector Straight 09032967825

Name: HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/3 Solder Class C3 3 Row Female Connector Straight 09032967825
Brand: HARTING
SKU: 160474
Price: 5.81 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/3
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

The connector has 96 contacts arranged in 3 rows with a 2.54 mm pitch.
It is designed for through-hole mounting with solder termination for robust mechanical and electrical connection.
Female contact gender with gold over nickel plating offers reliable conductivity and corrosion resistance.
Suitable for operating temperatures from -55°C to 125°C, ensuring performance in demanding environments.
The contacts are made of copper alloy with a maximum contact resistance of 20 milliohms.
Housing is made of polybutylene terephthalate, providing durability and insulation.
It conforms to DIN 41612 series standards but has no additional certifications or approvals listed.
This product is made in Germany and is categorized under Class C3 solder class.

Product Description

HARTING 09032967825 DIN 41612 96 Way 2.54 mm Pitch Through Hole Type C/3 Solder Class C3 3 Row Female Connector is a high-quality backplane signal connector designed for use in electronic and industrial PCB interconnection systems.

This connector features 96 contacts in a 3-row arrangement, spaced at 2.54 mm pitch, optimized for reliable and durable connections in demanding industrial applications including telecommunications, automation, and manufacturing equipment.

The female contact configuration with gold over nickel plating ensures excellent electrical conductivity and resistance to corrosion, while the copper alloy contacts provide mechanical stability and low contact resistance up to 20 milliohms.

The housing is constructed from polybutylene terephthalate, a thermoplastic resin with glass fiber filling that offers strong insulation and mechanical robustness under high-stress environments. The connector is rated for a current of 2 amperes and operating temperature range from -55°C to 125°C, suitable for a wide variety of industrial and electronic applications.

Mating is designed for positions a1 and a31 first, supporting efficient and reliable assembly in systems conforming to DIN 41612 standards. The solder termination and through-hole mounting type provide strong mechanical retention on printed circuit boards.

This particular model 09032967825 is manufactured in Germany, assuring high manufacturing quality standards. It is ideal for industrial, laboratory, manufacturing, and commercial electronics applications requiring reliable DIN 41612 backplane connectors.

The connector includes 96 gold-plated contacts arranged in 3 rows. It supports through-hole mounting with solder termination. Rated current is 2 amperes with low contact resistance. Operating temperature from -55°C to 125°C for versatile use.

Constructed with durable polybutylene terephthalate housing and copper alloy contacts. Conforms to DIN 41612 series with Class C3 solder class. Manufactured in Germany with high-quality standards. Explore a wide range of connectors in the HARTING DIN 41612 connector series and browse EnvMart for compatible products and accessories.
