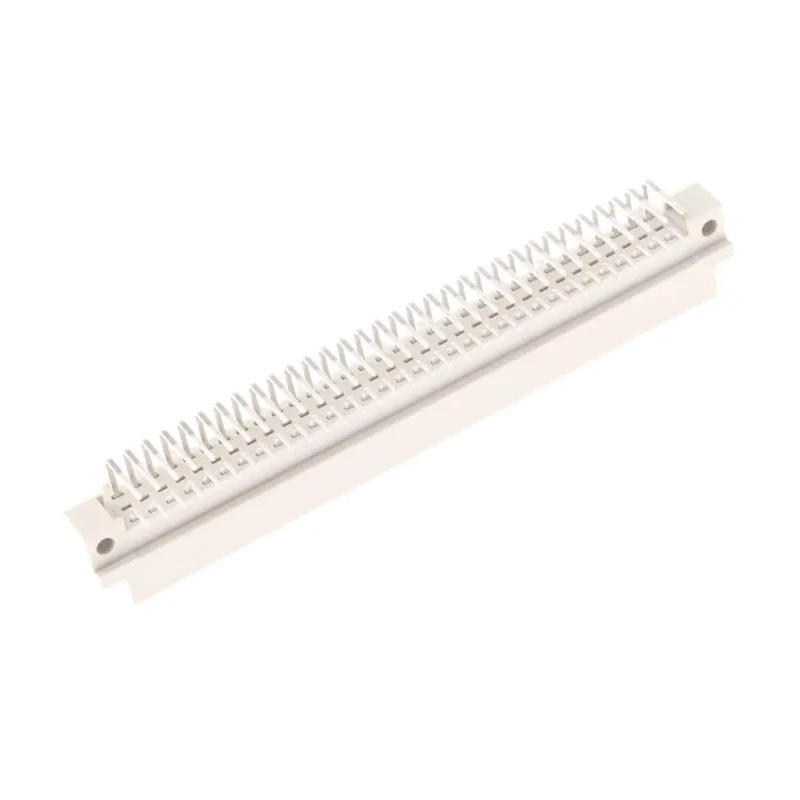

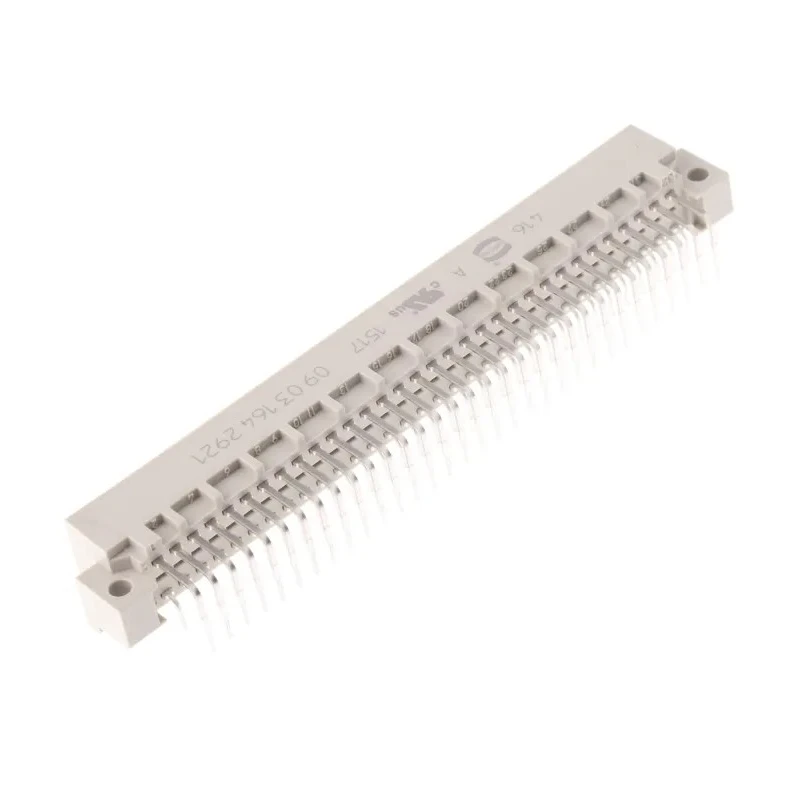

HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type C Solder Class C1 2 Row Male Right Angle Connector 09031642921
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Features 64 electrical contacts arranged in two rows for efficient signal transmission.
- Designed with a 2.54 mm pitch and Type C configuration for compatible PCB mounting.
- Includes gold over nickel plating on copper alloy contacts to reduce resistance and enhance durability.
- Right angle, through hole mount type for robust PCB installation.
- Rated for 2 amp current and operating temperature range from -55°C to 125°C.
- Constructed with polybutylene terephthalate housing for high mechanical strength and thermal stability.
- Offers a contact resistance maximum of 20 milliohms ensuring excellent conductivity.
- Class C1 solder termination providing secure and reliable solder joints.
Product Description
HARTING 09031642921 DIN 41612 64 Way Through Hole Connector is a high-quality electronic connector designed to meet rigorous industrial signal connection needs. Featuring 64 contacts arranged in two rows with a 2.54 mm pitch, this Type C connector supports robust signal interfacing on PCBs with a reliable through-hole mounting design.
Constructed with gold over nickel plated copper alloy contacts, this connector ensures low contact resistance and high performance under varied temperature conditions from -55°C to 125°C. The polybutylene terephthalate housing provides mechanical durability and excellent heat resistance.
The right angle orientation facilitates optimal PCB alignment and assembly in complex electronic systems, commonly used in industrial automation, backplane communications, and rack connector assemblies.
This connector complies with class C1 solder standards, ensuring dependable solder joints and long-lasting operation in manufacturing environments. It does not carry additional active certifications but delivers consistent quality backed by German manufacturing excellence.
64 electrical contacts arranged in two rows for signal integrity. 2.54 mm pitch Type C configuration for PCB mounting compatibility. Gold over nickel contact plating reduces oxidation and resistance. Right angle through hole design enhances mechanical stability.
Wide operating temperature range from -55°C to 125°C suitable for demanding applications. Contact resistance maximum of 20 milliohms ensures excellent conductivity. Polybutylene terephthalate housing for strong mechanical and thermal properties.
Class C1 solder termination for secure solder joints. Manufactured in Germany assuring high-quality standards.
This HARTING DIN 41612 connector is widely used in electronic, industrial automation, HVAC, manufacturing, and communications applications where reliable signal transmission and durability are key. For comprehensive connector solutions and accessories, explore the environment at EnvMart.
Explore more products in our DIN 41612 Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 2 amps.
It operates within a temperature range of -55°C to 125°C.
This connector features 64 electrical contacts arranged in two rows.
It uses a Class C1 solder termination type for secure solder joints.
The contacts are arranged with a pitch size of 2.54 mm.
The housing is constructed from polybutylene terephthalate, providing high mechanical strength and thermal stability.
The maximum contact resistance is 20 milliohms, ensuring excellent conductivity.
It has a right angle orientation, which facilitates optimal PCB alignment.
Yes, it is commonly used in industrial automation, backplane communications, and rack connector assemblies.
This connector is manufactured in Germany, assuring high-quality standards.
The contacts are plated with gold over nickel to reduce oxidation and resistance.
It features a through hole mount type for robust PCB installation.
