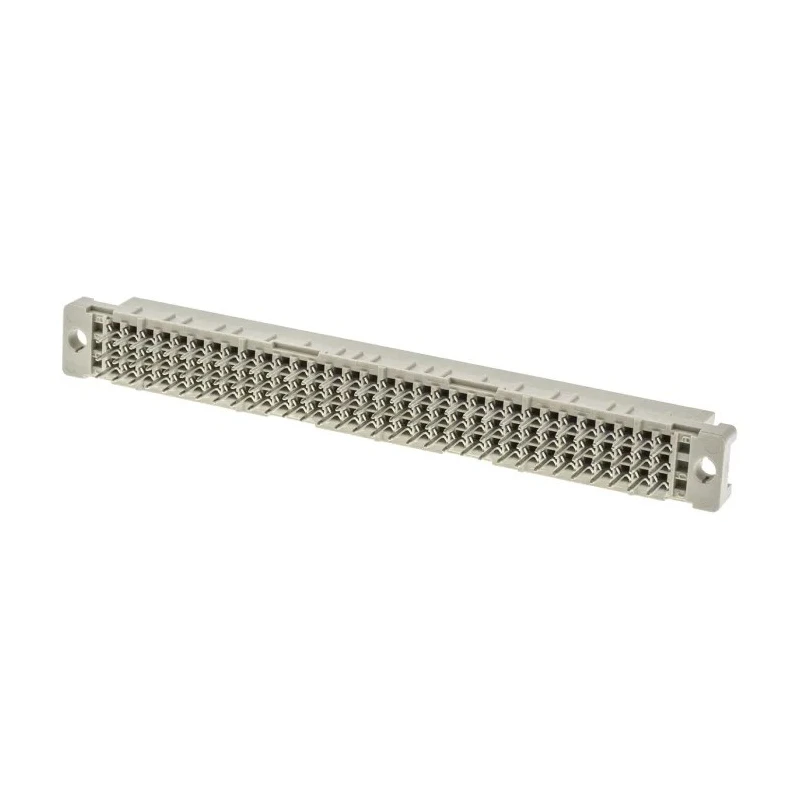

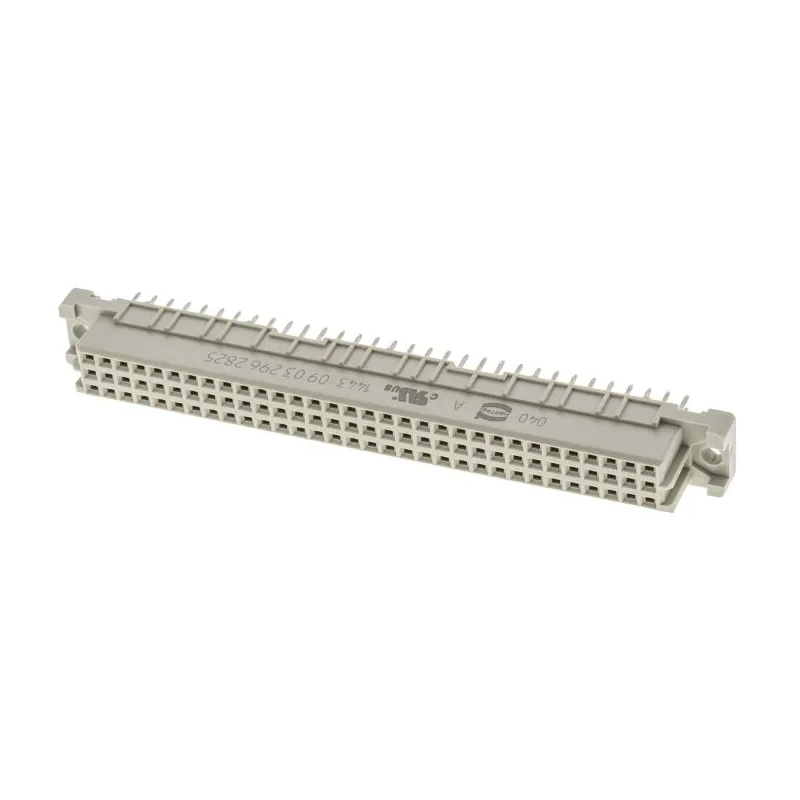

HARTING DIN 41612 96 Way 2.54 mm Pitch Type C Through Hole Female Connector, Class C1, 3 Row Straight 09032962825

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 96 Way 2.54 mm Pitch Type C Through Hole Female Connector, Class C1, 3 Row Straight 09032962825

Name: HARTING DIN 41612 96 Way 2.54 mm Pitch Type C Through Hole Female Connector, Class C1, 3 Row Straight 09032962825
Brand: HARTING
SKU: 160490



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

This connector features 96 contacts arranged in 3 rows for effective PCB connection.
Designed with gold over nickel plating to ensure excellent conductivity and corrosion resistance.
Capable of operating in temperatures ranging from -55°C to 125°C for diverse environments.
Rated for 2A current capacity with a maximum contact resistance of 20 mΩ.
Constructed from durable copper alloy contacts and polybutylene terephthalate housing material.
Supports mounting through the hole for secure mechanical and electrical connection.
Class C1 standard ensures high-quality solder termination.
Connector gender is female with row loading configuration A/B/C for optimal signal integrity.

Product Description

HARTING 09032962825 is a DIN 41612 connector featuring 96-way female contacts arranged in 3 rows with a 2.54 mm pitch. It is a type C connector designed for through-hole solder termination, conforming to Class C1 solder standards. This connector offers robust performance for high-reliability electronic and industrial applications requiring backplane and rack connections.

The connector supports a current rating of 2 amperes and has a maximum contact resistance of 20 milliohms, which ensures efficient electrical performance. Its operating temperature range spans from -55°C to 125°C, making it suitable for harsh industrial environments that require thermal resilience.

Constructed with copper alloy contacts plated in gold over nickel, the connector ensures excellent electrical conductivity while maintaining corrosion resistance. The housing is made from glass fiber-filled polybutylene terephthalate providing mechanical strength and durability.

The straight orientation and through-hole mounting provide a reliable mechanical and electrical connection, suitable for PCB backplane applications. It supports row loading configuration A/B/C to facilitate optimal circuit design and signal integrity in electronic equipment.

Manufactured in Germany, HARTING connectors are synonymous with quality and precision manufacturing, making this connector an economical solution for demanding electronic signal connector designs. It complies with standard DIN 41612 used widely in telecom, industrial automation, and data communication.

This connector features 96 contacts arranged in 3 rows for effective PCB connection. Gold over nickel plating ensures reliable conductivity and corrosion resistance. Wide operating temperature range from -55°C to 125°C adapts to harsh environments.

Current rating of 2A with low contact resistance of 20 mΩ ensures electrical efficiency. Copper alloy contacts with thermoplastic resin housing enhance durability and performance. Through-hole mount and straight orientation allow sturdy connections in PCB assemblies.

Conforms to Class C1 soldering standards for secure and stable terminations. Suitable for industrial electronics, backplane, and rack connector applications. Manufactured in Germany under stringent quality controls. Explore our extensive range of DIN 41612 Connectors at EnvMart for your industrial and electronic component requirements.
