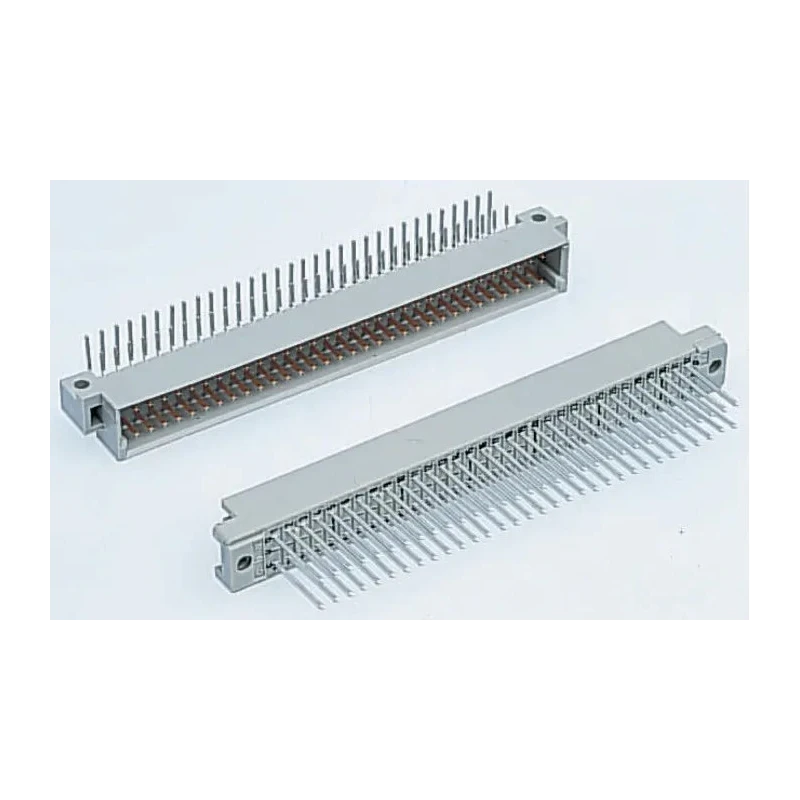

HARTING DIN 41612 Connector 32 Way 2.54 mm Pitch, Through Hole, Type B, Solder Termination, Class C2, 1 Row 09021326931

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 32 Way 2.54 mm Pitch, Through Hole, Type B, Solder Termination, Class C2, 1 Row 09021326931

Name: HARTING DIN 41612 Connector 32 Way 2.54 mm Pitch, Through Hole, Type B, Solder Termination, Class C2, 1 Row 09021326931
Brand: HARTING
SKU: 160466
Price: 3.77 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Type B
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	32
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A

Key Features

Supports a current rating of 2A per contact with a maximum operating temperature of 125°C.
Features gold over nickel contact plating for reliable electrical connectivity.
Constructed with copper alloy contacts and fibreglass reinforced thermoplastic housing for durability.
Offers a contact resistance up to 20 milliohms ensuring efficient signal transmission.
Meets the Class C2 solder termination standard, suitable for PCB applications.
Operates reliably within a temperature range of -55°C to 125°C.
Designed for through hole mount with a pitch of 2.54 mm supporting right angle orientation.
Country of origin is Germany, ensuring high manufacturing quality.

Product Description

HARTING 09021326931 DIN 41612 Connector is a durable and reliable electronic component designed to provide efficient PCB interconnections. This 32 way connector features a 2.54 mm pitch and is tailored for through hole mounting, incorporating a Type B configuration. It is a 1 row male, right angle connector developed to meet rigorous industrial and electronic standards.

The connector supports a current of up to 2 amperes per contact and operates in harsh temperature conditions from -55°C up to 125°C. The gold over nickel plating on copper alloy contacts ensures superb conductivity and corrosion resistance, while the fibreglass reinforced thermoplastic housing provides mechanical stability and resistance to environmental stress.

Ideal for industrial applications including electronic controls, computing equipment, communication hardware, and various automation systems, this connector is recognized for its reliability and longevity. The Class C2 solder termination type facilitates secure and precise mounting on printed circuit boards, providing a robust electrical and mechanical connection.

With a maximum contact resistance of 20 milliohms, the connector guarantees minimal signal loss, enhancing system performance. Its compliance with DIN 41612 standard makes it suitable for use in Eurocard racking and backplane connections within industrial and commercial electronics assemblies.

Supports 2A current per contact with maximum temperature rating of 125°C. Gold over nickel plated copper alloy contacts ensure excellent conductivity. Fibreglass reinforced thermoplastic housing provides durability and mechanical strength.

Through hole mount type with 2.54 mm pitch for secure PCB installation. Right angle orientation designed for flexible PCB layouts and optimized space usage. Class C2 solder termination ensures robust and precise electrical connections.

Operates between -55°C and 125°C for versatile industrial deployments. Manufactured in Germany, reflecting high quality standards.

Choose HARTING DIN 41612 Connectors for your industrial and electronics component needs to achieve reliable and high-performance signal transmission in demanding environments. Explore more connectors and related products within the EnvMart catalog for your specialized applications.
