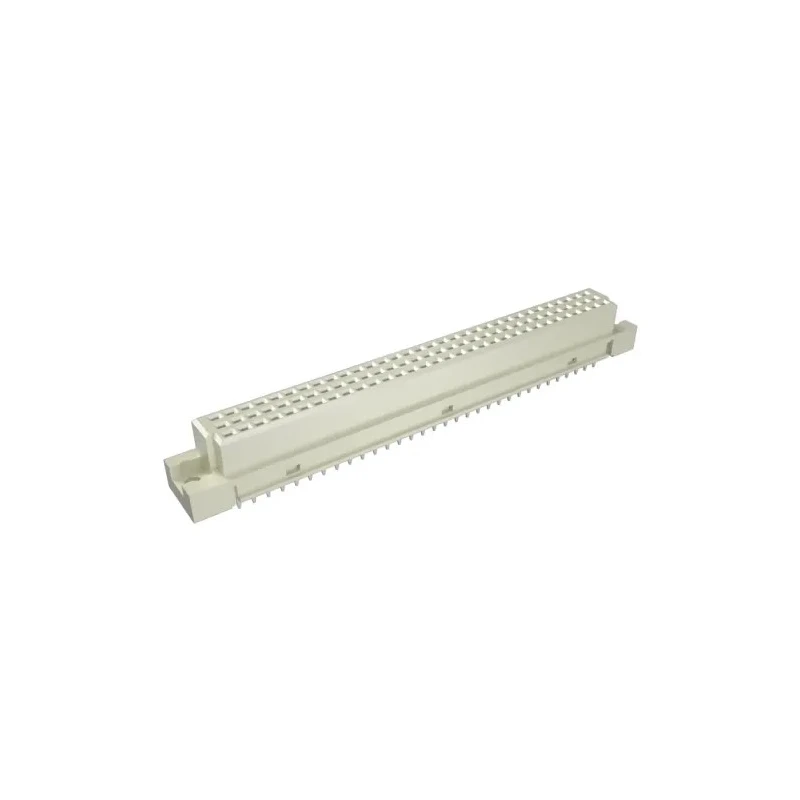

Amphenol Communications Solutions DIN 41612 96 Way 5.08 mm Pitch PCB Connector Type C/2, Solder 86093968114T55F1LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions DIN 41612 96 Way 5.08 mm Pitch PCB Connector Type C/2, Solder 86093968114T55F1LF

Name: Amphenol Communications Solutions DIN 41612 96 Way 5.08 mm Pitch PCB Connector Type C/2, Solder 86093968114T55F1LF
Brand: Amphenol Communications Solutions
SKU: 150461
Price: 5.59 USD
Availability: InStock



Category DIN 41612 Connectors Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	1kV ac
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	2A
Model	86093968114T55F1LF
Mount Type	PCB
Housing Material	Thermoplastic Polyester
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	5.08mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C
Ideal for Industrial & Instrumentation segment	Railways & Medical

Key Features

This connector features 96 contacts arranged in 3 rows, supporting a voltage rating of 1kV AC and current rating of 2A.
It is designed with gold over nickel contact plating and copper alloy contact material for excellent conductivity.
Termination is via solder type, suitable for PCB mounting in a straight orientation.
The connector uses thermoplastic polyester housing with high temperature resin compatible with the THR process.
It operates reliably in a temperature range from -55°C to 125°C, ideal for railways and medical applications.
Available with flexibility in grounding and termination options with various accessories for custom loading and enhanced reliability.
Its design ensures no arcing damage on contacts and features extended mating applications via a shroud on the rear side.

Product Description

Amphenol Communications Solutions 86093968114T55F1LF DIN 41612 96 Way PCB Connector is a high-quality electrical connector designed for industrial and instrumentation applications including railway and medical sectors, where performance and reliability under harsh conditions are essential.

With a 5.08 mm pitch between contacts and 96 contacts arranged in three rows, this connector supports a maximum current of 2A and withstands an AC voltage of up to 1kV. The contacts are plated with gold over nickel and made from copper alloy, providing excellent electrical conductivity and corrosion resistance. The connector termination is solder type, optimized for straight PCB mounting.

The housing is constructed from thermoplastic polyester with a high-temperature resin to ensure compatibility with soldering THR processes and durability in operating temperatures from -55°C to 125°C. This connector is classified as Class C2 and has a maximum contact resistance of 20 milliohms.

Designed specifically for specialized industrial and instrumentation use, it offers flexibility in grounding and termination types, along with a range of accessories to facilitate custom configurations. The design prevents arcing damage on resting contact positions, enhancing operational reliability. Furthermore, it is suitable for extended mating applications via a shroud on the rear side of the PCB, adding mechanical stability and protection.

This product is manufactured in India and meets the demands of industrial environments requiring precise and reliable backplane and rack connectors. Features include 96 contacts in 3 rows with a 5.08 mm pitch. Gold over nickel plating with copper alloy contacts for robust electrical performance.

Solder termination type suitable for PCB mounting with straight orientation. Thermoplastic polyester housing with high temperature resin for THR process compatibility. Operating temperature range from -55°C to 125°C suitable for harsh environments.

Ideal for railways, medical, and other industrial instrumentation applications requiring reliability and flexibility. Extended mating capability with rear shroud and options for custom grounding and loading. Explore more DIN 41612 Connectors and advanced PCB connectors at EnvMart to meet your industrial and instrumentation needs.
