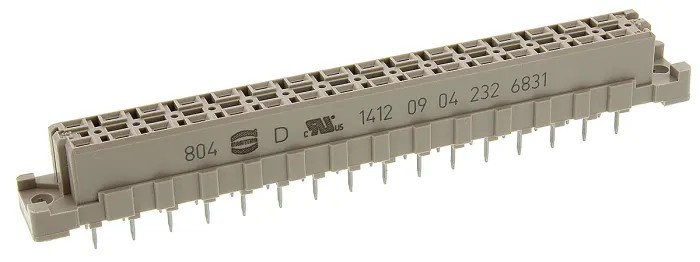

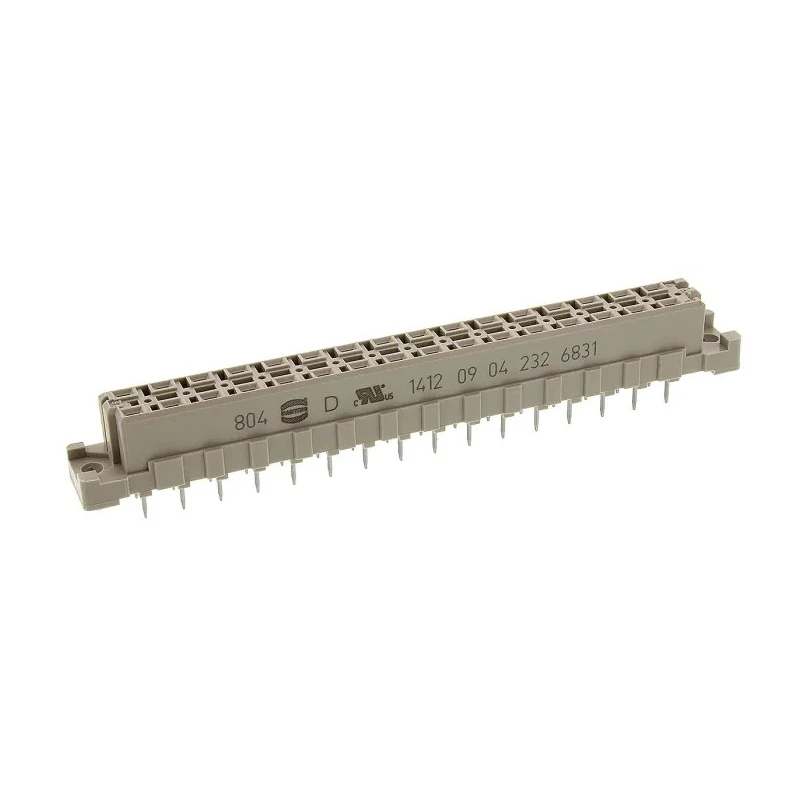

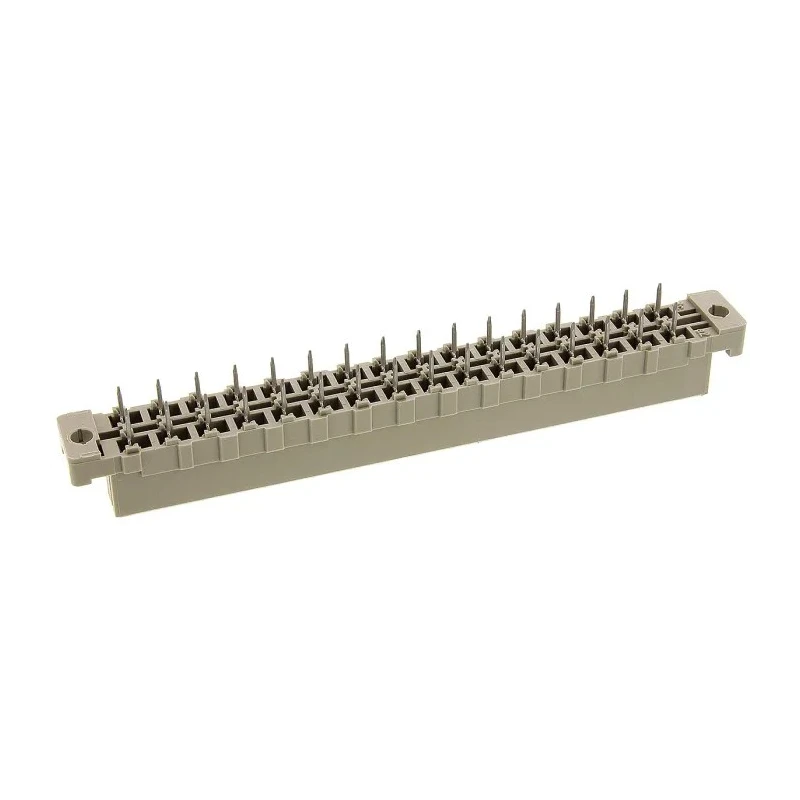

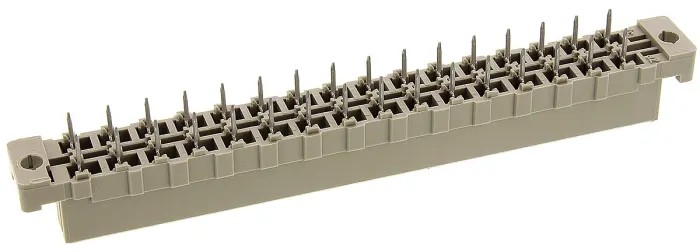

HARTING DIN 41612 32 Way 5.08 mm Pitch 6A Current 2 Row Female Straight Through Hole Connector Type C/2 Solder 09042326831
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C |
Key Features
- This connector features 32 contacts with gold over nickel plating for reliable electrical performance.
- Rated for a maximum current of 6A per contact, suitable for power supply needs.
- Constructed with polybutylene terephthalate housing and copper alloy contacts for durability.
- Designed with through hole mount type for secure PCB installation.
- Operates in temperature ranges from -55°C to 125°C, ensuring resilience in harsh environments.
- Has a maximum contact resistance of 15 milliohms, enabling efficient signal transmission.
- Utilizes a 2-row female orientation with row loading A/C and Type C/2 sub classification.
- Ideal for industrial, electronic, and power distribution systems requiring stable backplane connections.
Product Description
HARTING 09042326831 DIN 41612 32 Way Female Straight Connector offers a precise 5.08 mm pitch and solder termination under Class C2 standards, suitable for industrial, electronic, and power connection applications.
Designed with 32 gold over nickel-plated copper alloy contacts housed in durable polybutylene terephthalate, it guarantees robust performance and long mating life cycles.
This connector supports a maximum current of 6A per contact and withstands operating temperatures ranging from -55°C up to 125°C, making it adaptable to demanding environmental conditions.
The product features a through-hole mount type and a 2-row female connector configuration with row loading A/C and a Type C/2 classification, ensuring compatibility with various backplane and rack systems.
Its maximum contact resistance is limited to 15 milliohms to enhance electrical efficiency and signal integrity. This connector includes 32 contacts plated with gold over nickel to reduce oxidation. Its polybutylene terephthalate housing provides excellent insulation and mechanical strength.
The through-hole mounting design securely affixes the connector to printed circuit boards. Class C2 solder termination ensures dependable connectivity for assembly and manufacturing. Suitable for industrial, laboratory, manufacturing, and electronic power distribution applications.
HARTING is known for producing high-quality DIN 41612 Connectors that meet exacting standards for power and signal interconnects in commercial and industrial environments. Browse more connectors and electronic components at EnvMart for robust, reliable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a maximum current of 6A per contact.
The pitch size of this connector is 5.08 mm.
It is constructed with a polybutylene terephthalate housing and copper alloy contacts, with contacts plated in gold over nickel.
This connector operates within a temperature range of -55°C to 125°C.
This connector features 32 contacts.
It utilizes a through-hole mount type for secure installation on printed circuit boards.
The maximum contact resistance is limited to 15 milliohms, enhancing signal transmission efficiency.
This model has a straight orientation with a 2-row female configuration.
It employs a solder termination type under Class C2 standards.
It is designed for use in industrial, electronic, and power distribution systems requiring stable backplane connections.
This connector is classified under Type C/2 with row loading A/C.
The country of origin for this connector is India.
