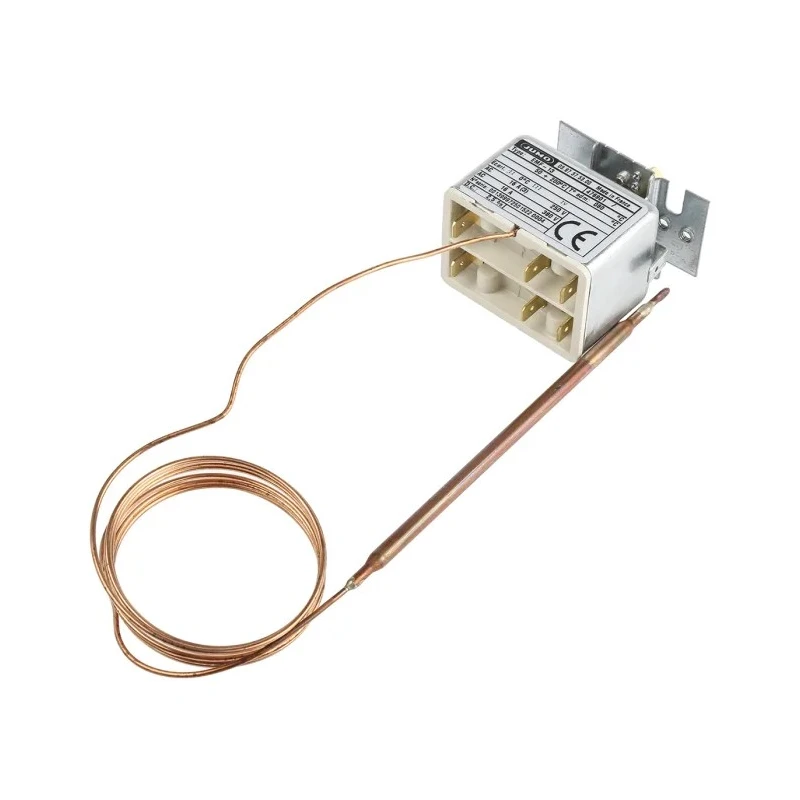

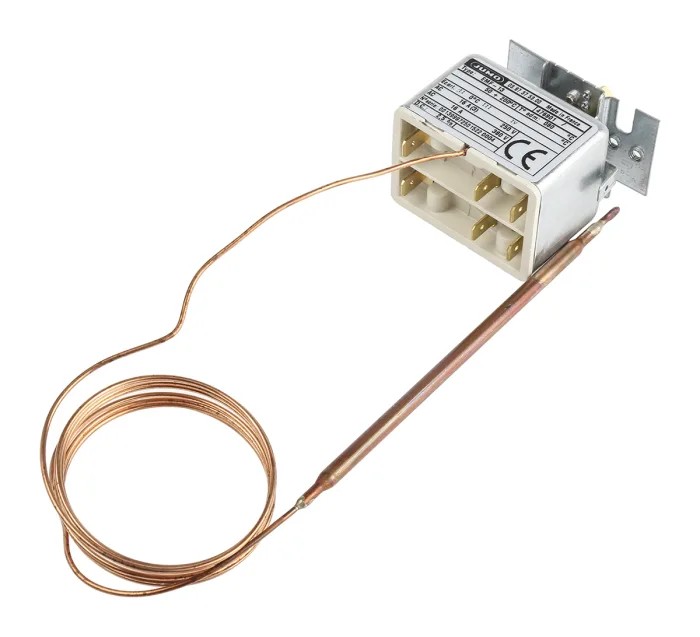

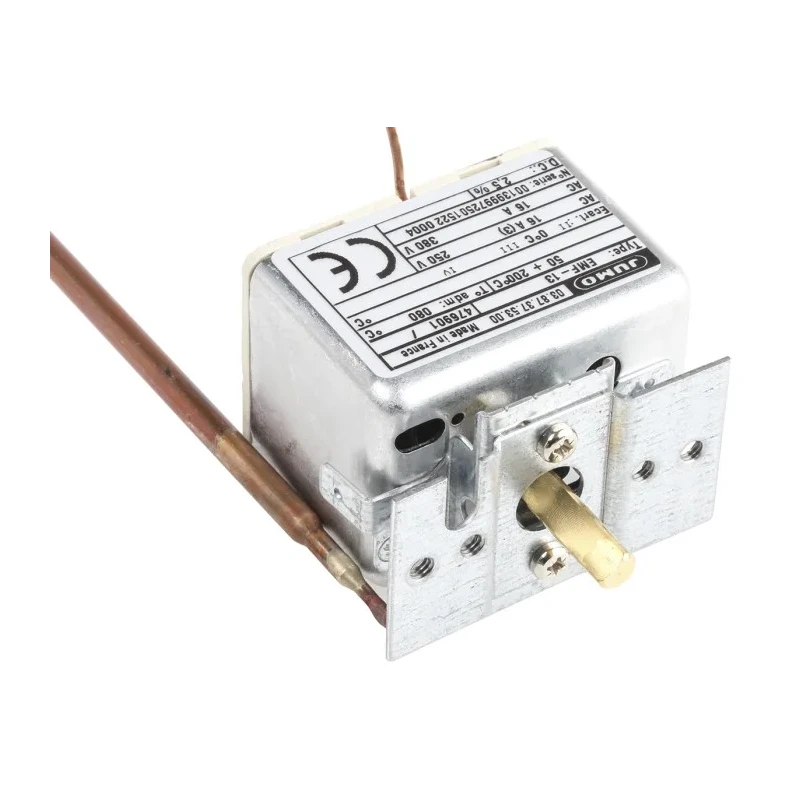

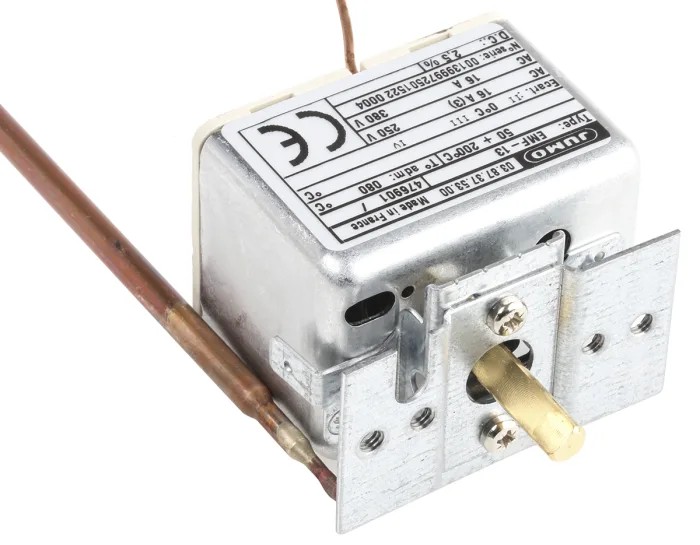

Jumo Capillary Thermostat Safety Temperature Monitor Panel Mount 230V AC 16A 602021/0001

Jumo 602021/0001 capillary thermostat is a versatile safety temperature monitor designed for panel mounting in industrial electrical and automation systems. Operating at 230V AC with a contact current rating of 16A, it ensures reliable performance for temperature control, monitoring, and limitation tasks.

This thermostat operates over a temperature range from +50°C to +200°C, making it suitable for demanding industrial environments that require precise temperature safety management. The capillary type thermostat features a smooth round copper probe with a capillary length of 1500 mm, allowing accurate sensing and response.

It incorporates an automatic reset function and is designed in the EM series for flush mounting, which facilitates clean installations within control panels. The solder tab terminal type provides robust electrical connections for long-term dependability.

Designed for safety-critical applications, this thermostat complies with numerous international standards and certifications, such as UL 353, CSA-22.2 No. 24, DIN EN ISO 13849-1, UL 873, DIN EN 14597, EN 50155 for railway use, and PED 2014/68/EU. This guarantees its suitability for stringent industrial uses, including automation, HVAC, manufacturing, and transportation sectors.

The device serves multiple functions including safety temperature monitoring, limiting, and controller roles, enhancing system protection against overheating or unsafe temperature conditions.

Manufactured in France, this product meets high-quality standards and reliability expectations for industrial applications requiring effective thermal management. Capillary thermostat with automatic reset provides reliable safety temperature monitoring.

Maximum operating temperature up to +200°C suitable for various industrial applications. Minimum operating temperature is +50°C ensuring stable operation in typical environments. Features solder tab terminal type for secure and durable electrical connections.

Complies with multiple safety and quality standards including UL 353, CSA-22.2 No. 24, DIN EN ISO 13849-1, and PED 2014/68/EU. Panel mount design facilitates easy installation and integration into control systems. Includes a smooth round copper probe and 1500 mm capillary length for precise temperature detection.

Functions as safety temperature limiter, monitor, and controller all in one unit. Explore comprehensive safety temperature monitoring solutions and panel mount Thermostats at EnvMart for industrial and commercial applications.
