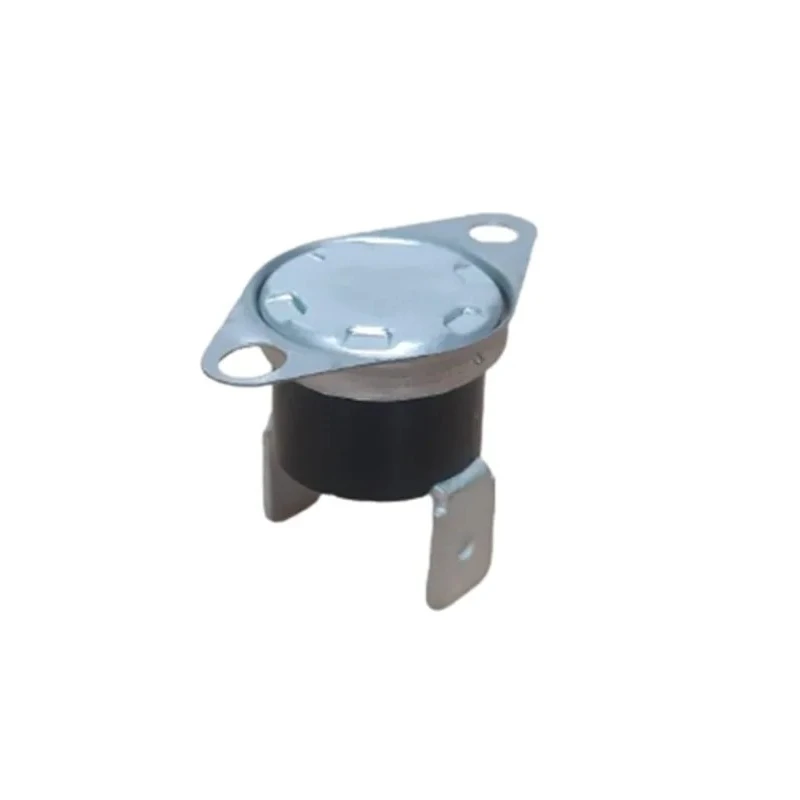

RS PRO Bi-Metallic Thermostat, Closes at 55 °C, +150 °C Max NC, Automatic Reset, 16 A, Fixed Mount 222-8229

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Bi-Metallic Thermostat, Closes at 55 °C, +150 °C Max NC, Automatic Reset, 16 A, Fixed Mount 222-8229

Name: RS PRO Bi-Metallic Thermostat, Closes at 55 °C, +150 °C Max NC, Automatic Reset, 16 A, Fixed Mount 222-8229
Brand: RS PRO
SKU: 171244
Price: 4.49 USD
Availability: InStock



Category Thermostatic Switches Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	222-8229
Mount Type	Fixed
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	0°C
Terminal type	Tab
Thermostat Type	Bi-Metallic
Standards/Approvals	UL/cUL, ENEC17, CQC
Contact DC Voltage	250V dc
Contact AC Voltage	250V ac
Contact Current	16A
Reset Type	Automatic
Switch Function	NC
Closing Temperature	55°C

Key Features

Closes at 55 °C with a maximum operating temperature of +150 °C.
Features a bi-metallic temperature-sensitive disc for rapid and reliable switching.
Rated for 16 A contact current with 250 V AC/DC voltage capability.
Fixed mount design with tab terminal type for secure installation.
Automatic reset function enhances safety by restoring operation after cooling.
Suitable for applications such as coffee machines, heating systems, boilers, and smoke detectors.
Compact size of approximately 12.4 mm height ensures compatibility with various appliance designs.
Conforms to UL/cUL, ENEC17, and CQC standards for quality and safety assurance.

Product Description

RS PRO 222-8229 Bi-Metallic Thermostat NC Automatic Reset is a high-quality thermostatic switch designed to regulate and manage temperature in a wide range of electrical appliances and industrial equipment. Featuring a bi-metallic disc actuator, this thermostat provides precise and rapid response when the ambient or surface temperature reaches the set closing point of 55 °C, withstanding maximum temperatures up to +150 °C.

This thermostat is ideal for use in devices such as coffee machines, smoke detectors, heating systems, and boilers, offering reliable temperature control and protection against overheating. Its compact 12.4 mm height and fixed mounting with tab terminals enable easy replacement or new installations in existing or custom designs.

Rated for a contact current of 16 A and suitable for both AC and DC voltages up to 250 V, it provides robust electrical performance with automatic reset for enhanced operational safety and convenience. The device features thermally and electrically isolated contacts, ensuring safe operation in demanding conditions.

The RS PRO 222-8229 thermostat complies with UL/cUL, ENEC17, and CQC safety standards, delivering certified quality for industrial and commercial applications in sensing instrumentation, HVAC, automotive, and computing devices.

Closes at 55 °C with max operating temperature of +150 °C. Bi-metallic temperature sensing with snap action response. 16 A contact current and 250 V AC/DC voltage rating. Fixed mount with tab terminals for secure installation.

Automatic reset mechanism for safe temperature management. Compact and versatile for appliance and industrial use. Conforms to international safety standards UL/cUL, ENEC17, and CQC. Manufactured in China with quality assurance.

This RS PRO thermostat switch is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electrical temperature regulation applications. It helps protect devices from temperature induced damage while ensuring continuous operation and control.

Explore additional Thermostatic Switches and temperature sensors in the Electronics & Electricals category at EnvMart for comprehensive temperature management solutions.
