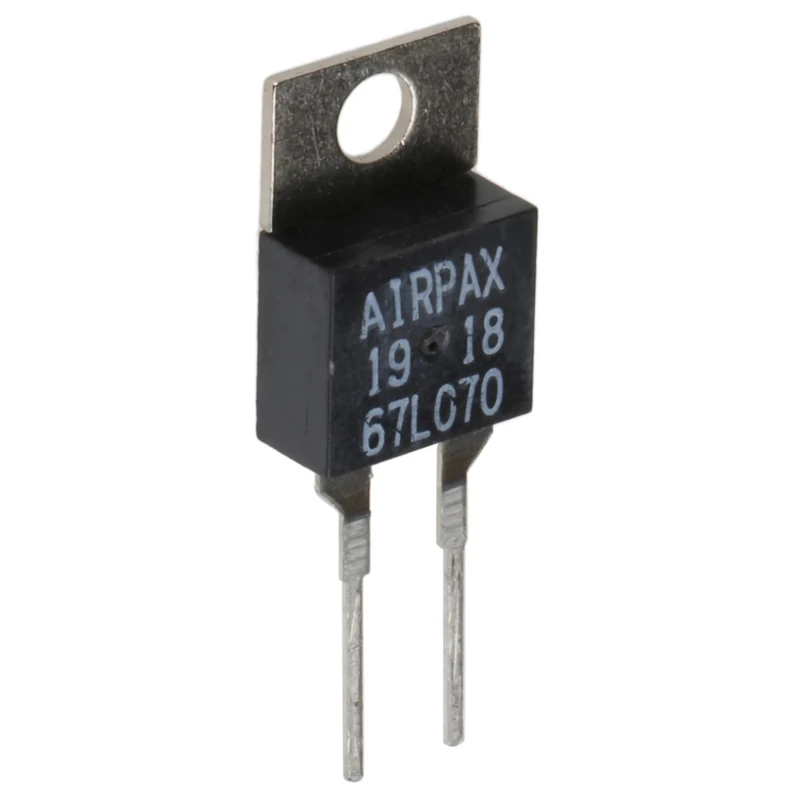

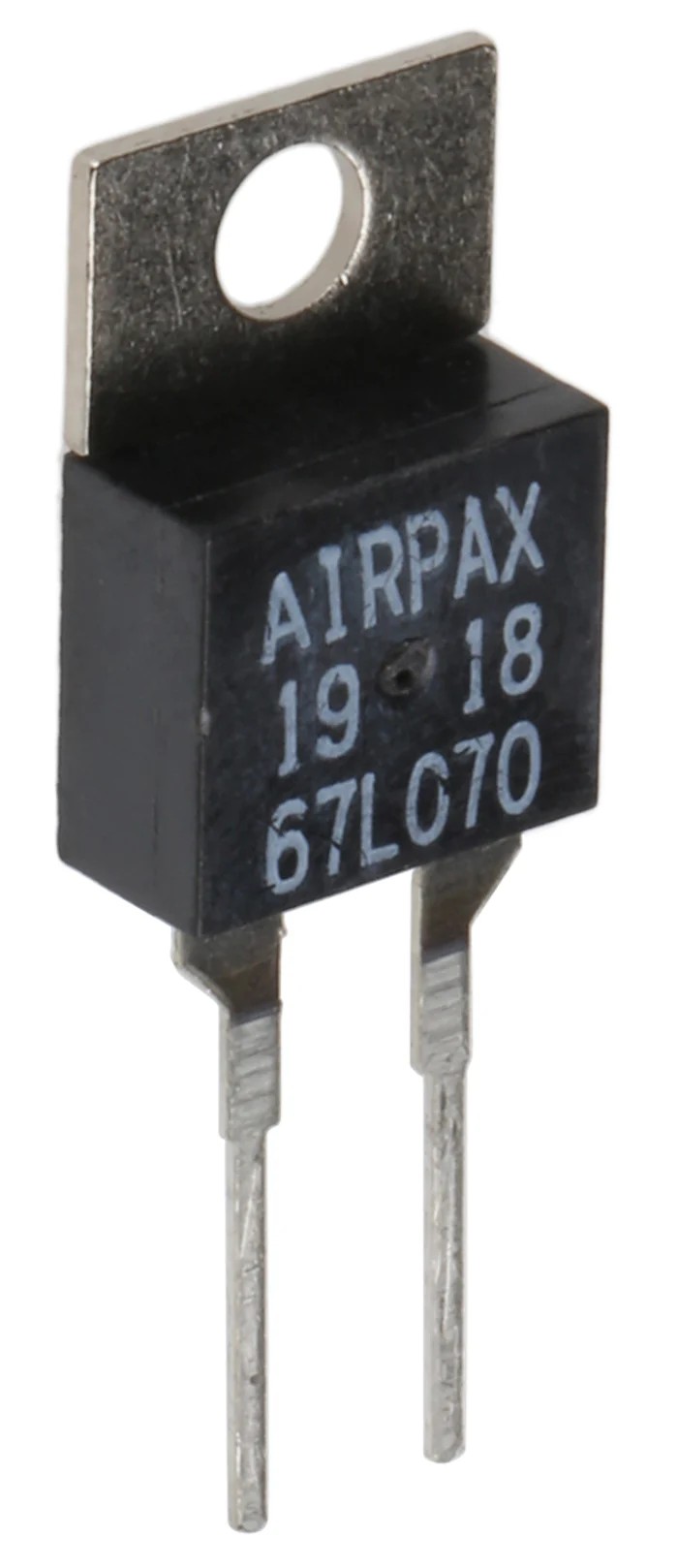

Airpax Bi-Metallic Thermostat 130°C Max NC, Automatic Reset, 0.5A, PCB Terminal 67L070

Airpax 67L070 bi-metallic thermostat is designed specifically for precise temperature control applications with a maximum temperature rating of 130°C. It features a normally closed (NC) contact configuration with an automatic reset type, making it ideal for protecting circuits from overheating in electrical and industrial environments.

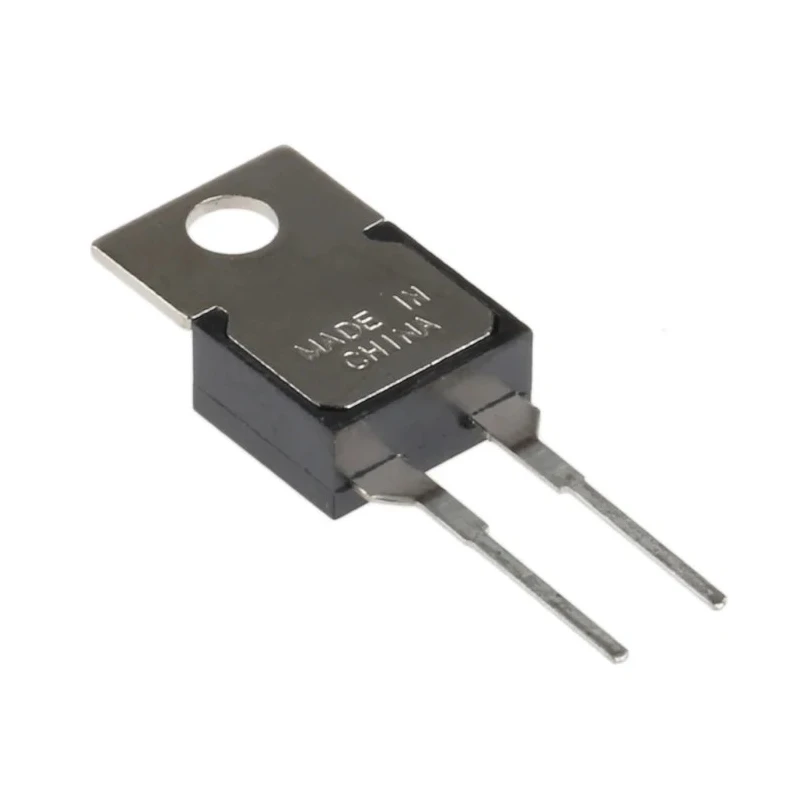

This thermostat is mounted via PCB terminals and enclosed in a compact TO-220 style housing, suitable for integration into printed circuit boards. The device operates reliably up to 48 V AC or DC supply voltages and supports a contact current capacity of 0.5 A.

The bi-metallic mechanism ensures a rapid response to temperature changes with an accuracy tolerance of ±5°C, supported by a low contact resistance of 20 milliohms to minimize power loss.

Engineered for long service life, the thermostat endures 100,000 operating cycles at 5 V DC / 20 mA and 38,000 cycles at 48 V DC / 1 A, ensuring consistent performance over extended periods. The 5.08 mm spacing between leads facilitates straightforward PCB installation.

This RoHS-compliant product originates from China and is suitable for a variety of industrial applications, including electronics manufacturing, HVAC systems, automation equipment, and safety devices.

Designed for use with PCB mounting using PCB terminals. Suitable for AC and DC voltages up to 48V with contact current rating of 0.5 A. Miniature TO-220 housing with robust thermal switching performance. Offers tolerance of ±5°C and low contact resistance of 20mΩ.

Durability supported by 100,000 cycles at 5 V DC / 20 mA and 38,000 cycles at 48 V DC / 1 A. Spacing between leads measures 5.08 mm, ensuring easy PCB installation. Compliant with RoHS standards and free from hazardous area certification requirements.
