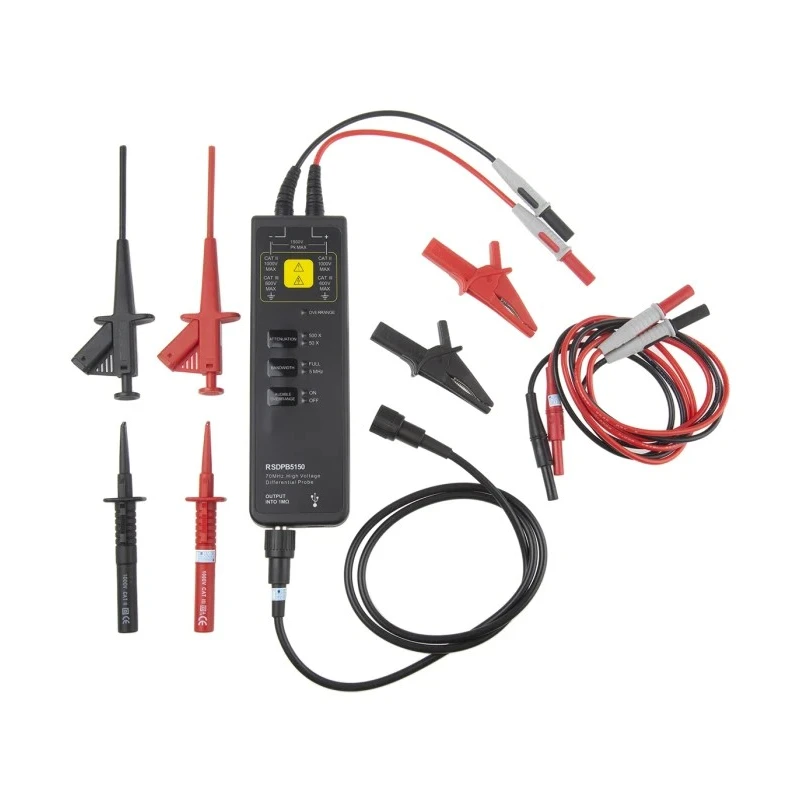

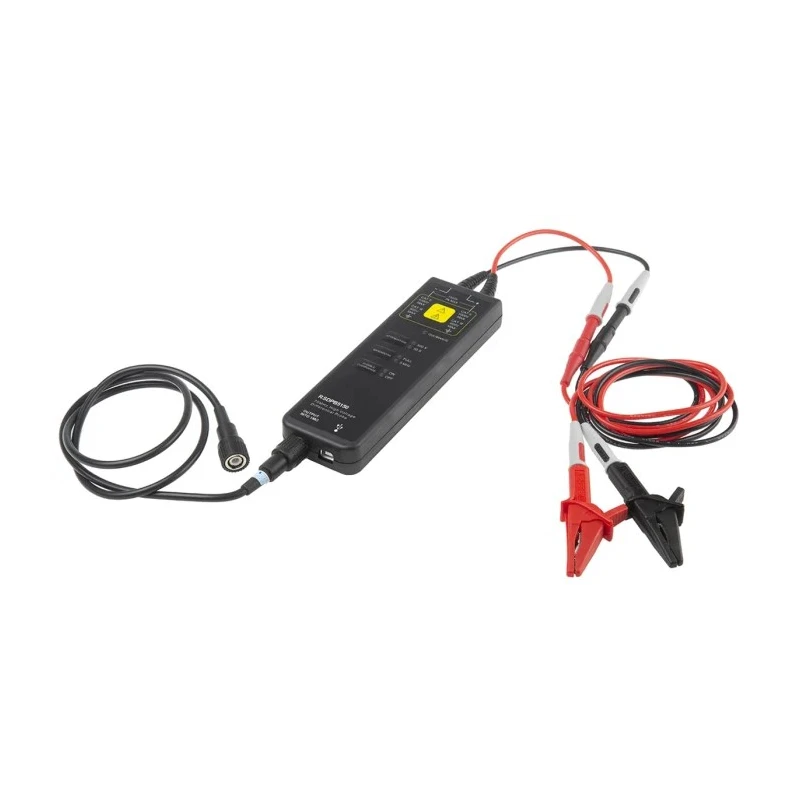

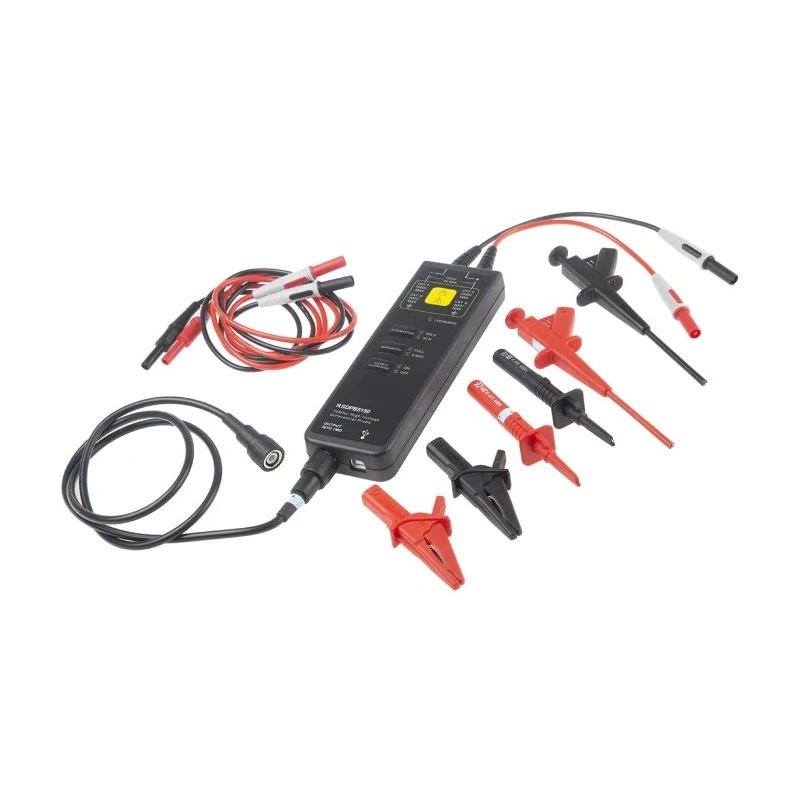

Teledyne LeCroy Oscilloscope Differential Probe 70 MHz, BNC Connector RSDPB5150
Specifications
| Country of Origin | China |
|---|---|
| Brand | Teledyne LeCroy |
| Model | RSDPB5150 |
| Connector Type | BNC |
| Bandwidth | 70MHz |
| Input Impedance | Single-ended to ground 5 MΩ, two inputs 10 MΩ |
| Probe type | Differential |

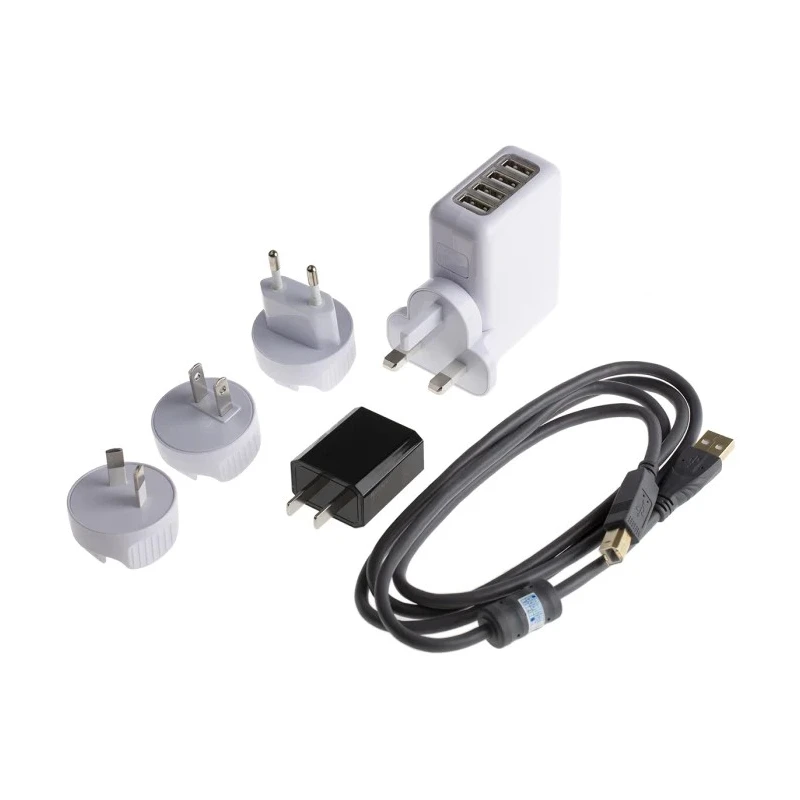

| Interfaces | USB 5 V/1 A adapter |
| Rise Time | 5ns |
| Bandwidth Limit | ≥ -3 dB @ 5 MHz |
| Body Dimensions | 195 x 65 x 28 mm |
| Number of Probes | 1 |
| Standards/Approvals | CE: EN500811 and 500821, IEC 10101 |
| Safety Category Level | CAT III, CAT II, ARM Cortex |
| Maximum Common Mode Input Voltage | 1.5kV |
| Standards/Approvals CE | EN500811 and 500821, IEC 10101 |
| Maximum differential test voltage (DC + Peak AC) 50 X | 150 V, 500 X: 1500 V |
| Differential overvoltage detection level 50 X | ≥150 V, 500 X: ≥1500 V |
| CE | EN500811 and 500821, IEC 10101 |
| RS PRO Oscilloscope Probe, Differential, Active Type, 25 MHz, BNC ConnectorBrand | RS PRO |
Key Features
- 70 MHz bandwidth for precise differential signal measurements.
- Compatible with standard BNC connector-equipped oscilloscopes.
- Designed for applications requiring high common-mode rejection and reduced probe loading.
- Maximum differential voltage capability up to 1500 V depending on attenuation setting.

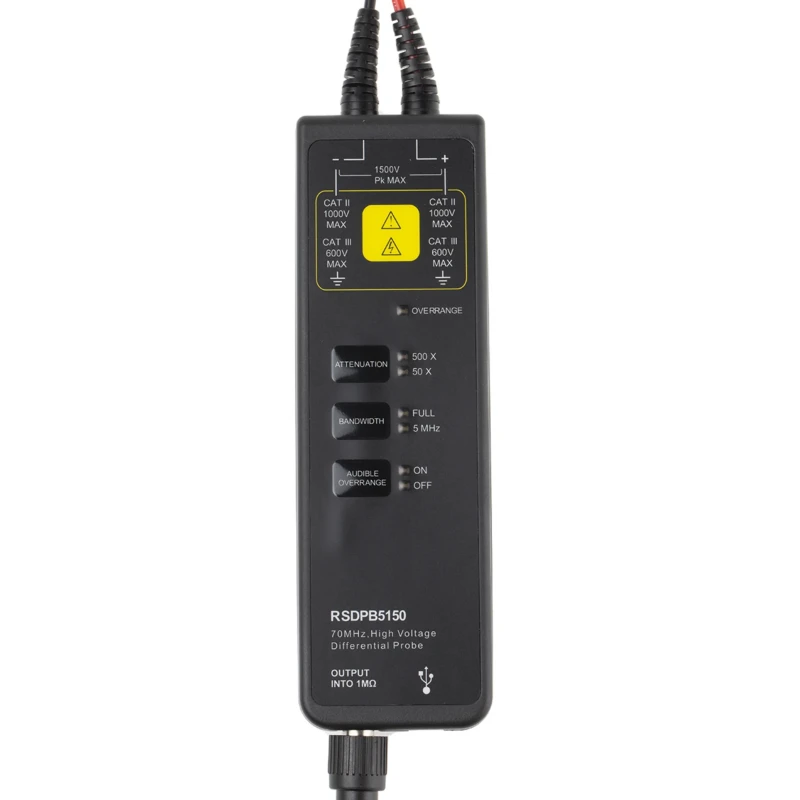

- Includes overload detection, automatic save, and offset setting functions for safety and convenience.
- Suitable for frequency conversion, power electronics, inverter and UPS testing.
- Robust build with probe body dimensions of 195 x 65 x 28 mm and approximately 188 g weight.
Product Description
RS PRO RSDPB5150 Oscilloscope Differential Probe is engineered for advanced signal analysis in research, development, and industrial environments. This high voltage differential probe features a 70 MHz bandwidth, enabling precise measurements of differential signals and offering enhanced noise rejection compared to single-ended probes.
The probe's compatibility with BNC connectors makes it ideal for integration with a wide range of oscilloscopes commonly used in laboratories, manufacturing facilities, and maintenance departments. With selectable attenuation ratios of 50X/500X and a maximum differential voltage capacity up to 1500 V, users can safely analyze high-voltage signals while maintaining signal integrity.
70 MHz bandwidth for clear differential waveform analysis. BNC connector ensures broad oscilloscope compatibility. Maximum differential voltage (DC + Peak AC): 50X: 150 V, 500X: 1500 V. Maximum common-mode input voltage of 1.5 kV provides versatility for challenging industrial conditions.
Input impedance: single-ended to ground 5 MΩ, two inputs 10 MΩ, minimizing loading effects. Safety features include overload detection level, indicator light, and automatic save functionality. Rise time ≤ 5 ns supports fast transient analysis in electronic circuits.
This probe supports safe and reliable floating voltage measurements in frequency converter designs, power electronics development, motor-driven systems, and electronic ballast circuitry. It is also well-suited for experiments in electrical engineering, low voltage appliance testing, and drive system development.
The RS PRO RSDPB5150 delivers high common-mode rejection, accurate measurement, and ease of use for engineers, researchers, and technical professionals. Its compact, robust body (195 x 65 x 28 mm, approx. 188 g) ensures practicality in laboratory settings and demanding industrial sites.
Typical applications include frequency converters, switching power supplies, inverter and UPS testing, CRT display analysis, and power conversion design.
For additional options, RS PRO offers a comprehensive selection of probes and accessories for oscilloscopes and industrial signal testing. Explore the full range of Oscilloscope Probes and Test & Measurement Instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RSDPB5150 has a bandwidth of 70 MHz, enabling precise measurements of differential signals.
It has a maximum differential voltage capability of up to 1500 V, depending on the attenuation setting.
The probe uses a BNC connector, ensuring compatibility with a wide range of oscilloscopes.
The input impedance is 5 MΩ for single-ended to ground and 10 MΩ for two inputs, minimizing loading effects.
It includes overload detection, an indicator light, and automatic save functionality for enhanced safety during use.
The rise time is ≤ 5 ns, which supports fast transient analysis in electronic circuits.
The maximum common-mode input voltage is 1.5 kV, providing versatility for various applications.
The probe has dimensions of 195 x 65 x 28 mm and weighs approximately 188 g.
It is suitable for applications such as frequency conversion, power electronics, inverter and UPS testing, and low voltage appliance testing.
The probe features selectable attenuation ratios of 50X and 500X, allowing for safe analysis of high-voltage signals.
It meets CE standards EN500811 and 500821, and IEC 10101, ensuring compliance with safety regulations.
The package includes one differential probe.
