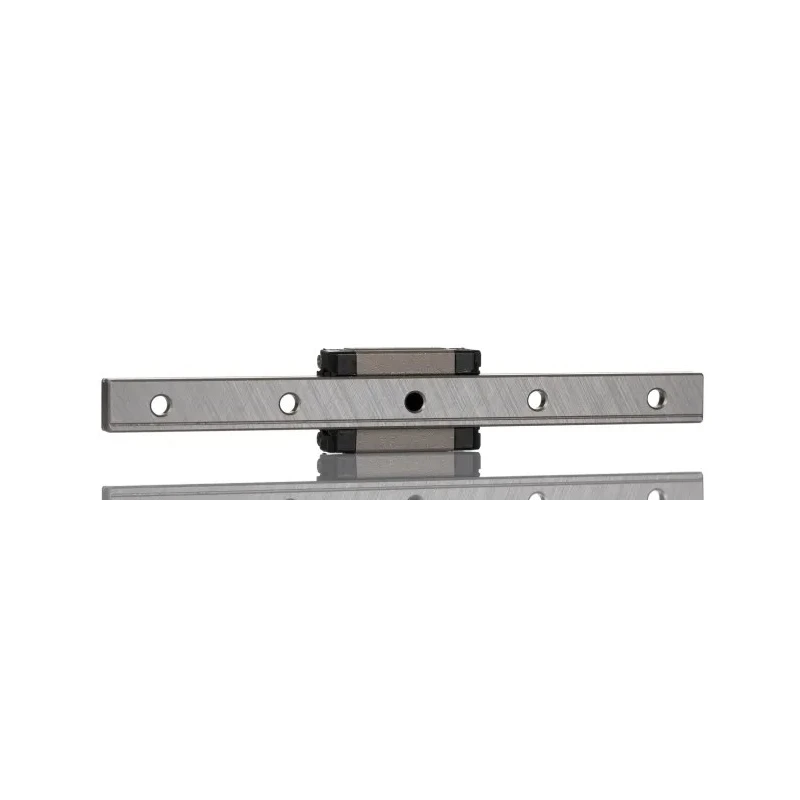

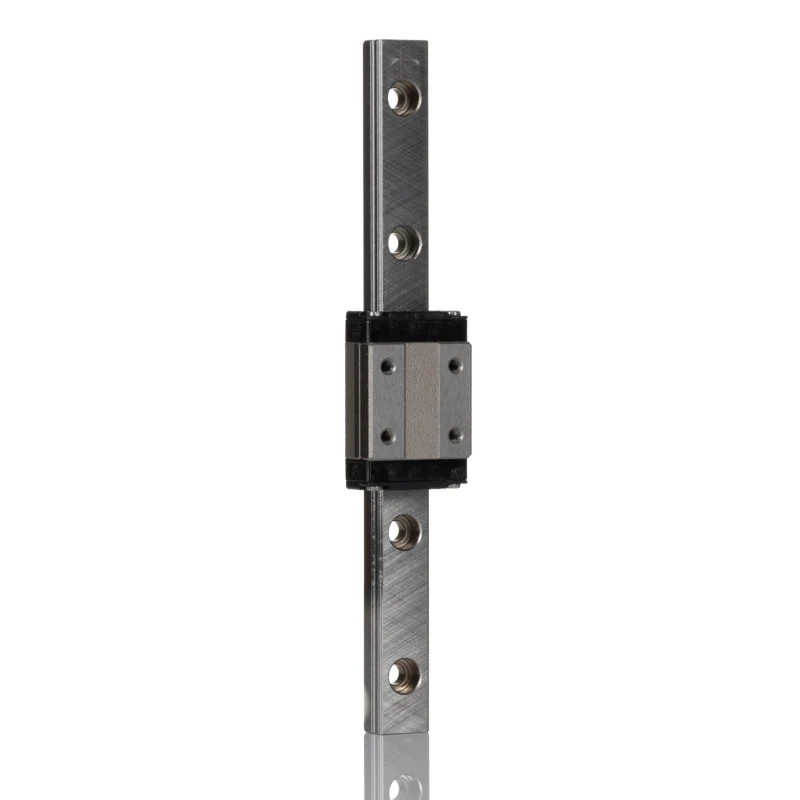

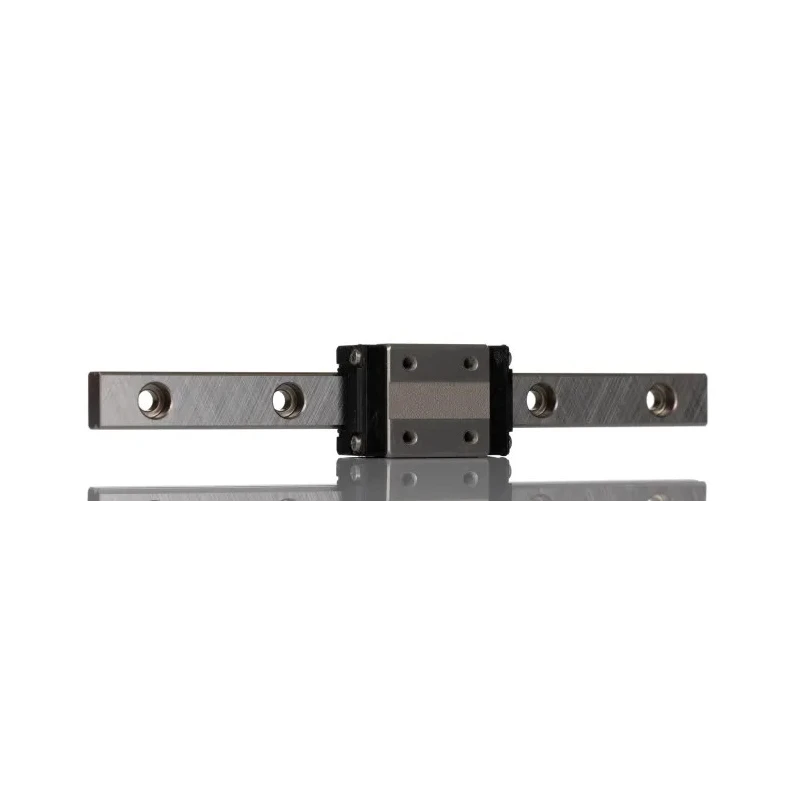

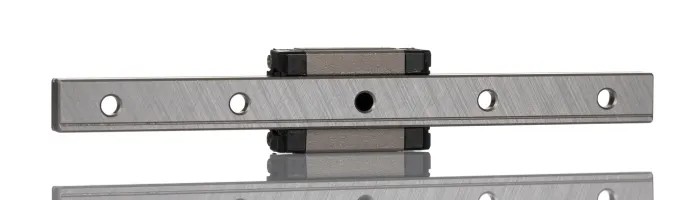

NSK Linear Guide Compact Series LH with Pre-Fitted Carriage, Carbon Steel Rail, Dynamic Load Rating LH100120ANK1B01PN1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | NSK |
| Model | LH100120ANK1B01PN1 |
| Series | LH |
| Static Load Rating | 3.92kN |
| Dynamic Load Rating | 1.86kN |
| Rail Width | 10mm |
| Rail Length | 120mm |
| Carriage Length | 31mm |
| Carriage Width | 20mm |
| Rail Material | Carbon Steel |
| NSK Linear Guide LH100220ANK1B01PN1, LHBrand | NSK |
Key Features
- The compact LH series features a carbon steel rail with 120mm length.
- The carriage measures 31mm length and 20mm width for stability and load distribution.
- Dynamic load rating of 1.86kN and static load rating of 3.92kN ensure durability under impact loads.
- This linear guide is highly corrosion resistant with martensitic stainless steel as standard.
- The design includes a ball cage that retains balls when the carriage is removed from the rail.
- Manufactured in the United Kingdom to NSK quality standards.
Product Description
NSK LH100120ANK1B01PN1 Linear Guide Compact Series LH is engineered for industrial applications requiring precise linear motion control and high load capacity. This linear guide features a carbon steel rail measuring 120mm in length and 10mm in width, combined with a carriage width of 20mm and length of 31mm. The compact design includes a pre-fitted carriage that offers excellent self-aligning capability, allowing for high vertical load capacity and resistance to impact loads encountered in industrial machinery.
The LH series uses martensitic stainless steel for superior corrosion resistance, making it suitable for demanding environments. The ball cage design within the 10mm and 12mm versions retains the balls securely even when the carriage is removed from the rail, ensuring ease of maintenance and reliability during operation.
With a dynamic load rating of 1.86kN and a static load rating of 3.92kN, this linear guide supports robust industrial usage in manufacturing, automation systems, mechanical machinery, and other linear motion applications. Made in the United Kingdom, the product conforms to high manufacturing standards typical of NSK components.
The compact LH series provides a pre-fitted carriage for simplified installation and alignment. The carbon steel rail delivers structural strength for demanding load conditions. High dynamic and static load ratings ensure long service life under heavy and impact loads.
Corrosion-resistant martensitic stainless steel construction enhances durability in harsh environments. Ball cage retention system increases reliability during carriage removal and maintenance. Ideal for use in industrial automation, manufacturing equipment, and precise linear motion mechanisms.
Explore more NSK linear guide solutions and mechanical machinery spares for tailored industrial needs within the EnvMart platform.
Explore more products in our Linear Guide Rail category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating is 1.86kN, while the static load rating is 3.92kN.
The rail has a length of 120mm and a width of 10mm. The carriage measures 31mm in length and 20mm in width.
The rail is constructed from carbon steel, providing structural strength for demanding load conditions.
The ball cage design retains the balls securely even when the carriage is removed from the rail, facilitating ease of maintenance.
It is manufactured in the United Kingdom to NSK quality standards.
This linear guide is suitable for industrial automation, manufacturing equipment, and precise linear motion mechanisms.
The compact design includes a pre-fitted carriage that offers excellent self-aligning capability and high vertical load capacity.
It is suitable for demanding environments due to its corrosion-resistant martensitic stainless steel construction.
The pre-fitted carriage simplifies installation and alignment, enhancing operational efficiency.
The rail width is 10mm.
The high dynamic and static load ratings, along with the corrosion-resistant materials, contribute to its durability under heavy and impact loads.
The model number is LH100120ANK1B01PN1.
