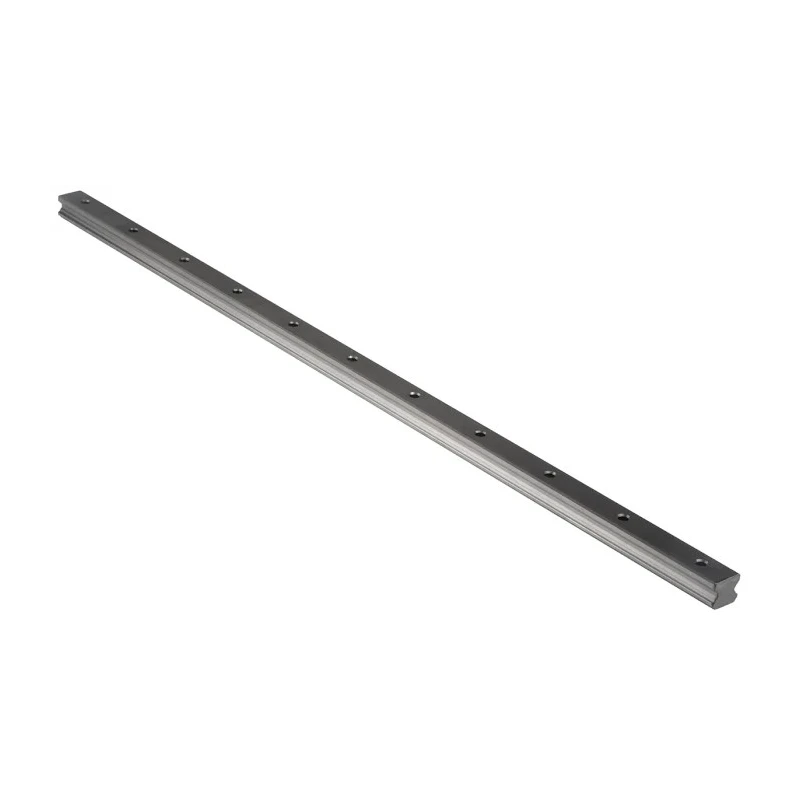

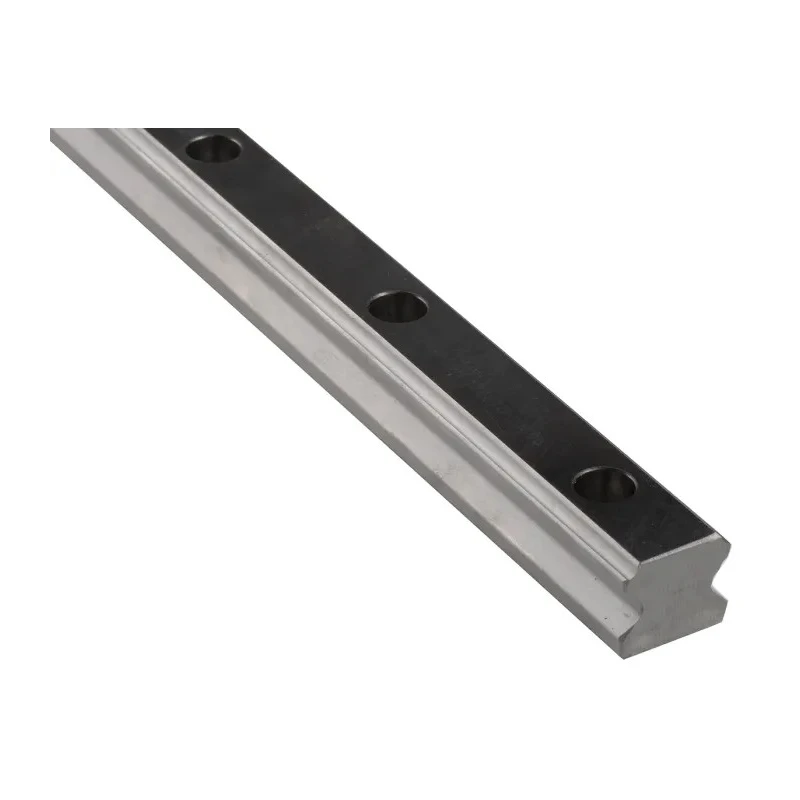

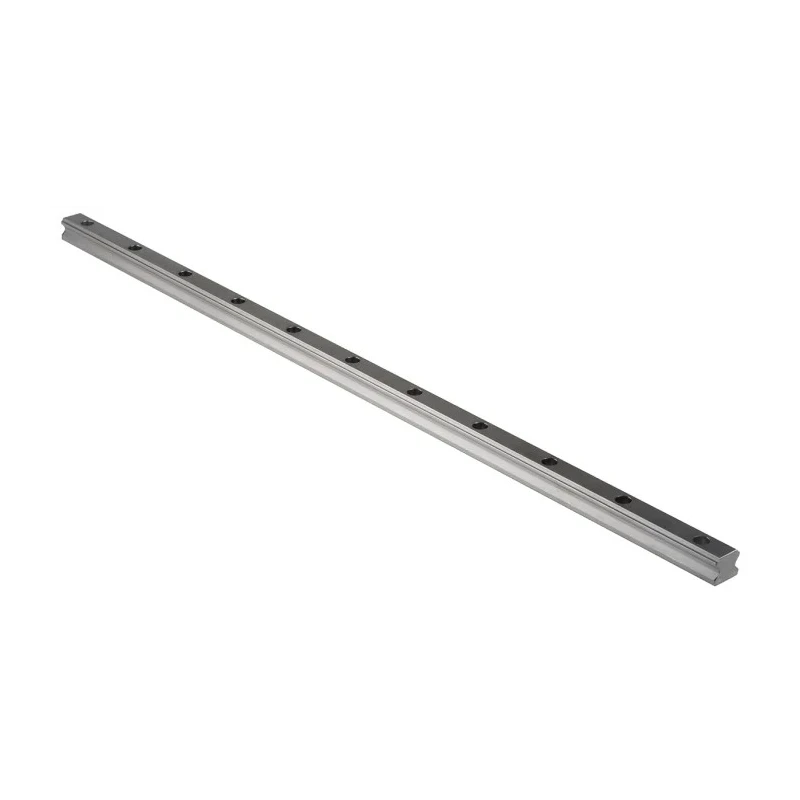

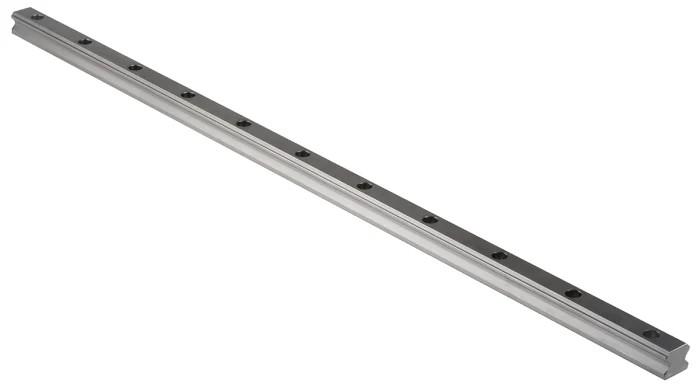

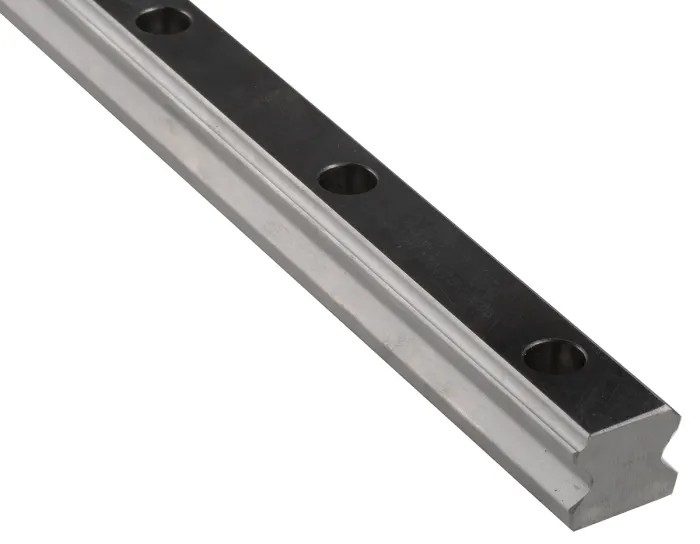

RS PRO HG Series Linear Guide Rail 20 mm Width 640 mm Length 17750N Dynamic Load Rating 27760N Static Load Rating 176-6693
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | S55C Carbon Steel |
| Model | 176-6693 |
| Series | HG |
| Static Load Rating | 27760N |
| Dynamic Load Rating | 17750N |
| Rail Width | 20mm |
| Rail Length | 640mm |
| THK SR20 Series, SR20-640L(GK), Linear Guide Rail 20 mm width 640 mm LengthBrand | THK |
Key Features
- The rail is manufactured from S55C carbon steel, ensuring durability and strength.
- Dynamic load rating is 17,750 N, supporting high-load operations.
- Static load rating stands at 27,760 N for excellent stability under stationary loads.
- The design incorporates four ball bearing paths for smooth, light running performance.
- Ball circulation and retainers prevent ball bearing fall-out during installation and operation.
- Ideal for industrial linear motion applications demanding high accuracy and rigidity.
- Made in Taiwan, Province of China, conforming to standard manufacturing practices.
Product Description
RS PRO 176-6693 Linear Guide Rail is a precision-engineered component designed to provide high rigidity and load-bearing capacity for a variety of industrial linear motion systems. Featuring a rail width of 20 mm and a length of 640 mm, this HG series guide rail is constructed from high-quality S55C carbon steel, combining strength with durability.
This linear guide rail supports a dynamic load rating of 17,750 N and a static load rating of 27,760 N, making it suitable for heavy-duty applications in manufacturing, automation, and mechanical industries. The ball circulation system with four ball bearing paths ensures smooth motion with reduced friction, enhancing operational efficiency and lifespan.
Special ball retainers prevent bearing fall-out during installation or when the block is removed from the rail, maintaining system integrity. This product serves as a vital component in machinery requiring precise linear motion, such as CNC machines, robotic arms, and industrial assembly lines.
Manufactured in Taiwan, Province of China, the RS PRO HG Series Linear Guide Rail is a dependable choice for demanding industrial environments seeking performance and longevity. The rail is manufactured from S55C carbon steel, ensuring durability and strength.
Dynamic load rating is 17,750 N, supporting high-load operations. Static load rating stands at 27,760 N for excellent stability under stationary loads. The design incorporates four ball bearing paths for smooth, light running performance.
Ball circulation and retainers prevent ball bearing fall-out during installation and operation. Ideal for industrial linear motion applications demanding high accuracy and rigidity. Made in Taiwan, Province of China, conforming to standard manufacturing practices.
This linear guide rail is notably utilized in industrial automation, manufacturing machinery, laboratory equipment, and mechanical systems requiring precise and reliable linear movement. Its robust construction and advanced design make it an indispensable component within the bearings and linear motion categories.
Explore more heavy-duty Linear Guide Rails with similar specifications or consider the broader RS PRO range for complementary mechanical components available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this linear guide rail is 17,750 N, while the static load rating is 27,760 N.
This model has a length of 640 mm and a width of 20 mm.
It is manufactured from S55C carbon steel, which provides strength and durability.
The design incorporates four ball bearing paths that ensure smooth motion and reduce friction, enhancing operational efficiency.
It is ideal for industrial applications requiring precise linear motion, such as CNC machines, robotic arms, and assembly lines.
This product is manufactured in Taiwan, Province of China.
Special ball retainers are designed to prevent bearing fall-out during installation or when the block is removed from the rail.
The static load rating of 27,760 N indicates excellent stability under stationary loads, making it suitable for heavy-duty applications.
The primary function is to provide high rigidity and load-bearing capacity for various industrial linear motion systems.
It is designed for demanding industrial environments, particularly in manufacturing and automation sectors.
The linear guide rail conforms to standard manufacturing practices, although specific standards are not detailed.
Key features include its high load ratings, smooth ball circulation system, and robust construction from carbon steel.
