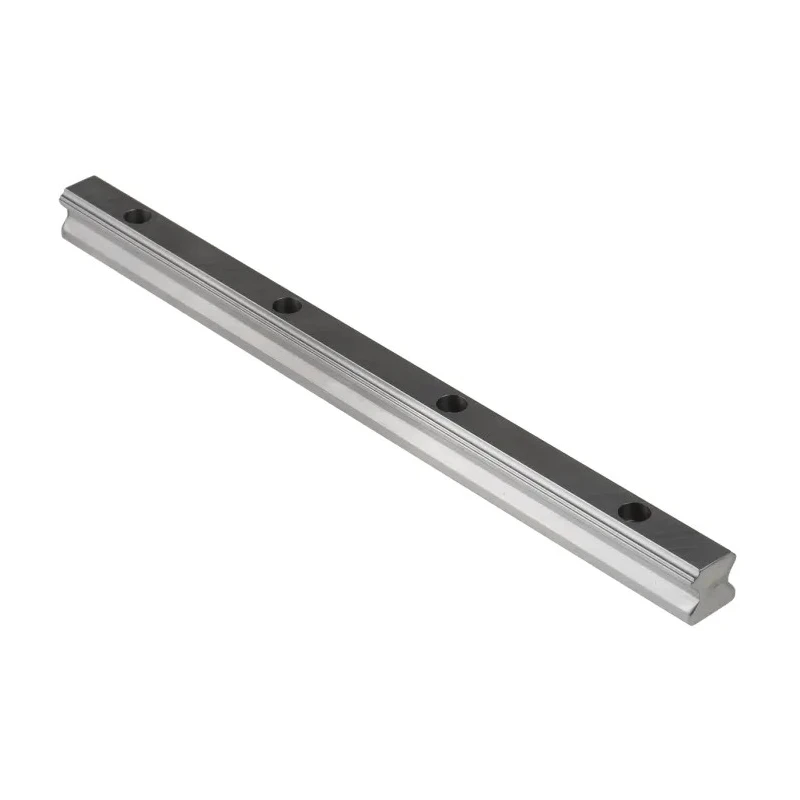

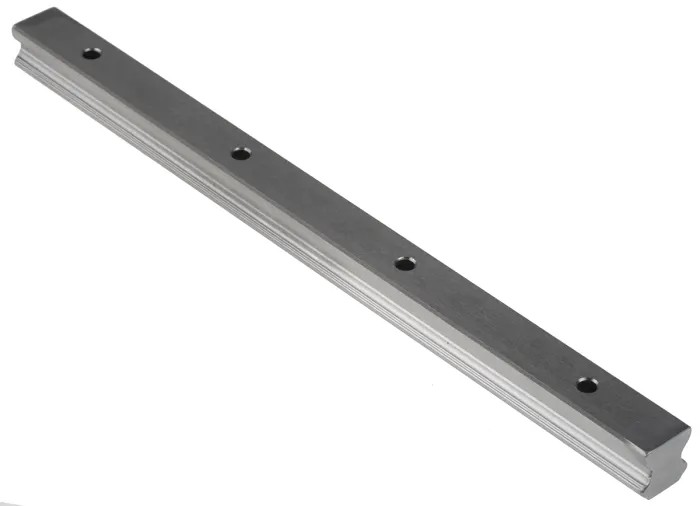

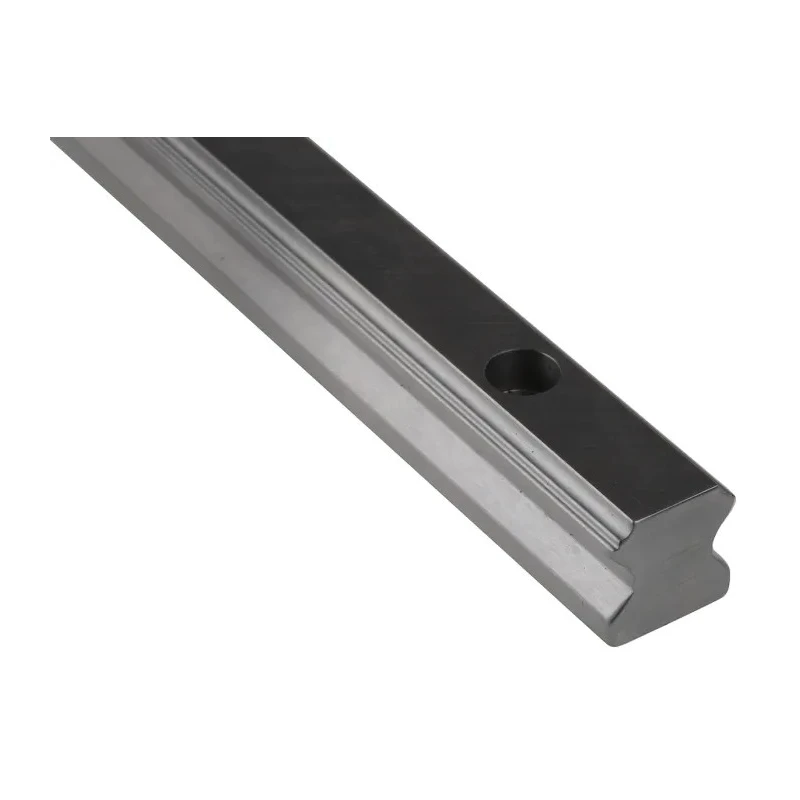

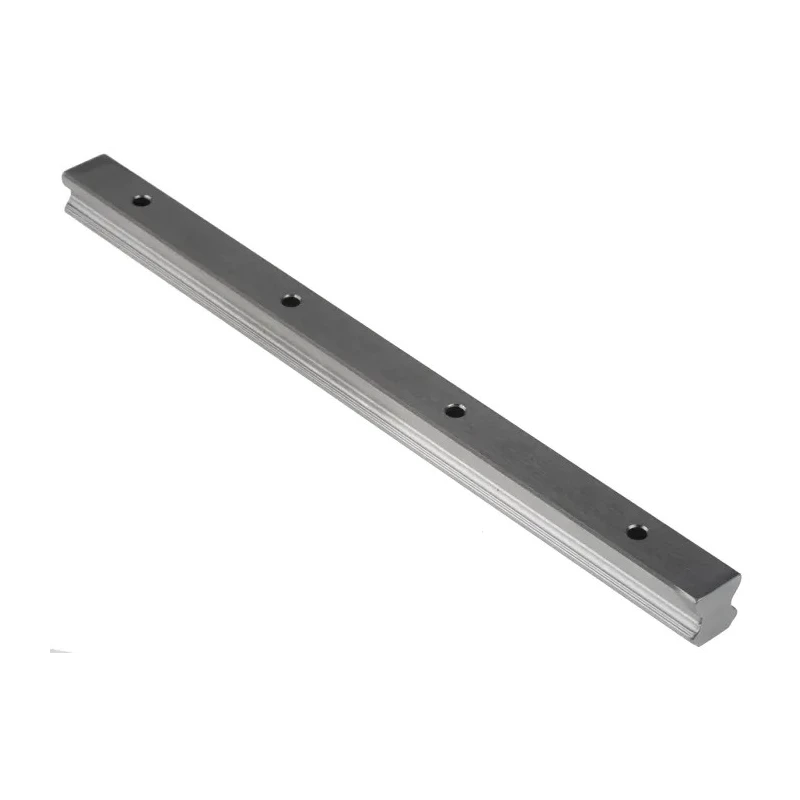

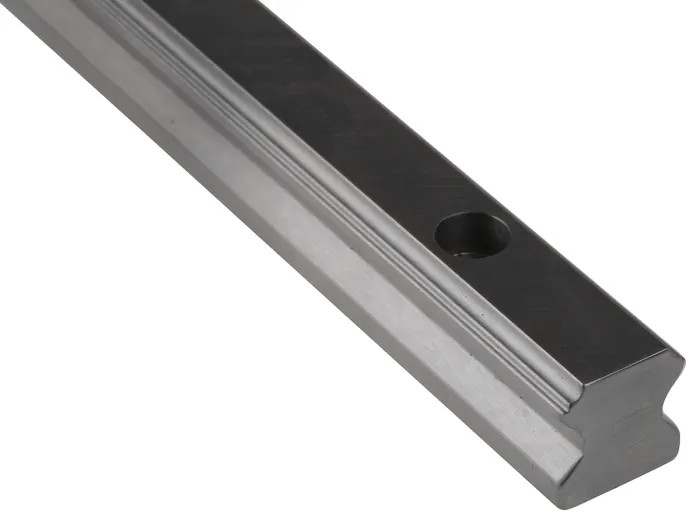

RS PRO HG Series Linear Guide Rail 15 mm Width 230 mm Length 176-6685

The RS PRO 176-6685 Linear Guide Rail from the HG Series is a precision engineered component featuring a 15 mm rail width and a 230 mm rail length. Made from robust S55C Carbon Steel, this linear guide rail is designed for heavy-duty industrial applications requiring high rigidity and performance.

The design incorporates four ball bearing paths which facilitate smooth linear motion with minimal friction. The unique ball circulation system and retainers ensure the bearings remain secure, even during installation or when the block is pulled off the rail.

With a dynamic load rating of 11380N and a static load rating of 16970N, this linear guide rail supports high load capacities, making it suitable for demanding mechanical and manufacturing environments. This product is ideal for use in automation, robotics, CNC machinery, and other industrial systems requiring precise linear motion.

Manufactured in Taiwan, this guide rail meets industry requirements though it does not carry specific approvals or certifications. The RS PRO HG Series Linear Guide Rails are known for their high accuracy and structural rigidity, supporting reliable and long-lasting performance in various industrial applications.

The heavy-duty design ensures optimal performance under high loads. Four ball bearing paths provide smooth and light running. Retainers prevent ball bearings from falling out during installation. High dynamic load rating of 11380N suits demanding industrial applications.

Static load rating of 16970N contributes to excellent rigidity and stability. S55C Carbon Steel construction for durability. Precision linear motion component for industrial automation.

This product is an essential component in linear motion systems found in manufacturing, automation, and robotics sectors. For more technical components, explore the extensive RS PRO range and related mechanical industrial supplies available.
