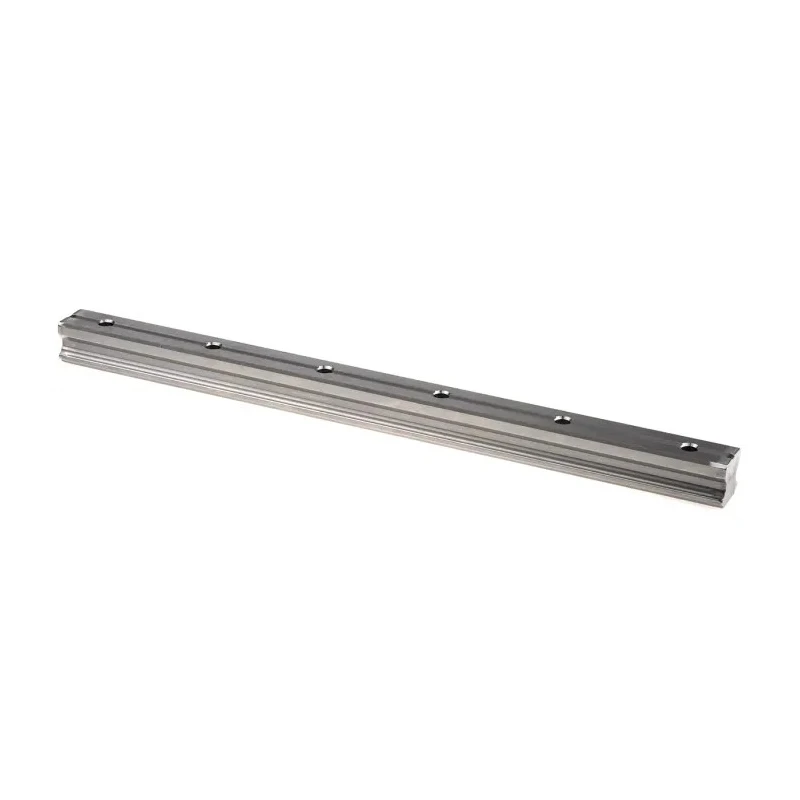

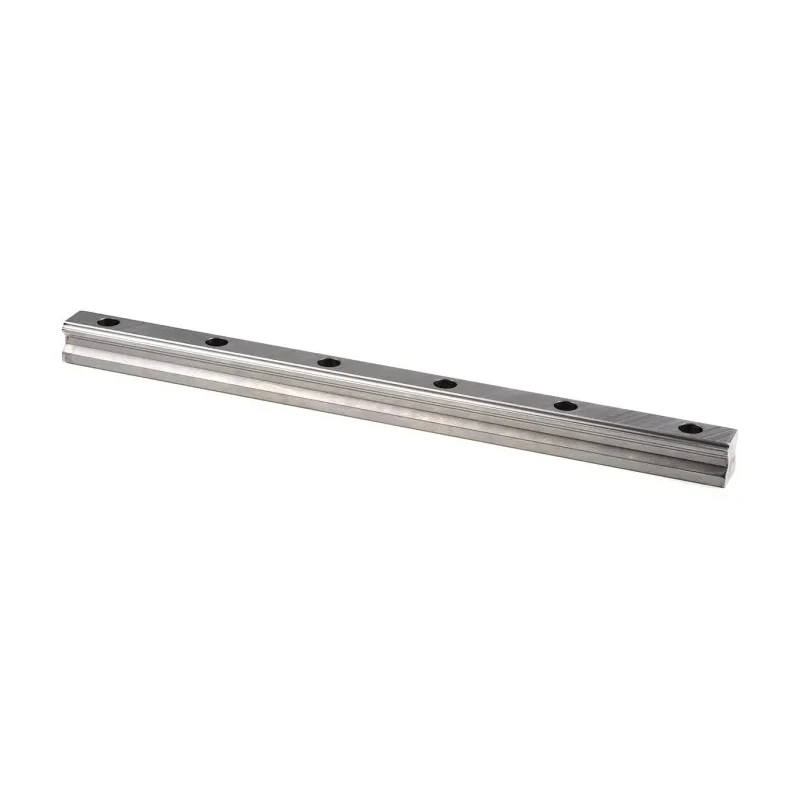

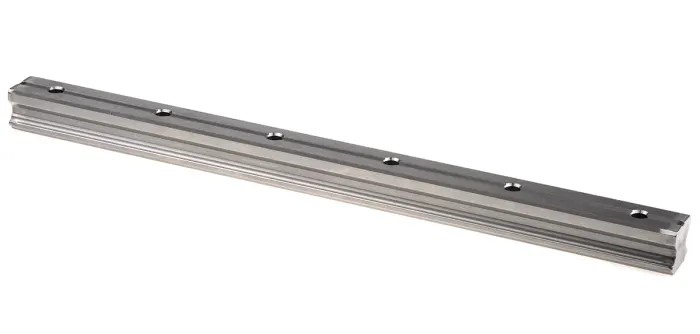

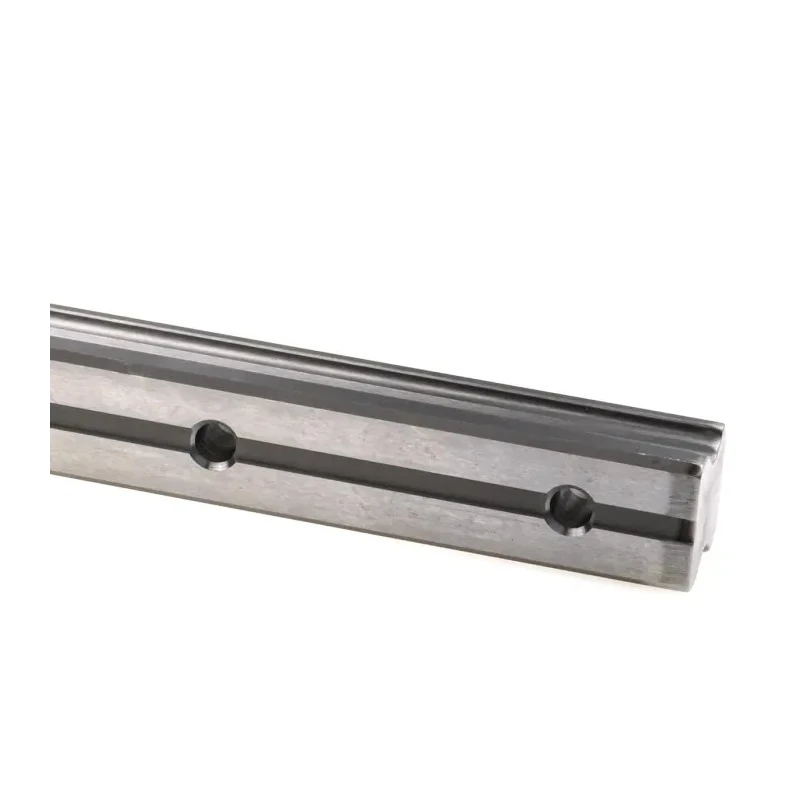

RS PRO Heavy-Duty HG Series Linear Guide Rail 23 mm Width 340 mm Length 176-6696
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | S55C Carbon Steel |
| Model | 176-6696 |
| Series | HG |
| Static Load Rating | 36490N |
| Dynamic Load Rating | 26480N |
| Rail Width | 23mm |
| Rail Length | 340mm |
Key Features
- Constructed from durable S55C carbon steel for strength and wear resistance.
- Features four ball bearing paths to ensure smooth linear motion and light running.
- Dynamic load rating of 26480 N supports heavy operational loads.
- Static load rating of 36490 N provides excellent static rigidity.
- Designed with retainers to prevent ball bearings from falling out during installation.
- Precision-engineered for high accuracy and rigidity in industrial machinery.
- Ideal for use in manufacturing, automation, and mechanical systems requiring precise linear motion.
Product Description
RS PRO 176-6696 is a high-precision HG Series linear guide rail constructed from S55C carbon steel. Measuring 23 mm in width and 340 mm in length, this heavy-duty linear guide rail is engineered to support high loads with excellent rigidity, making it ideal for industrial, manufacturing, automation, and mechanical applications.
The rail incorporates four ball bearing paths facilitating smooth linear motion with minimal friction. The ball circulation system provides light running, while specially designed retainers prevent the ball bearings from falling out, particularly when the block is pulled off the rail during installation, ensuring reliable operation and easy maintenance.
With a dynamic load rating of 26480 N and a static load rating of 36490 N, the RS PRO 176-6696 rail efficiently manages high stress conditions and offers robust performance. Its unique design combines high accuracy and durability, making it the backbone of many linear motion applications across diverse industrial sectors.
The rail is manufactured to no specific formal standards and originates from Taiwan, Province Of China, reflecting quality manufacturing practices. Its construction from carbon steel balances strength and longevity, suitable for demanding operational environments.
Constructed from S55C carbon steel for enhanced durability and corrosion resistance. Designed to handle dynamic loads up to 26480 N and static loads up to 36490 N. Four ball bearing paths ensure smooth and precise linear motion.
Ball retainers prevent bearing loss during installation and maintenance. Heavy-duty design offers rigidity and high accuracy for industrial machines. Length of the rail is 340 mm, width is 23 mm, fitting standard linear motion setups.
Ideal for use in industrial automation, manufacturing equipment, and mechanical machines. Explore more Industrial Tools & Equipment like this in the Linear Guide Rail category on EnvMart for reliable and precision linear motion components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Heavy-Duty HG Series Linear Guide Rail measures 23 mm in width and 340 mm in length.
It has a dynamic load rating of 26480 N, making it suitable for managing high operational loads.
This rail is constructed from S55C carbon steel, which provides strength and wear resistance.
The static load rating is 36490 N, ensuring excellent static rigidity under load.
It features four ball bearing paths that facilitate smooth linear motion with minimal friction.
It is ideal for use in manufacturing, automation, and mechanical systems that require precise linear motion.
The rail is designed with retainers that prevent the ball bearings from falling out during installation, ensuring reliable operation.
This linear guide rail is manufactured in Taiwan, Province Of China.
The combination of four ball bearing paths and a ball circulation system ensures smooth and precise linear motion with light running.
This model belongs to the HG Series of linear guide rails by RS PRO.
The rail is manufactured to no specific formal standards, reflecting quality manufacturing practices.
Its heavy-duty design provides rigidity and high accuracy, making it suitable for demanding operational environments.
