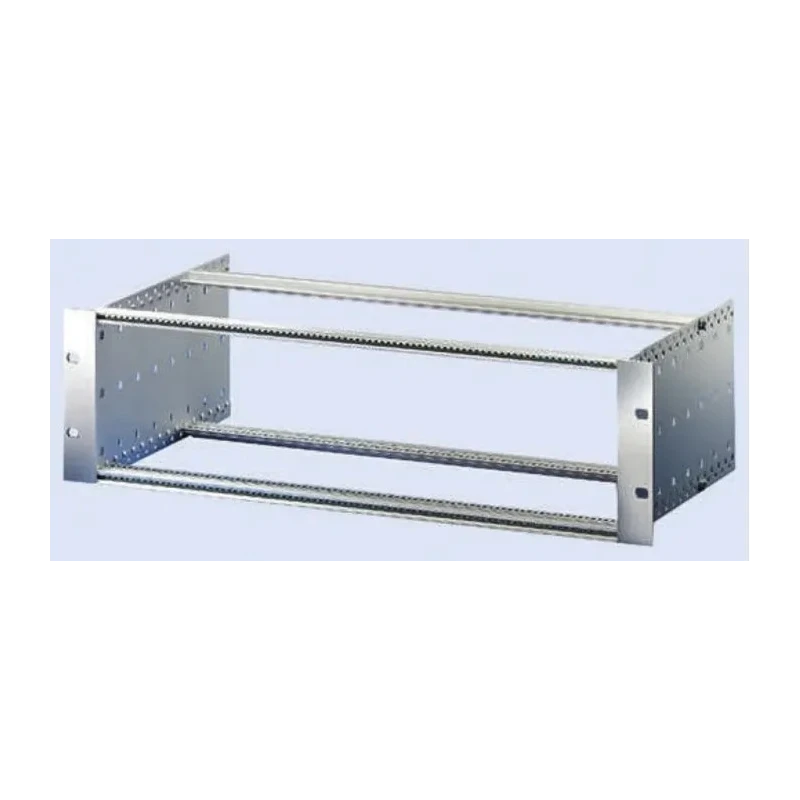

nVent SCHROFF EuropacPRO Series 3 U Stainless Steel, Aluminium Rack Mount Chassis 84 HP 295 mm Depth 24563133

nVent SCHROFF model 24563133 EuropacPRO Series 3 U Rack Mount Chassis is designed for industrial, laboratory, and electronic enclosure applications requiring durable, lightweight aluminium and stainless steel construction.

This 3 U rack chassis offers an 84 HP horizontal pitch and 295 mm depth, compatible with standard 19 inch wide systems widely used across data centers, telecommunications, and industrial automation sectors.

The horizontal rails are anodised aluminium extrusions optimized for efficient airflow and heat dissipation, improving equipment longevity and performance under demanding operational conditions.

Side panels of clear chromate aluminium with a 2.0 mm thickness provide robust protection while maintaining a natural finish that resists corrosion. Electrical contact surfaces are designed to be conductive, ensuring proper earthing per IEC/EN 60950 and related standards.

The chassis complies with multiple standards including IPC-A-610F, IPC J-STD-001F Class 3, VITA 74 VNX, VITA 57.4 FMC+, as well as IEC 60297-3/DIN 41 494-5, reflecting its suitability for high-reliability electronics assembly and sub-rack configurations.

Package contents include four horizontal rails, two side panels, two mounting flanges, four threaded inserts with 6U x 6, two insulating strips with 6U x 4, a rear centre horizontal rail 6U, and an assembly kit for straightforward installation.

The EuropacPRO series is highly flexible, allowing for optional backplane mounting using insulating strips as intermediate layers and compliance with connector standards like IEC 60602-3 / DIN 41612.

This product is manufactured in Germany, providing assurance of stringent quality control and manufacturing precision.

Ideal for use in industrial electronics enclosures, laboratory instrument racks, telecommunications, and manufacturing environments requiring robust and standardized rack solutions.

Explore the extensive range of nVent SCHROFF Rack Mount Chassis and related enclosures at EnvMart for high-performance and reliable hardware mounting solutions. The chassis is constructed from stainless steel and aluminium for strength and corrosion resistance.

It offers a 3 U rack unit size suitable for 19 inch width systems. Horizontal rails are optimized for airflow and heat dissipation. Anodised aluminium extrusions in rails and mounting flanges provide durability. Includes four horizontal rails, two side panels, two mounting flanges, and necessary assembly hardware.

Side panels are clear chromate aluminium with 2.0 mm thickness. Electrical contact surfaces are conductive for proper grounding. Conforms to standards including IPC-A-610F, VITA 74 VNX, and IEC 60297-3/DIN 41 494-5. Manufactured in Germany ensuring high quality and precision.
