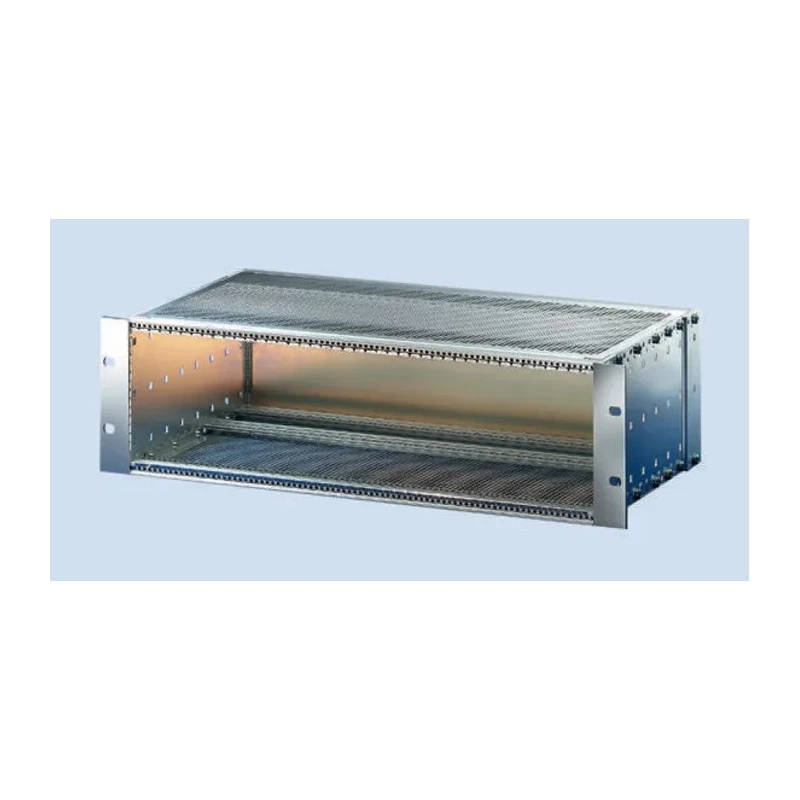

nVent SCHROFF EuropacPRO Series 3 U Rack Mount Chassis Aluminium 84 HP 235 mm Depth 24563142
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | nVent SCHROFF |
| Material | Aluminium |
| Colour | Natural |
| Model | 24563142 |
| Depth | 235mm |
| Series | EuropacPRO |
| Standards/Approvals | RoHS |
| Rack Unit | 3U |
| Horizontal Pitch | 84HP |
| Delivery contents | Six horizontal rails, two side panels, two mounting flanges, six threaded inserts with 6U x 8, two insulating strips with 6U x 4, one horizontal rail centre rear only 6U, two cover plates, one rear panel, one EMC gasket material and one assembly kit |
Key Features
- The chassis features natural colour aluminium for durability and aesthetics.
- It provides typical shielding of 40 dB at 1 GHz with shielded front panels.
- Strengthened horizontal rails offer increased stability and support.
- Complies with multiple standards including IEC 60297-3 and IEC 61587-1 for mechanical stress and earthing.
- The chassis is shock and vibration proof for reliable industrial use.
- Includes comprehensive delivery content for assembly and mounting.
- Suits applications in electrical enclosures, laboratory setups, and industrial rack mounting.
Product Description
nVent SCHROFF 24563142 EuropacPRO Series 3 U Rack Mount Chassis is fabricated from high-quality aluminium with a natural finish. The chassis supports 84 horizontal pitch units (HP) and has a robust 235 mm depth, engineered to meet demanding industrial and commercial rack mounting conditions.
This rack mount chassis features six horizontal rails, two side panels, two mounting flanges, and multiple threaded inserts designed for enhanced stability and mounting flexibility. The aluminium side and rear panels are chromate anodised, ensuring excellent corrosion resistance and mechanical strength.
Providing shielding of approximately 40 dB at 1 GHz frequency, the chassis includes shielded front panels to reduce electromagnetic interference, making it suitable for sensitive electronic equipment environments.
The chassis construction complies with IEC 60297-3/DIN 41 494-5 standards, earthing requirements to IEC 60950, and mechanical stress requirements to IEC 61587-1. Shock and vibration proofing further guarantee durability and reliability in industrial, laboratory, and electrical enclosure applications.
Delivery contents include six horizontal rails, two side panels, two mounting flanges, six threaded inserts with 6U x 8 sizing, two insulating strips with 6U x 4 sizing, one horizontal rail center rear only 6U, two cover plates, one rear panel, an EMC gasket material and a complete assembly kit for immediate installation.
Ideal for a wide range of use cases including installation in server racks, subracks, and electronic enclosure systems where reliable physical support, precise fit, and EMI shielding are required.
The chassis guarantees electrical conductivity at contact surfaces for effective grounding. Material thickness ranges from 0.8 mm to 2.5 mm in key structural panels. Designed for integration with 19" Europac Pro fixing kits (order separately).
Optimized airflow with 4.0 mm perforations and 60% open area supports thermal management. Explore other products in the Rack Mount Chassis category for complementary solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This chassis has a depth of 235 mm and supports a 3U height with 84 horizontal pitch units (HP).
It is fabricated from high-quality aluminium with a natural finish, ensuring durability and aesthetics.
The chassis provides typical shielding of approximately 40 dB at 1 GHz, which helps reduce electromagnetic interference.
It complies with IEC 60297-3 for rack mounting, IEC 60950 for earthing, and IEC 61587-1 for mechanical stress.
The delivery includes six horizontal rails, two side panels, two mounting flanges, six threaded inserts, two insulating strips, a rear panel, cover plates, an EMC gasket material, and an assembly kit.
Yes, it is designed to be shock and vibration proof, making it reliable for industrial applications.
It features optimized airflow with 4.0 mm perforations and a 60% open area to facilitate effective thermal management.
The chassis is manufactured in Germany.
The weight of the chassis is not specified in the provided information.
It is suitable for applications in electrical enclosures, laboratory setups, and industrial rack mounting.
This model includes multiple threaded inserts and mounting flanges for enhanced stability and mounting flexibility.
The aluminium side and rear panels are chromate anodised, providing excellent corrosion resistance.
