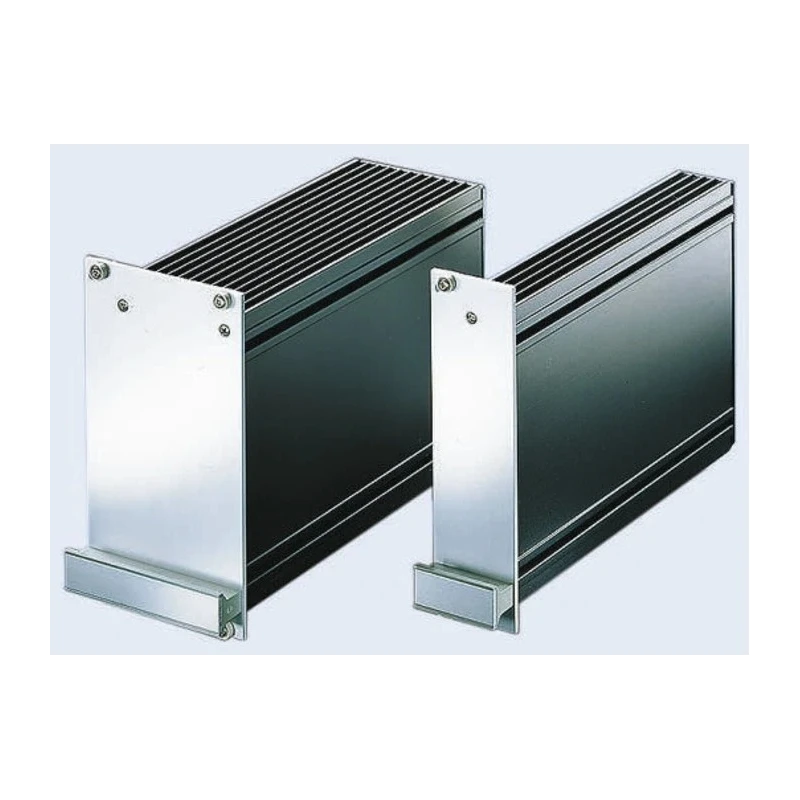

nVent SCHROFF 3 U Plug-In Unit Ventilated 167 mm External Depth, 67.4 mm Width, 108.4 mm Height 20809-532
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | nVent SCHROFF |
| Colour | Grey, Green, Black |
| External Width | 67.4mm |
| External Depth | 167mm |
| External Height | 108.4mm |
| Standards/Approvals | IEEE, IEC |
| Rack Unit | 3U |
| External Case Material | Aluminium |
| Front Panel Material | Stainless Steel |
| Frame Depth | 167mm |
| Front panel 2.5mm aluminium front | anodised rear yellow chromate, rear panel aluminium etched, handle PPE grey UL 04 V-1, cut edges: clean |
| Delivery contains | one front panel, one rear panel, two perforated covers, one handle, two EMC contact strips, one PCB mounting bracket and assembly kit |
| Enclosure, 19in, rack, plug in units, 167mm, 14HPBrand | Schroff |
| nVent SCHROFF, 3 U Plug-In Unit Ventilated 167 mm, 57.4 mm 108.4 mmBrand | nVent SCHROFF |
Key Features
- The unit has an external depth of 167 mm, external height of 108.4 mm, and external width of 67.4 mm.
- Constructed with an aluminium external case and stainless steel front panel for durability and EMI shielding.
- The 3 U rack unit size supports Euro-board format sizes of 100x160mm and 100x220mm.
- Ventilation is provided to ensure optimal cooling during operation.
- Complies with IEEE and IEC standards, including IEC 60297-3 and DIN 41 494-5 for rack system compatibility.
- Includes one front panel, one rear panel, two perforated covers, one handle, two EMC contact strips, one PCB mounting bracket, and an assembly kit.
- Designed with clean-cut edges and anodised aluminium with yellow chromate rear for corrosion resistance.
- Suitable for industrial, telecommunications, laboratory, and server rack enclosures requiring EMI protection and sturdy mechanical construction.
Product Description
nVent SCHROFF 20809-532 3 U Plug-In Unit Ventilated is a precision-engineered electronic enclosure designed for secure mounting of Euro-format sub-rack boards within a standardized 19-inch rack system. This 3 U rack unit features an external depth of 167 mm, a width of 67.4 mm, and a height of 108.4 mm, optimized for Euro-board sizes 100x160mm and 100x220mm.
The enclosure’s frame is made from robust aluminium to provide mechanical strength and effective shielding against radio frequency interference. The front panel is stainless steel, anodised aluminium with yellow chromate rear finish, ensuring both corrosion resistance and aesthetic durability. The unit incorporates ventilation to maintain effective thermal management for installed components.
Standards compliance is ensured with adherence to IEEE and IEC certifications including IEC 60297-3/DIN 41 494-5, which guarantees compatibility and interchangeability within conventional rack systems. The shielded HF frame-type plug-in units and EMC contact strips improve electromagnetic compatibility by maintaining continuous conductive contact between the panel components.
The delivery package includes one anodized front panel, one rear panel, two perforated covers for additional ventilation, a sturdy handle, two EMC contact strips for effective shielding, a PCB mounting bracket, and a comprehensive assembly kit to assist installation and integration.
This product is ideal for industrial automation, telecommunications enclosures, server racks, laboratory equipment housing, and other environments demanding rigid mechanical enclosure standards with EMI mitigation.
The enclosure is ventilated to provide airflow and thermal management. Its aluminium and stainless steel construction ensures durability and resistance to environmental factors. Standardised front and rear panel designs allow easy board insertion without guide rails.
EMC contact strips enhance electromagnetic shielding between frame components. Compliance with major international standards ensures wide industry acceptance and interoperability. Includes all necessary mounting hardware and components for immediate use.
Explore the full range of rackmount enclosures and electrical enclosures by nVent SCHROFF on EnvMart, tailored for industrial, laboratory, and telecommunications applications.
Explore more products in our Rack Mount Chassis category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this model are 167 mm in depth, 67.4 mm in width, and 108.4 mm in height.
The enclosure is constructed with an aluminium external case and a stainless steel front panel, providing durability and EMI shielding.
It complies with IEEE and IEC standards, including IEC 60297-3 and DIN 41 494-5, ensuring compatibility with conventional rack systems.
This model is designed as a 3U rack unit, suitable for Euro-board format sizes of 100x160 mm and 100x220 mm.
The delivery includes one front panel, one rear panel, two perforated covers, one handle, two EMC contact strips, one PCB mounting bracket, and an assembly kit.
It features ventilation designed to maintain effective thermal management for installed components during operation.
The unit is available in grey, green, and black colors.
The EMC contact strips enhance electromagnetic compatibility by maintaining continuous conductive contact between the panel components.
This product is manufactured in Germany.
The weight of this model is not specified in the provided information.
Yes, it is suitable for industrial, telecommunications, laboratory, and server rack enclosures requiring EMI protection and sturdy mechanical construction.
It supports mounting within a standardized 19-inch rack system, allowing easy integration with existing setups.
