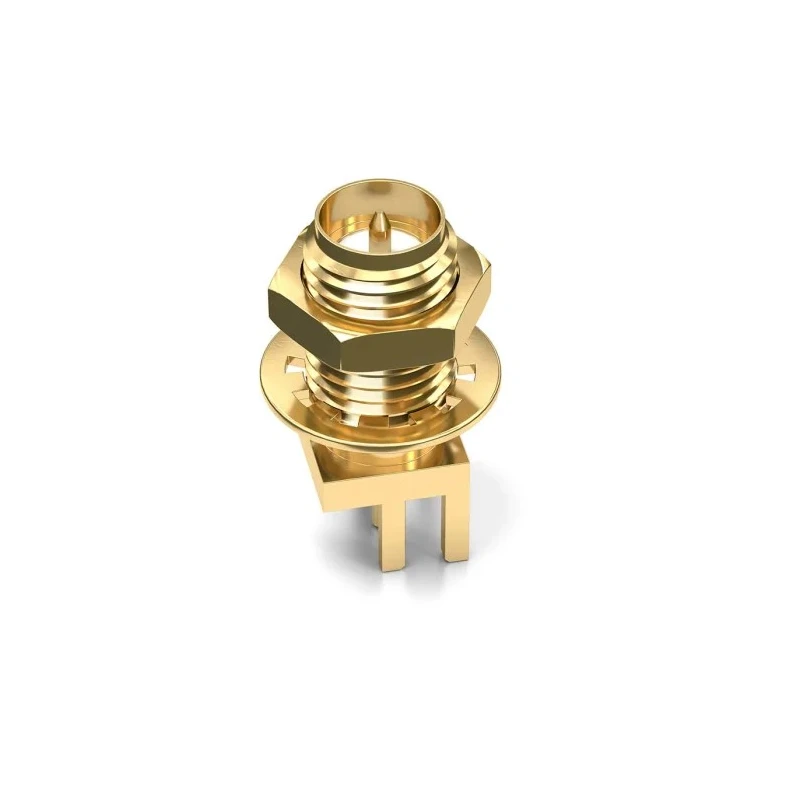

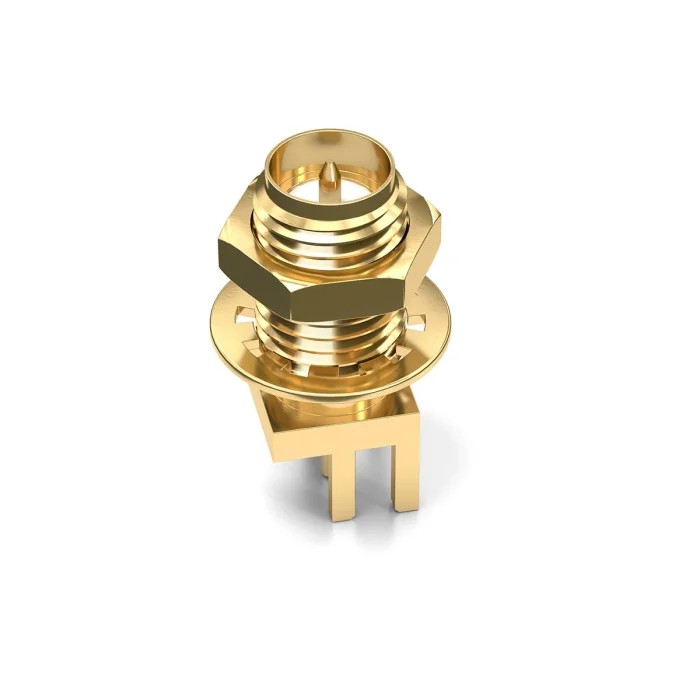

Wurth Elektronik WR-RPSMA Series Surface Mount SMA Coaxial Connector, Female, 50 Ω, Straight Body, Solder 63012242121508

Name: Wurth Elektronik WR-RPSMA Series Surface Mount SMA Coaxial Connector, Female, 50 Ω, Straight Body, Solder 63012242121508
Brand: Wurth Elektronik
SKU: 84229
Price: 7.41 USD
Availability: InStock



Category Coaxial Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Size	Standard
Brand	Wurth Elektronik
Orientation	Straight
Mount Type	Surface
Operating Frequency	6GHz
Contact Material	Brass
Series	WR-RPSMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold over Nickel
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel

Key Features

Surface mount SMA connector with female interface.
Designed for operation up to 6 GHz, suitable for RF and microwave signal transmission.
50 Ω impedance ensures efficient signal matching and minimal loss.
Straight body configuration for direct PCB end-launch applications.
Gold over nickel plating provides enhanced corrosion resistance and stable electrical connectivity.
Brass contact material offers robust mechanical and electrical reliability.
Operates reliably across a wide temperature range from -65°C to +165°C.
Bulkhead design supports mounting in panels or enclosures.

Product Description

Wurth Elektronik WR-RPSMA Series SMA Coaxial Connector model 63012242121508 is a precision-engineered surface mount connector designed for RF applications requiring reliable and high-frequency signal transmission. This female connector features a straight body, making it suitable for PCB end-launch connections where direct signal paths are necessary to minimize loss and maximize performance.

The connector is built with a brass body and contacts, ensuring both mechanical strength and stable conduction over time. Gold over nickel plating is applied to critical contact surfaces to enhance corrosion resistance and maintain low contact resistance in demanding environments. With a 50 Ω impedance, the design supports accurate signal matching for RF circuit boards, reducing signal degradation and reflections.

Rated for operation at frequencies up to 6 GHz, the WR-RPSMA Series excels in microwave, wireless communications, and electronic testing setups. Its straight orientation and bulkhead feature allow flexible installation into panels and housings, ensuring secure mechanical fixation and optimal electrical grounding.

Solder termination is provided for robust PCB integration, compatible with automated assembly processes and manual soldering techniques. The connector can operate reliably in extreme conditions, from -65°C to +165°C, supporting both laboratory and industrial electronic environments.

Common applications include RF PCB modules, wireless antenna interfaces, microwave test equipment, telecommunications circuits, industrial IoT boards, and signal routing panels in commercial electronics. The connector's compliance with RoHS, REACh, and halogen-free standards supports global manufacturing and regulatory requirements.

Industrial users benefit from its durability and performance, ensuring consistent signal transmission in advanced electronics, communications, laboratory testing, and automated PCB assembly lines.

Explore more SMA and RF Coaxial Connectors in the EnvMart Electronics Components category and discover Wurth Elektronik’s full range for specialized applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this SMA connector is 6 GHz, making it suitable for RF and microwave signal transmission.

This coaxial connector has an impedance of 50 Ω, which ensures efficient signal matching and minimal loss.

This model features a solder termination type, allowing for robust integration with PCBs and compatibility with both automated assembly processes and manual soldering techniques.

The connector is constructed with a brass body and contacts, and features gold over nickel plating on critical surfaces to enhance corrosion resistance and maintain low contact resistance.

This connector operates reliably across a wide temperature range from -65°C to +165°C, making it suitable for various industrial and laboratory environments.

This connector supports surface mounting, which is ideal for direct PCB end-launch applications.

Common applications for this SMA connector include RF PCB modules, wireless antenna interfaces, microwave test equipment, and telecommunications circuits.

This connector features a straight body orientation, which facilitates direct signal paths and minimizes loss in PCB applications.

Yes, this connector complies with RoHS, REACh, and halogen-free standards, supporting global manufacturing and regulatory requirements.

The contact gender of this connector is female, which is standard for SMA connectors.

The country of origin for this connector is Taiwan.

The body plating of this connector is gold over nickel, which enhances its corrosion resistance and electrical connectivity.
