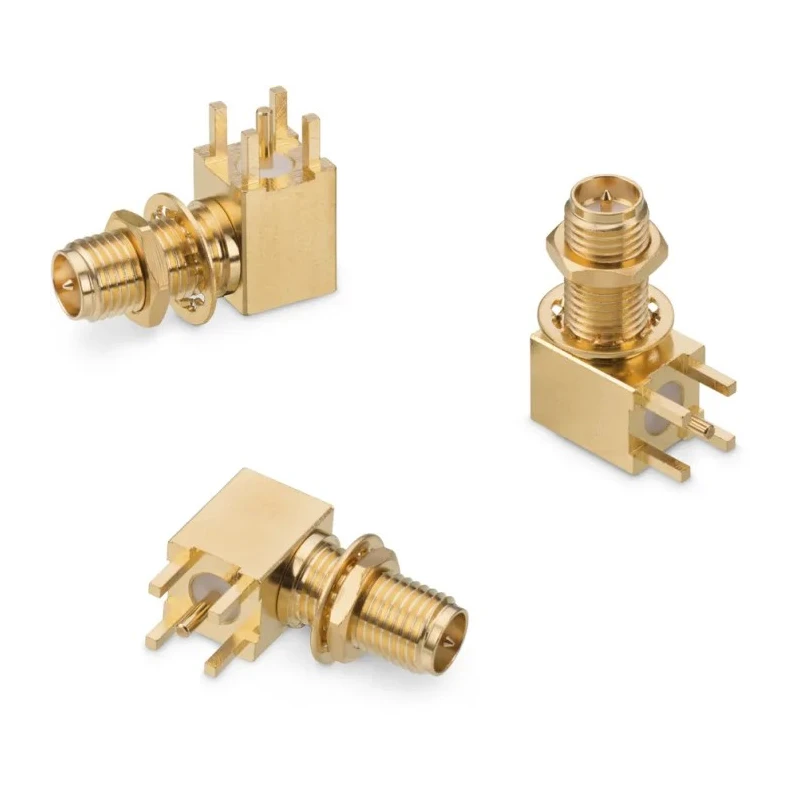

Wurth Elektronik WR-RPSMA Series PCB Female SMA Coaxial Connector 50 Ohm Right Angle Solder Bulkhead 18GHz 63011042124502

The Wurth Elektronik WR-RPSMA Series 63011042124502 is an advanced SMA female Coaxial Connector developed for right angle PCB mounting applications in RF and telecommunications equipment.

Engineered for a 50 Ohm impedance, this connector offers stable performance over frequencies up to 18GHz, making it well suited for radio communication modules, wireless telemetry, GPS, IoT nodes, and laboratory prototyping systems.

Its bulkhead mount design supports robust mechanical integration, enabling secure panel or enclosure passes. The right angle configuration minimizes board space while optimizing signal routing, critical for high-density PCB layouts and compact devices.

With a reverse polarity SMA (RP-SMA) interface, the product enhances cross-compatibility in RF system design, ensuring positive and consistent connections in female interface roles. The PCB solder termination assures low-resistance connectivity and repeatable assembly quality for precision electronics.

Constructed from brass and finished with gold over nickel plating, the connector provides superior signal integrity and protection against corrosion and wear, supporting up to 500 mating cycles. The operating temperature range from -65°C to 165°C allows the connector to withstand harsh industrial, telecommunication, and environmental testing conditions.

Common application areas include industrial automation, wireless networking hardware, test and measurement instruments, RF instrumentation racks, military communications, and advanced laboratory research projects. The bulkhead feature is especially valuable where chassis- or enclosure-mounting is required for shielded and protected signal paths.

Supports up to 18GHz frequency transmission for advanced radio, microwave, and telemetry applications. 50 Ohm impedance ensures compatibility with industry standard RF systems. Right angle PCB mounting ideal for space-saving layouts and low-profile devices.

Gold over nickel plating offers long-term durability, oxidation resistance, and stable contact performance. Solder connection delivers a secure mechanical and electrical interface to the board. Reverse polarity female SMA interface reduces installation errors and meets a variety of RF standards.

Capable of performing across a wide operating temperature range for use in extreme environments. Rated for 500 mating cycles to maximize product lifespan in field applications.
