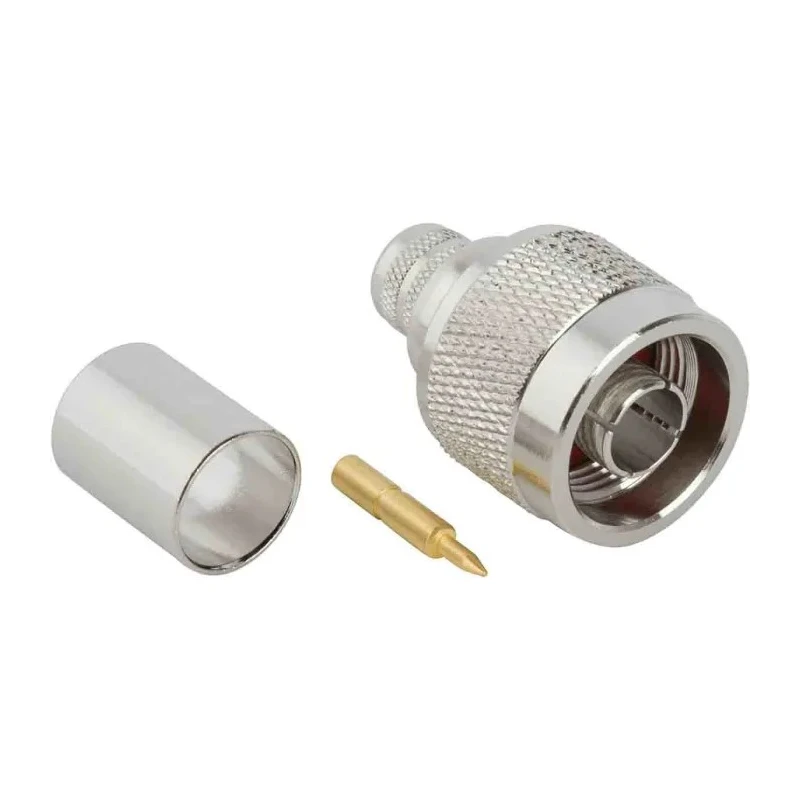

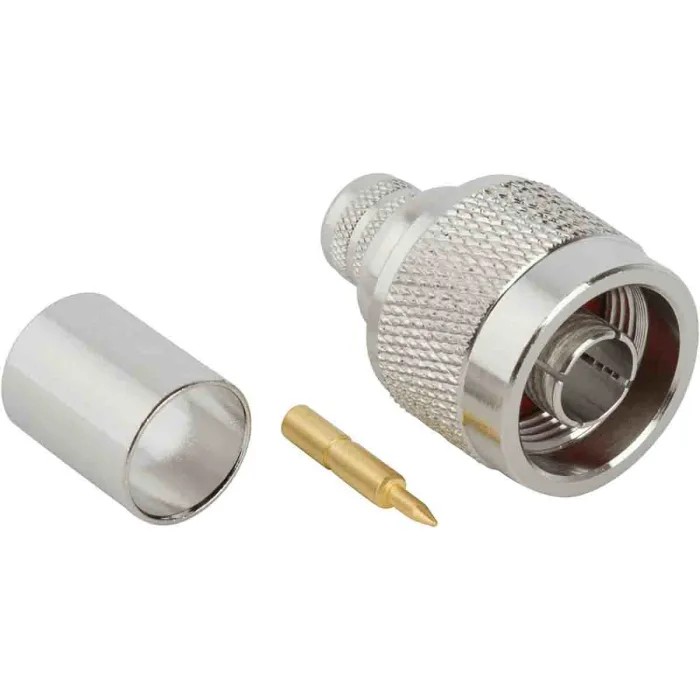

Amphenol RF N-Type Coaxial Connector, Cable Mount, Male, Straight, 50 Ω, RG214/U, Crimp, 11 GHz, 172166
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 172166 |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Brass |
| Series | N Type |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG214/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | N Connector |
| Body Plating | Nexcote Plated |
Key Features
- Ensures reliable cable mount connection for high-frequency RF applications.
- Supports up to 11 GHz operating frequency, suitable for advanced telecommunications and instrumentation.
- Features Nexcote-plated body with brass contacts and gold plating for enhanced durability and conductivity.
- Optimized for RG214/U cable, providing superior performance in base stations, satellites, and radar systems.
- Crimp termination and threaded coupling deliver vibration resistance and quick installation.
- Straight connector orientation and standard size facilitate integration in military, industrial, and commercial systems.
- Withstands extreme temperatures from -65°C to 165°C, suitable for outdoor and demanding environments.
Product Description
The Amphenol RF N-Type Series Coaxial Connector, model 172166, is engineered for high-performance RF and microwave systems, offering consistent reliability through 11 GHz operating frequency. Designed for cable mount installation with RG214/U cables, this male connector utilizes a straight body configuration and crimp termination for a secure and efficient assembly. The robust Nexcote-plated brass body, gold-plated contact, and threaded coupling mechanism ensure both mechanical strength and optimal electrical performance.
This connector supports a 50 Ω impedance, making it ideal for applications such as antennas, base stations, instrumentation, satellite systems, WLAN, radar, and broadcast environments. Its vibration-resistant construction, standard size, and normal polarity allow seamless integration in military, industrial, and commercial installations. The product's versatility is further illustrated by its ability to operate in extreme environments, with a wide temperature range from -65°C to 165°C.
The crimp termination makes installation quick and reliable, while the precision-engineered contacts provide low insertion loss and excellent signal integrity for advanced RF transmission. Its fully interchangeable N-Type design ensures compatibility with industry-standard MIL-C-39012 connectors.
Amphenol RF's N-Type connectors are trusted for their weatherproofing and durability in demanding applications. Whether for telecommunications infrastructure, radar systems, satellite links, or surge protection, this connector delivers professional-grade performance.
Industrial, laboratory, telecommunications, aerospace, and broadcast facilities benefit from the superior performance and construction of this connector, which meets the requirements of a broad line of military, industrial, and commercial grade products.
Explore more in the Coaxial Connector category, and discover Amphenol RF solutions for critical electronic communication needs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum operating frequency of 11 GHz, making it suitable for high-frequency RF applications.
It is optimized for RG214/U cables, ensuring superior performance in various applications.
This connector can operate in extreme temperatures ranging from -65°C to 165°C, suitable for demanding environments.
It features a crimp termination type, allowing for quick and reliable installation.
The connector has an impedance of 50 Ω, making it ideal for various RF applications.
The body is Nexcote-plated brass with gold-plated contacts, enhancing durability and conductivity.
This model has a straight orientation, facilitating integration into various systems.
It is suitable for applications such as antennas, base stations, instrumentation, satellite systems, WLAN, radar, and broadcast environments.
The connector utilizes a threaded coupling mechanism, which provides mechanical strength and vibration resistance.
Yes, it features a fully interchangeable N-Type design, ensuring compatibility with industry-standard MIL-C-39012 connectors.
The contact gender of this connector is male, which is standard for many RF applications.
The country of origin for this connector is China.
