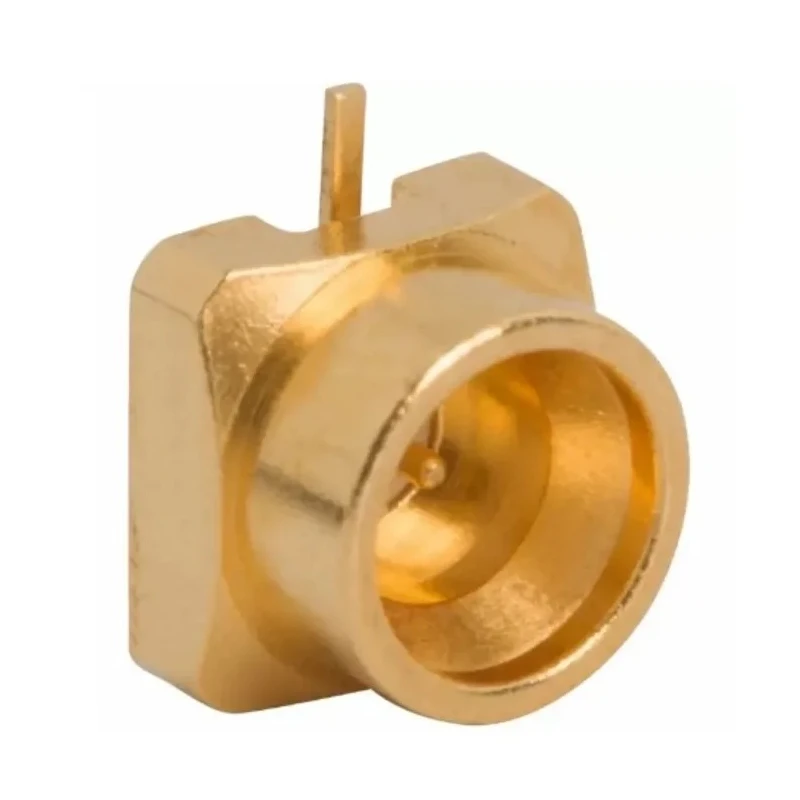

Amphenol RF SMPM PCB Female Coaxial Connector 50 Ω 10 - 26.5GHz Gold Plated Body 925-196J-51PT
Specifications
| Country of Origin | Mexico |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 925-196J-51PT |
| Mount Type | PCB |
| Operating Frequency | 10, 26.5GHz |
| Contact Material | Brass |
| Series | 925-196J-51PT |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMPM |
| Body Plating | Gold |
Key Features
- Features a gold plated brass contact and body for excellent conductivity and durability.
- Supports operating frequencies up to 26.5GHz suitable for RF and microwave applications.
- Designed for PCB mount with solder termination ensuring secure electrical connection.
- Operates reliably from -65°C to 165°C in demanding environments.
- Female connector gender with normal polarity ensures compatibility with standard SMPM connectors.
- Has a standard size and does not include a bulkhead mount.
- Manufactured to industry standards with proven performance in electronics and communication equipment.
- Originates from Mexico ensuring quality manufacturing processes.
Product Description
Amphenol RF 925-196J-51PT is a precision-engineered SMPM coaxial connector intended for PCB mounting in applications requiring stable RF connections with impedance of 50 Ω. This female connector offers a straight body orientation with solder termination, suitable for robust and reliable soldered joints in circuit boards.
The connector’s brass body and contacts are gold plated, providing exceptional conductivity, corrosion resistance, and signal integrity at high frequencies. It supports operating frequencies ranging from 10 GHz up to 26.5 GHz, making it ideal for RF, microwave, and high-speed data transmissions in industrial, telecommunications, aerospace, and laboratory settings.
Designed to operate in a wide temperature range from -65°C to 165°C, this component meets the needs of harsh environments, ensuring stable performance over varied climatic conditions. The connector does not feature a bulkhead mounting option but is built to standard dimensions for easy integration into designed systems.
Its female SOP connector gender and normal polarity offer compatibility with a wide array of SMPM male connectors, facilitating secure connections in circuit board assemblies. The series 925-196J-51PT is backed by Amphenol RF’s trusted manufacturing and quality assurance originating from Mexico.
Gold plated brass body and contacts enhance conductivity and durability. Supports high frequency up to 26.5GHz for advanced RF applications. PCB mount with solder termination for reliable electrical connections. Wide operating temperature range from -65°C to 165°C for industrial use.
Standard size SMPM connector with female gender and normal polarity. Suitable for industrial, telecommunications, aerospace, and laboratory applications. Manufactured in Mexico under stringent quality controls. Discover more Coaxial Connectors and push your designs with reliable interconnects by browsing the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports operating frequencies from 10 GHz up to 26.5 GHz, making it suitable for RF and microwave applications.
This model has an impedance of 50 Ω, which is standard for many RF applications.
It operates reliably in a wide temperature range from -65°C to 165°C, suitable for harsh environments.
It features a solder termination type, ensuring secure electrical connections when mounted on a PCB.
The body and contacts are made of brass and are gold plated, enhancing conductivity and corrosion resistance.
This connector has a female gender with normal polarity, ensuring compatibility with standard SMPM male connectors.
No, this model does not feature a bulkhead mounting option; it is designed for standard PCB mounting.
It has a straight body orientation, which is common for PCB-mounted connectors.
It is manufactured in Mexico, adhering to quality standards during production.
It is suitable for use in industrial, telecommunications, aerospace, and laboratory applications.
This model is classified as a standard size SMPM connector, designed for easy integration into systems.
This connector is part of the 925-196J series from Amphenol RF.
