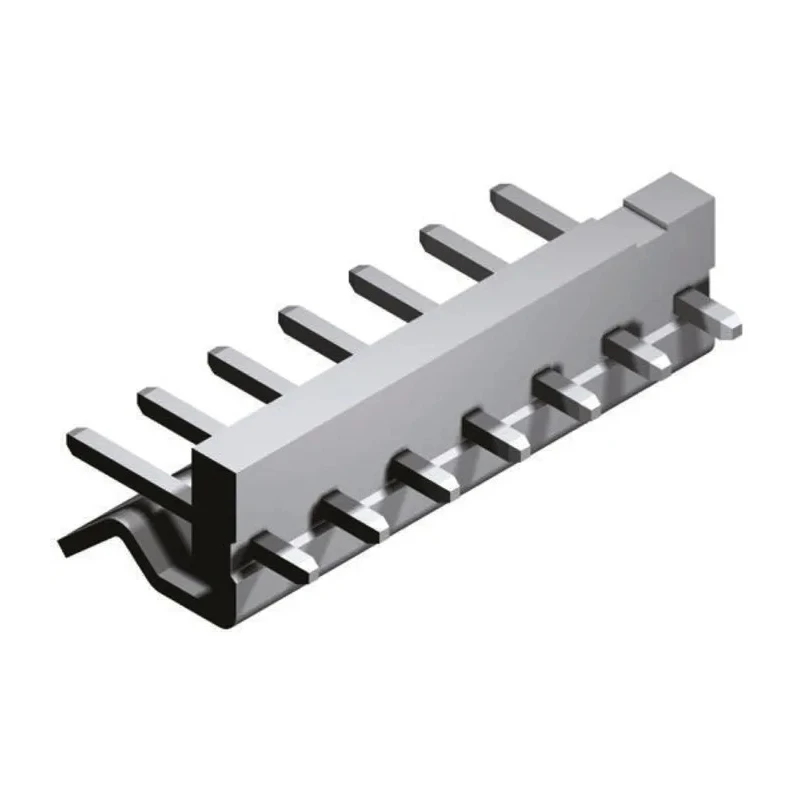

Molex SPOX Series Straight Through Hole Pin Header 7 Contacts 5.08 mm Pitch 1 Row Unshrouded 10-32-1071

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Straight Through Hole Pin Header 7 Contacts 5.08 mm Pitch 1 Row Unshrouded 10-32-1071

Name: Molex SPOX Series Straight Through Hole Pin Header 7 Contacts 5.08 mm Pitch 1 Row Unshrouded 10-32-1071
Brand: Molex
SKU: 207062
Price: 1.02 USD
Availability: InStock



Category Electronics Components Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Molex
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	5.08mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.6mm

Key Features

Constructed with brass contacts plated with tin for reliable conductivity.
Features a straight, through hole mount type for PCB wire-to-board connections.
Housing is made of durable nylon material with a 5.08 mm pitch.
Operates reliably from -40°C up to 105°C.
Supports a current rating of 7A and voltage rating of 250V.
Tail pin length measures 3.6 mm to ensure solderable contact.
Designed as a male contact gender connector, unshrouded for easy insertion.
Typical applications include PCB component assemblies and wire harness connections.

Product Description

Molex 10-32-1071 SPOX Series Straight Through Hole Pin Header features 7 male contacts arranged in a single row with a 5.08 mm pitch. It is an unshrouded connector designed for wire-to-board applications employing through-hole mounting technology. The housing material is robust nylon, providing durability and insulation.

Constructed using brass contact material plated with tin, this pin header ensures stable electrical performance and corrosion resistance. The termination type is solder, with a tail pin length of 3.6 mm facilitating strong mechanical and electrical connection on printed circuit boards.

Designed to operate within a temperature range from -40°C to 105°C, this connector can support industrial, electronic, and commercial applications requiring reliable PCB connectivity. It carries a current rating of 7A and a voltage rating of 250V, suitable for moderate power electronics assemblies.

The pin header is unshrouded to allow easy access and mating with designed mating housings, such as those from the compatible 5197 Series housings. The straight orientation and single-row form factor help optimize PCB space and simplify wiring harness configurations.

With no specific standards or approvals noted, this product is manufactured in Japan, reflecting high-quality production standards. Ideal for electronics manufacturing, industrial automation, and testing environments where secure connections are critical.

Constructed with brass contacts plated with tin for reliable conductivity. Features a straight, through hole mount type for PCB wire-to-board connections. Housing is made of durable nylon material with a 5.08 mm pitch. Operates reliably from -40°C up to 105°C.

Supports a current rating of 7A and voltage rating of 250V. Tail pin length measures 3.6 mm to ensure solderable contact. Designed as a male contact gender connector, unshrouded for easy insertion. Typical applications include PCB component assemblies and wire harness connections.

Explore the Molex SPOX series and other PCB connectors for high-quality, reliable connections suitable for industrial, electronic manufacturing, and laboratory applications at EnvMart.
