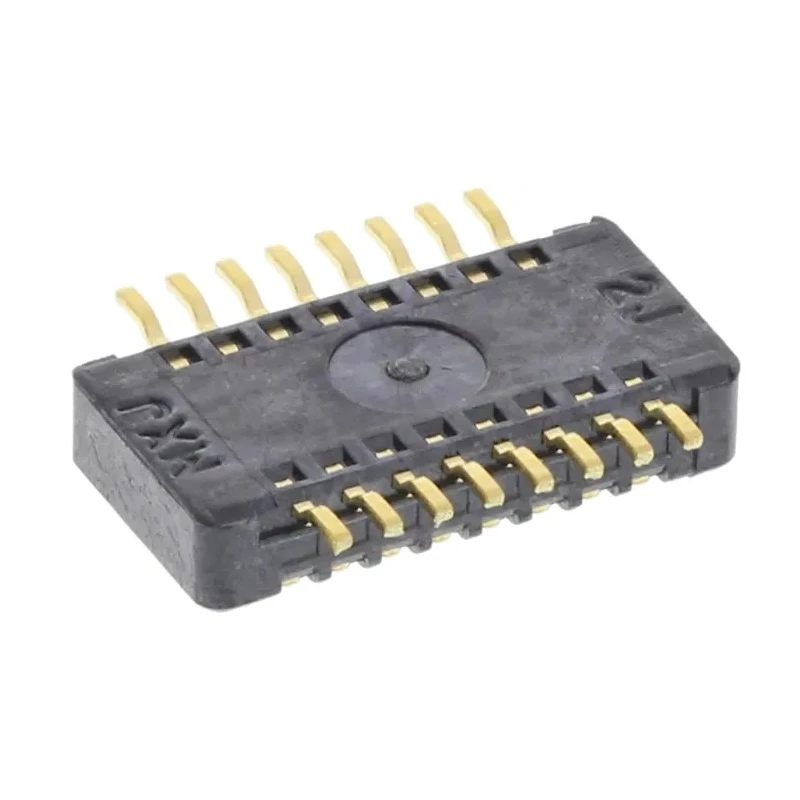

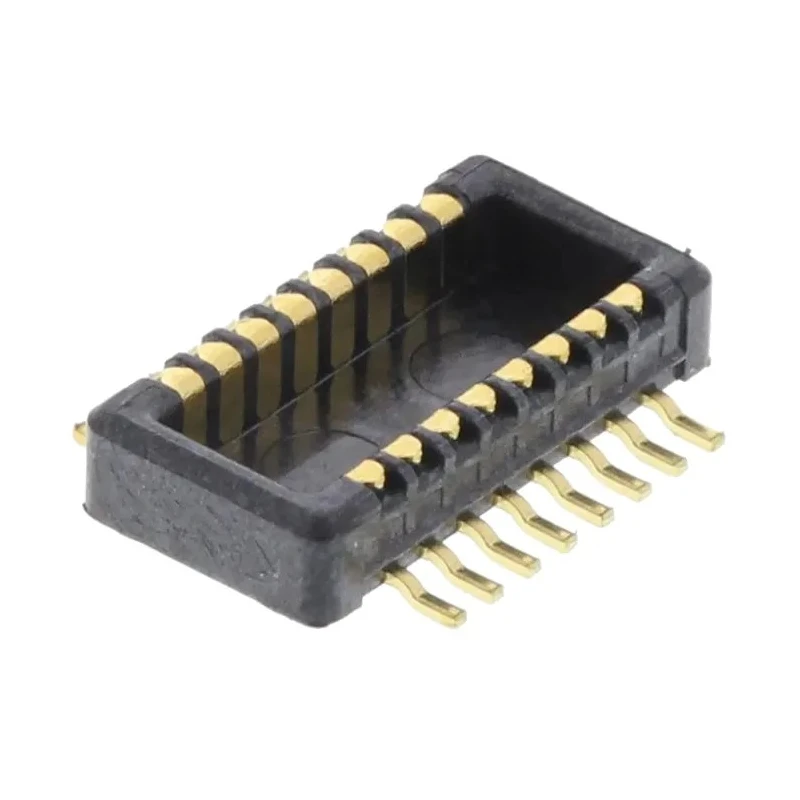

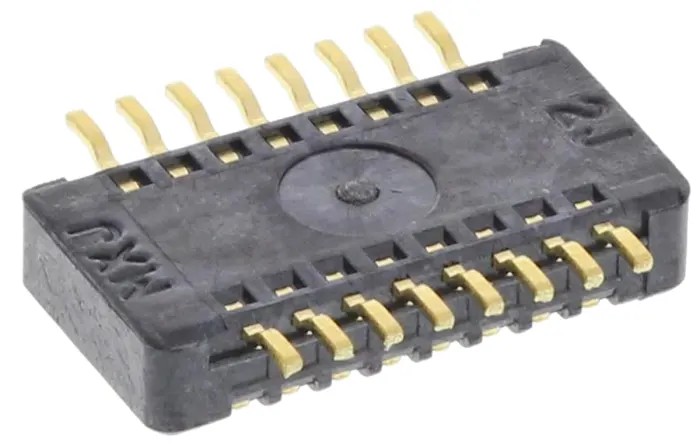

Molex SlimStack Series Straight Surface PCB Header 16 Contacts 0.5 mm Pitch 2 Row Shrouded 55560-0168
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features gold-plated brass contacts ensuring corrosion resistance and reliable conductivity.
- Shrouded design with 2 rows and 0.5 mm pitch offers secure mating and shock resistance.
- Constructed with durable nylon housing suitable for temperatures from -40°C to 105°C.
- Surface mount type designed for board-to-board connection with straight orientation.
- Operates at a voltage rating of 50V and current rating of 500mA.
- Metal friction lock mechanism enhances mating retention, ideal for portable applications with vibration exposure.
- Compact SlimStack design enables micro SMT stacking with low profile heights.
- Ideal for use in electronic components, power connectors, and PCB connector assemblies.
Product Description
Molex 55560-0168 SlimStack Series Straight Surface PCB Header delivers compact, high-density board-to-board connections with 16 gold-plated brass contacts and a 0.5 mm pitch across two rows. This shrouded male connector features a robust nylon housing engineered to withstand operating temperatures from -40°C up to 105°C. Designed for surface mounting with a straight orientation, it provides secure, vibration-resistant mating enhanced by a metal friction lock to maintain connection integrity in portable or industrial environments.
The SlimStack family offers multiple stacking heights; this variant supports 1.5 mm to 4.0 mm stacking configurations, suitable for micro SMT applications demanding space-efficient PCB layouts. With a current capacity of 500mA and voltage rating of 50V, it is optimized for electronic and power connector assemblies within industrial, manufacturing, and electronic equipment sectors. Gold plating on contacts ensures reliable electrical performance and long-term durability against corrosion.
This PCB header integrates seamlessly into board-to-board systems, enhancing manufacturing efficiency through its surface mount termination and solder-type tail design. Its compact form factor and secure retention make it suitable for use in environments exposed to shock and vibration stresses. The product is made in China, reflecting adherence to international quality requirements.
Gold-plated brass contacts offer excellent conductivity and corrosion resistance. Durable nylon housing withstanding -40°C to 105°C operational temperatures. Shrouded connector design for secure mating and protection. Surface mount termination for efficient PCB assembly.
Metal friction lock ensures secure connection in portable applications. Compact 0.5 mm pitch and 2-row configuration for space savings. Supports current up to 500mA and voltage up to 50V. Suitable for electronics manufacturing, industrial, and power connector applications.
Explore our extensive range of connectors and PCB headers in the Electronics & Electricals category at EnvMart for all your industrial and commercial electronic component needs.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 50V and a current rating of 500mA.
It features a pitch of 0.5 mm and includes 16 contacts arranged in 2 rows.
The housing is made of durable nylon, and the contacts are constructed from brass with gold plating for corrosion resistance.
It operates within a temperature range of -40°C to 105°C.
This unit is designed for surface mounting with a solder termination type.
The shrouded design provides secure mating and enhances shock resistance, making it suitable for portable applications exposed to vibration.
It is designed for board-to-board connections.
The metal friction lock enhances mating retention, ensuring a secure connection in environments with vibration exposure.
This variant supports stacking configurations ranging from 1.5 mm to 4.0 mm, suitable for micro SMT applications.
The contacts are male, designed for secure connections with female counterparts.
This PCB header is manufactured in China, adhering to international quality requirements.
It is suitable for use in electronic components, power connectors, and PCB connector assemblies within industrial and manufacturing sectors.
