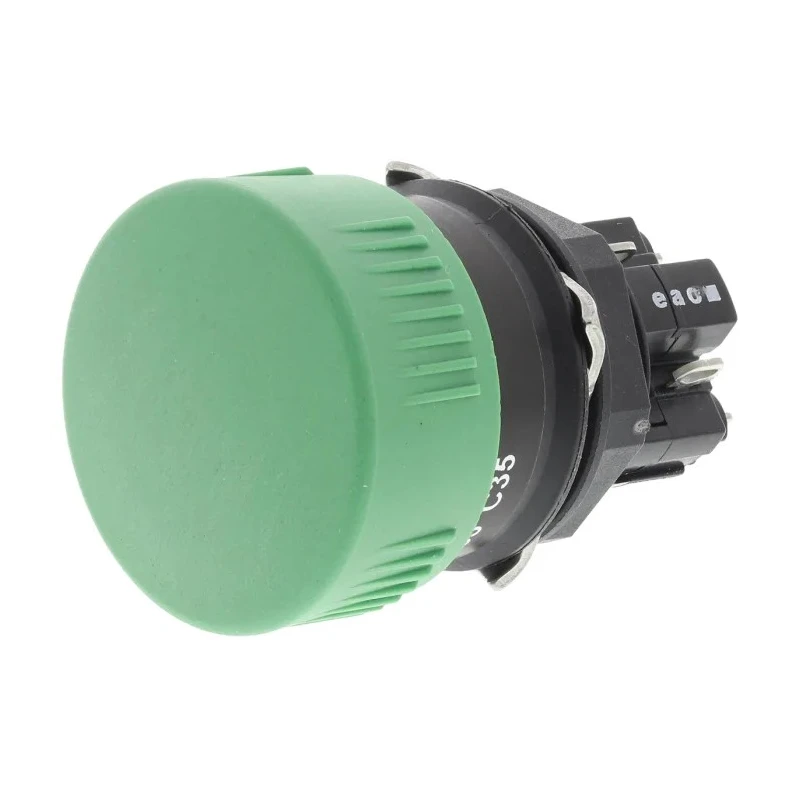

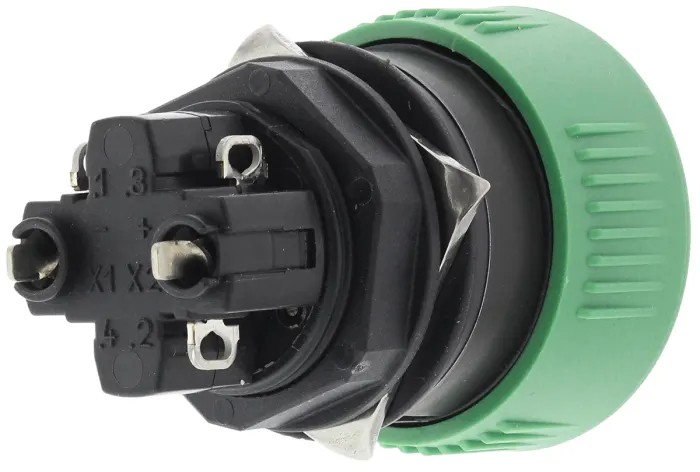

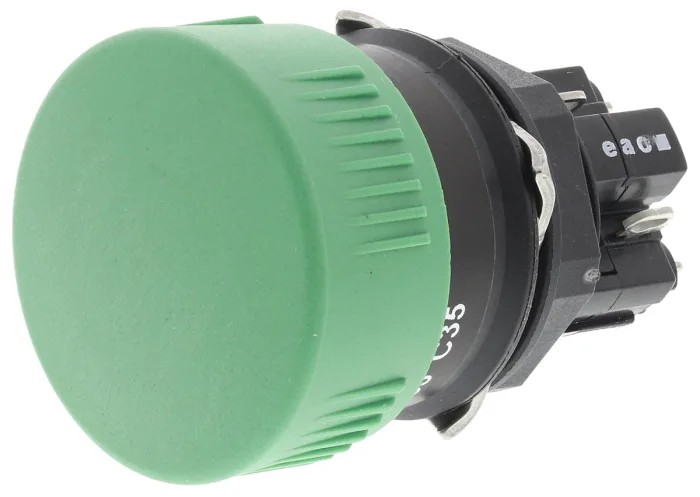

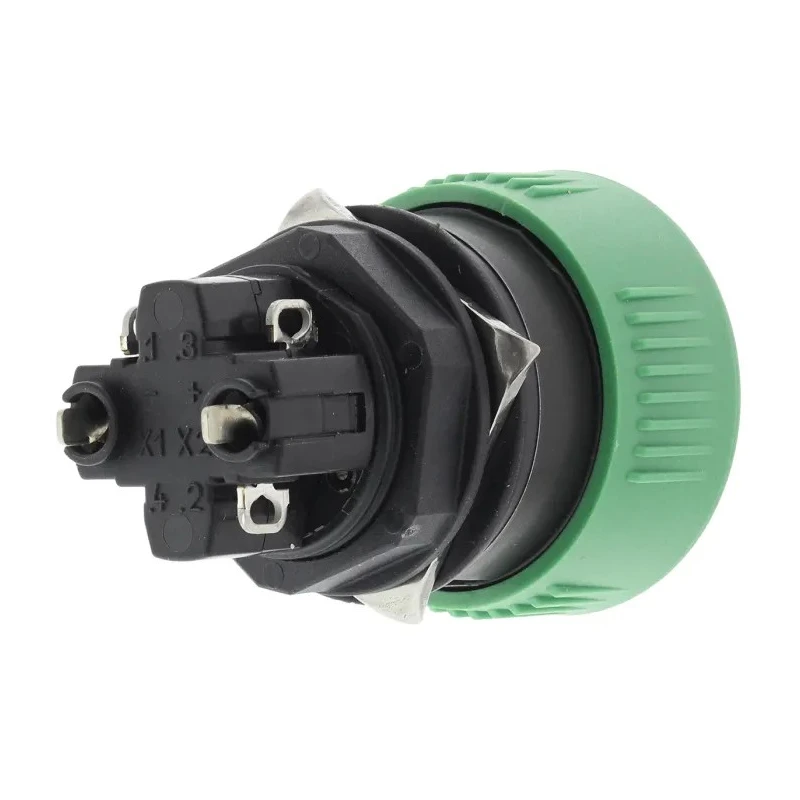

EAO Push Button Switch Momentary Panel Mount 16 mm Cutout DPDT IP65 250 V ac 51-156.0255



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Dimensions	Depth behind panel 18.8mm, panel cut-out 16mm
Length	37.8mm
IP Rating	IP65
Mount Type	Panel
Series	51
Contact Configuration	DPDT
Switch Configuration	Snap Action
Panel Cutout Size	16 mm
Terminal type	Solder Lug
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Green
Actuator Style	Mushroom
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

This switch operates with a snap action mechanism providing momentary switching functionality.
The actuator style is a raised mushroom head colour-coded green for clear indication.
It is designed for panel mounting with a 16 mm panel cutout size.
The switch contact current rating is 5 A at 250 V ac ensuring reliable electrical performance.
Constructed with gold contacts for enhanced durability and contact integrity.
The switch is RoHS compliant, ensuring environmental safety and regulatory conformity.
Its dimensions include 37.8 mm length and 18.8 mm depth behind the panel.
This push button switch is made in Switzerland, guaranteeing high-quality manufacturing standards.

Product Description

The EAO 51-156.0255 is a robust push button switch designed for reliable momentary switching applications in electrical and automation systems. Featuring a green mushroom actuator style, it provides a distinct tactile and visual indication of operation. The DPDT (Double Pole Double Throw) contact configuration allows versatile control schemes in complex circuits.

This switch is engineered for panel mounting with a precise 16 mm panel cutout dimension, enabling secure and easy installation. It has a compact footprint with a length of 37.8 mm and a compact depth of 18.8 mm behind the panel, ensuring suitability in space-constrained applications.

The switch is rated for an AC contact voltage of 250 V and can safely handle a contact current of 5 A, making it suitable for a wide range of industrial control systems. Gold contacts enhance conductivity and resistance to corrosion for dependable performance over time.

Designed to provide front-of-panel protection against dust and moisture, it carries an IP65 ingress protection rating. This makes it ideal for harsh industrial, manufacturing, commercial, and automation environments requiring durable and reliable switching solutions.

This push button switch complies with RoHS environmental standards, confirming its lead-free and eco-friendly construction. Manufactured in Switzerland, the switch upholds global quality benchmarks.

This switch operates with a snap action mechanism providing momentary switching functionality. The actuator style is a raised mushroom head colour-coded green for clear indication. It is designed for panel mounting with a 16 mm panel cutout size.

The switch contact current rating is 5 A at 250 V ac ensuring reliable electrical performance. Constructed with gold contacts for enhanced durability and contact integrity. The switch is RoHS compliant, ensuring environmental safety and regulatory conformity.

Its dimensions include 37.8 mm length and 18.8 mm depth behind the panel. This push button switch is made in Switzerland, guaranteeing high-quality manufacturing standards. Explore the range of EAO Push Button Switches at EnvMart for reliable electrical and automation control solutions in industrial and commercial settings.
