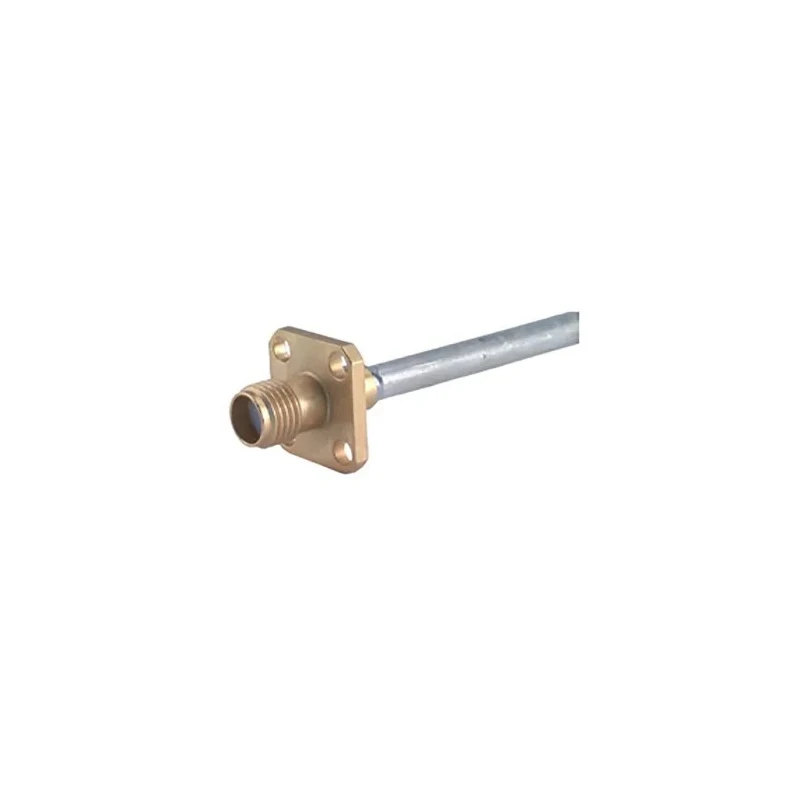

Huber+Suhner Coaxial Connector Flange Female SMA 50 Ohm, Straight Body Solder, Gold Plating, 18GHz 25_SMA-50-3-15/111_NE
Specifications
| Country of Origin | China |
|---|---|
| Frequency range | DC to 18 GHz |
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Straight |
| Model | 25_SMA-50-3-15/111_NE |
| Mount Type | Flange |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | 25_SMA-50-3-15/111_NE |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Flange mounting ensures secure installation in electronic panels.
- Female SMA interface suitable for RF and microwave applications.
- Impedance of 50 Ohm supports signal integrity.
- Straight body design optimizes cable alignment and connectivity.
- Gold-plated beryllium copper contacts enhance conductivity and corrosion resistance.
- Operating frequency up to 18GHz enables use in high-frequency circuits.
- Solder termination provides reliable electrical connection.
- Wide operating temperature range from -65°C to 165°C increases versatility.
Product Description
Huber+Suhner 25_SMA-50-3-15/111_NE is a flange-mounted coaxial connector engineered for demanding RF signal transmission requirements. Featuring a female SMA interface, this connector is ideal for use in telecommunications, test and measurement, microwave circuits, and instrumentation where high-frequency signal performance is essential.
The connector is built with gold-plated beryllium copper contacts, offering exceptional electrical conductivity and resistance to corrosion. Its straight body facilitates streamlined cable alignment, and the flange mount allows secure and stable installation onto electronic panels and devices.
Supporting an impedance of 50 Ohm, the unit is optimized for signal integrity and minimal loss, making it suitable for both laboratory and industrial environments. The operating frequency range covers DC to 18GHz, ensuring compatibility with a wide array of RF and microwave applications including antennas, amplifiers, and network analyzers.
Solder termination ensures robust and reliable electrical connection, minimizing the risk of transmission errors. The connector operates reliably within a wide temperature range from -65°C to 165°C, allowing use in environments that require both high performance and ruggedness.
This product meets the RoHS standard, confirming compliance with environmental requirements. Its durable brass and gold-plated construction provides longevity and high performance even under frequent mating cycles.
Industries benefiting from this connector include telecommunications, electronics manufacturing, laboratory R&D, commercial wireless networking, and industrial automation, where precise high-frequency connections are required.
Explore more Huber+Suhner Coaxial Connectors and RF accessories at EnvMart for your professional signal transmission needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates over a frequency range from DC to 18 GHz, making it suitable for high-frequency applications.
It features a flange mount, ensuring secure installation onto electronic panels and devices.
This connector has an impedance of 50 Ohm, which supports signal integrity and minimal loss.
The contacts are made from beryllium copper alloy and are gold-plated to enhance conductivity and corrosion resistance.
It operates reliably within a temperature range from -65°C to 165°C, allowing for use in various environments.
This model uses a solder termination type, ensuring a robust and reliable electrical connection.
Yes, it meets the RoHS standard, confirming compliance with environmental requirements.
The connector has a straight orientation, which optimizes cable alignment and connectivity.
It is ideal for telecommunications, test and measurement, microwave circuits, and instrumentation requiring high-frequency signal performance.
This model features a female connector gender, suitable for various RF applications.
The connector is classified as a standard size, making it compatible with a variety of coaxial systems.
This model is designed for use with coaxial cables, ensuring effective signal transmission.
