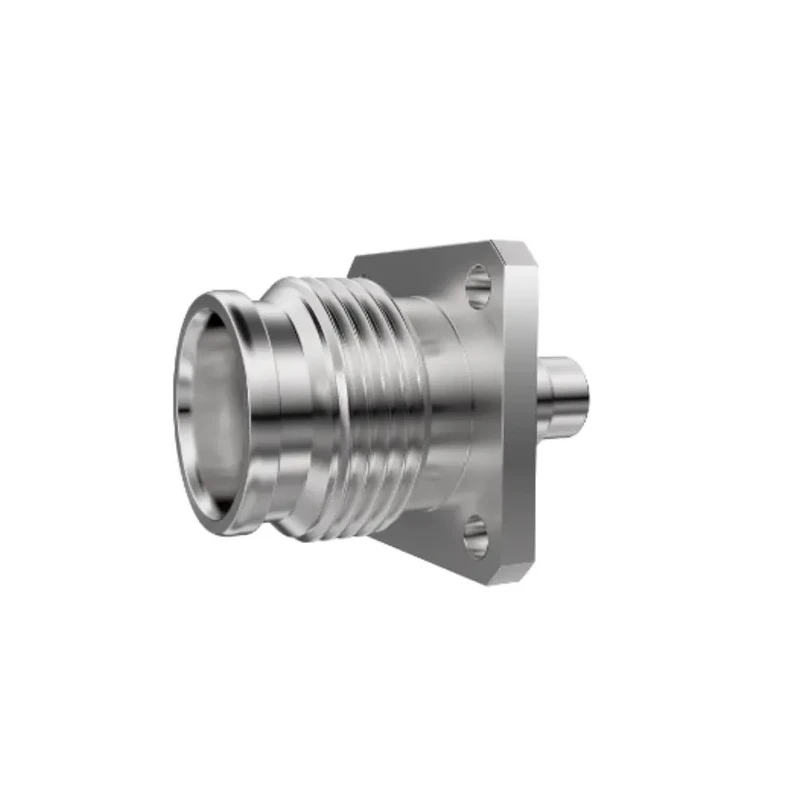

Telegartner 2.2-5 Series Coaxial Connector Panel Mount Female 50Ω Straight Body Solder J01461A0005
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01461A0005 |
| Mount Type | Panel Mount |
| Series | 2.2-5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Cable Type | RG402/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Gender | Female |
| Connector Gender | Female |
| Body Plating | White Bronze |
Key Features
- Compatible with RG402/U cable type for reliable signal transmission.
- Panel mount design ensures secure and straightforward installation.
- Operating temperature range from -55°C to 90°C for diverse environments.
- Body plating made of white bronze for excellent corrosion resistance.
- Meets RoHS standards ensuring environmental compliance.
- Constructed with high-quality CuBe2Pb center contact and CuZn39Pb3 body.
- Polarity is normal with female contact gender for standard connections.
Product Description
Telegartner J01461A0005 is a 2.2-5 series coaxial connector designed for panel mount applications. This female connector features a straight body solder termination and is engineered for high-frequency operations up to 6 GHz. It provides a characteristic impedance of 50 ohms, making it suitable for RF transmission lines requiring low signal loss and excellent performance.
The connector center contact comprises high-quality CuBe2Pb alloy with Cu2Ag5 finish, while the insulator is manufactured from PTFE, ensuring electrical insulation and mechanical durability. The body is made from CuZn39Pb3 and plated with white bronze to enhance corrosion resistance and prolong connector life. Its operating temperature range spans from -55°C to 90°C, allowing deployment in harsh industrial, telecommunications, laboratory, and electronic testing environments.
This product complies with RoHS standards, guaranteeing restriction of hazardous substances for environmental safety. Its panel mount structure includes a bulkhead feature for robust mechanical stability and ease of installation. The connector's polarity is normal with female gender contacts, suitable for a wide array of coaxial cabling needs involving RG402/U cables.
Applications include electronic components integration, RF transmission systems, power and signal connectors in industrial and laboratory settings. The connector's precise manufacturing and materials offer reliable connectivity performance in demanding professional contexts.
Compatible with RG402/U cable type for reliable signal transmission. Panel mount design ensures secure and straightforward installation. Operating temperature range from -55°C to 90°C for diverse environments. Body plating made of white bronze for excellent corrosion resistance.
Meets RoHS standards ensuring environmental compliance. Constructed with high-quality CuBe2Pb center contact and CuZn39Pb3 body. Frequency range supported up to 6 GHz for high-frequency applications. Polarity is normal with female contact gender for standard connections.
Explore more Coaxial Connectors and electronic components from Telegartner and other leading brands at EnvMart for your industrial, laboratory, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 90°C.
It is compatible with RG402/U cable type for reliable signal transmission.
This connector has a characteristic impedance of 50 ohms, suitable for RF transmission lines.
The operating temperature range for this model spans from -55°C to 90°C.
The body is plated with white bronze, providing excellent corrosion resistance.
The connector features a female contact gender, suitable for standard connections.
This model uses a solder termination type for secure connections.
This connector is designed for panel mount applications, ensuring secure installation.
It meets RoHS standards, ensuring compliance with environmental safety regulations.
This coaxial connector supports high-frequency operations up to 6 GHz.
The country of origin for this connector is Germany.
It is constructed with a CuBe2Pb center contact and a CuZn39Pb3 body, ensuring reliable connectivity.
