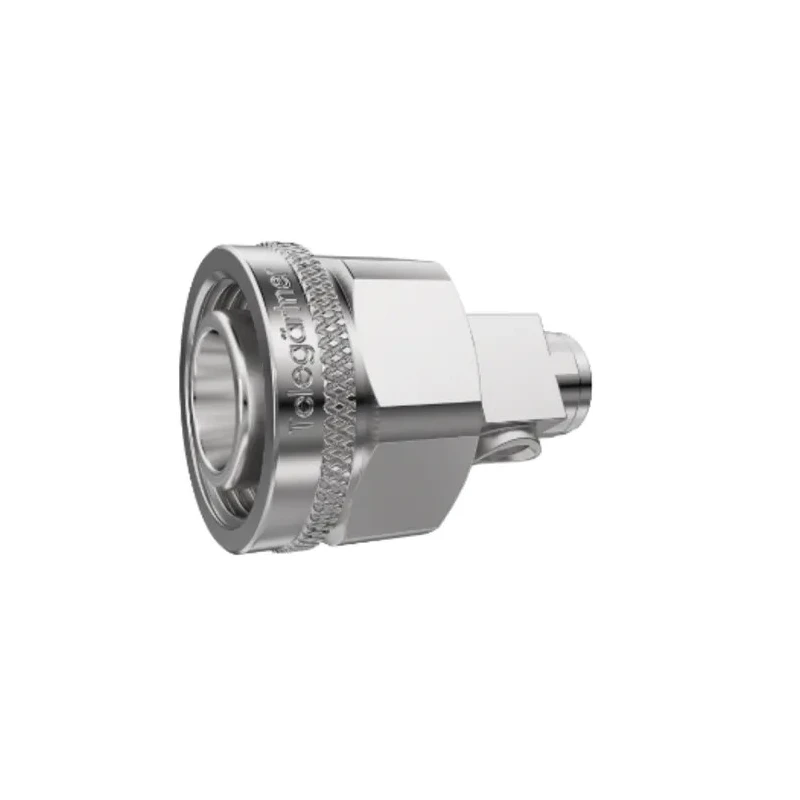

Telegartner 2.2-5 Series Coaxial Connector Male, 50 Ω, Angled Body Solder J01460A0008

Telegartner J01460A0008 is a premium 2.2-5 Series Coaxial Connector designed for use in electronic, telecommunications, and RF applications where a reliable male connection at 50 Ω impedance is critical. It features an angled body for flexible installation in tight spaces.

The connector supports frequencies up to 6 GHz, making it suitable for high-frequency signal transmission. Its male contacts are crafted from durable brass with a Cu2Ag5 finish, ensuring excellent conductivity and corrosion resistance.

The insulator is constructed from high-quality PTFE, and the gasket is silicon-based to provide stable dielectric properties and environmental sealing. The body plating of the connector is finished with white bronze to enhance mechanical strength and longevity.

Operating temperature thresholds range from -55°C to 90°C, allowing use in demanding environmental conditions. This product accepts RG402/U cable types and is designed with a solder termination for secure connections.

There is no bulkhead mounting option, which suits inline cable installations. The connector adheres to RoHS compliance, supporting eco-friendly manufacturing and use. The connector supports frequency up to 6 GHz. It provides a normal polarity configuration with male contact gender.

Constructed with brass contact material and white bronze body plating for durability. The insulator is made of PTFE and gasket from silicon for stable performance. Operating temperature ranges from -55°C to 90°C. Cable compatibility includes RG402/U types.

No bulkhead mount, designed for solder termination. Complies with RoHS standards ensuring environmental safety.

This Coaxial Connector is ideal for industrial, laboratory, telecommunications, and electronic manufacturing uses where reliable high-frequency RF connectivity is essential. Browse more connectors and accessories in the Electronics Components category at EnvMart.
