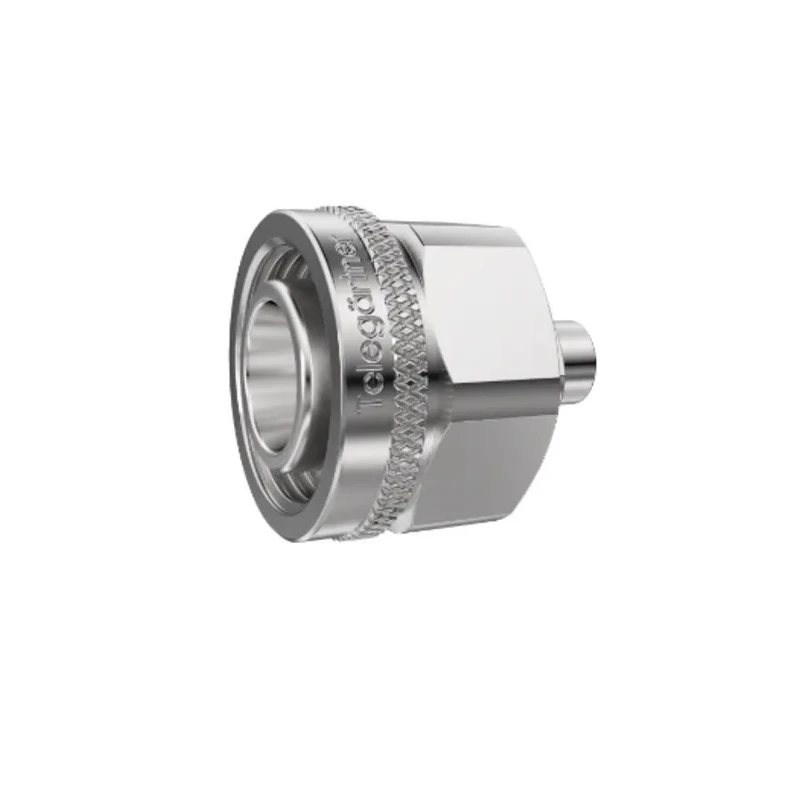

Telegartner 2.2-5 Series Male Coaxial Connector, 50 Ohm, Straight, Solder, RG402/U Cable J01460A0003
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01460A0003 |
| Series | 2.2-5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Cable Type | RG402/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Gender | Male |
| Connector Gender | Male |
| Body Plating | White Bronze |
Key Features
- Made for professional RF signal connections in communications and instrumentation.
- Compatible with 50Ω impedance systems, supporting frequencies up to 6 GHz.
- Features robust white bronze body plating for excellent durability and signal performance.
- Supports solder termination and normal polarity for secure, reliable assembly.
- Operates in extreme temperatures from -55°C to +90°C for demanding environments.
- Male-to-male contact configuration, suitable for straight, non-bulkhead panel connections.
- PTFE insulator and silicon gasket provide excellent electrical isolation and sealing.
- Compliant with RoHS standards, suitable for regulated applications.
Product Description
The Telegartner J01460A0003 2.2-5 Series Male Coaxial Connector offers a robust solution for high-frequency RF cable terminations, supporting 50 ohm impedance and engineered for RG402/U cable types. Supplied in a straight, solder-terminated configuration, this connector is well-suited to industrial and laboratory electronic systems requiring reliable signal transmission with minimal insertion loss.
Manufactured with a white bronze-plated body, the J01460A0003 delivers enhanced corrosion resistance and extended service life in demanding field environments. The center contact utilizes CuZn39Pb3 with a silver-plated finish (Cu2Ag5), ensuring low contact resistance and high electrical performance over its broad operating frequency range, up to 6 GHz.
This coaxial connector is equipped with a PTFE insulator for stable dielectric properties across the specified -55°C to +90°C operating temperature range, and its silicon gasket guarantees effective environmental sealing. Its normal polarity, male contact gender, and straight body orientation make it suitable for applications in telecommunications, test and measurement equipment, RF transmission lines, and professional signal processing setups.
Built for precision RF and microwave electronic assemblies in industrial, laboratory, and communications equipment. Secure solder termination supports robust performance and vibration resistance. Series: 2.2-5; compatible with popular RG402/U cable for versatile integration.
Exceptional electrical isolation provided by the PTFE insulator and reliable sealing with a silicon gasket. RoHS-compliant and manufactured to high quality standards in Germany.
Typical applications include electronic communications equipment, laboratory test benches, high-frequency modules in system integration, and any scenario that requires reliable coaxial connections under variable temperature and environmental conditions.
Explore more premium RF and Coaxial Connectors on EnvMart from Telegartner and other trusted brands to achieve dependable connectivity and performance in your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this connector is 50Ω, making it compatible with 50Ω impedance systems.
The maximum operating temperature for the Telegartner J01460A0003 connector is 90°C.
This coaxial connector is designed for use with RG402/U cable types.
The minimum operating temperature is -55°C, allowing it to function in extreme conditions.
It utilizes a solder termination type for secure and reliable assembly.
Specific dimensions and weight details are not provided in the product specifications.
The contact gender of this connector is male, suitable for male-to-male connections.
The body is plated with white bronze, and the center contact is made from CuZn39Pb3 with a silver-plated finish.
Yes, this connector is compliant with RoHS standards, suitable for regulated applications.
The orientation of this connector is straight, designed for non-bulkhead panel connections.
It is suitable for telecommunications, test and measurement equipment, RF transmission lines, and professional signal processing setups.
The series name of this connector is 2.2-5, indicating its specific design and application range.
