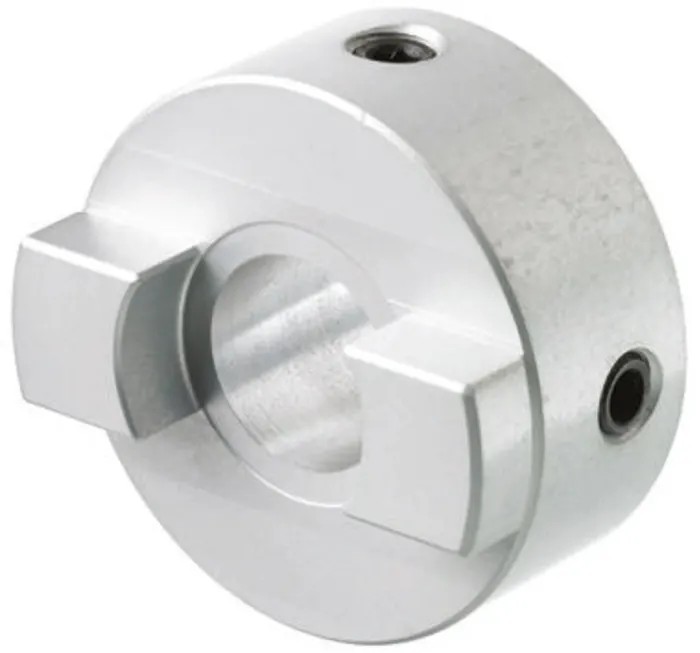

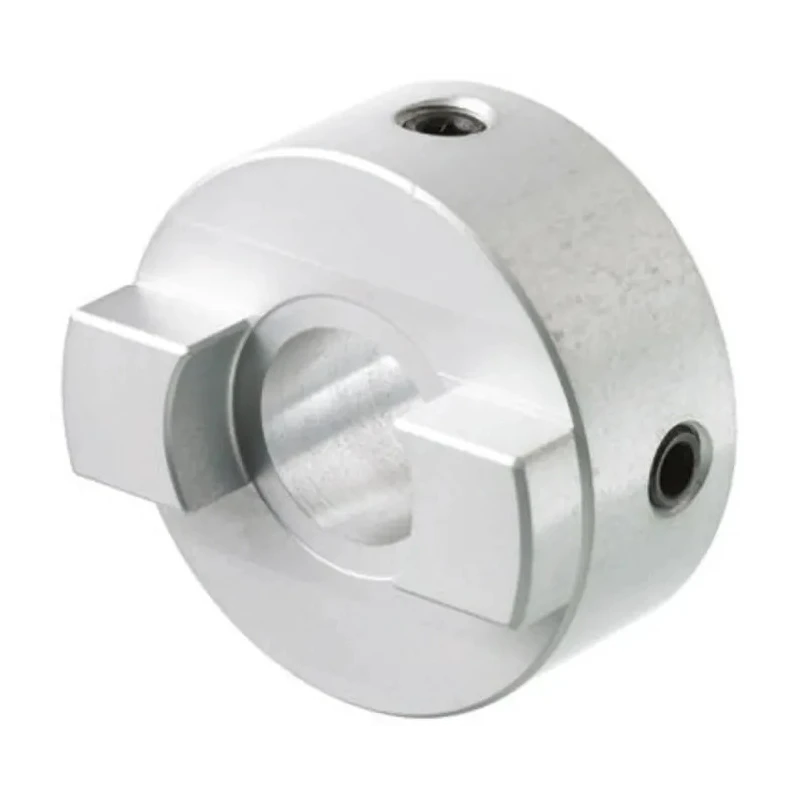

Huco Stainless Steel Coupler 12.7 mm OD 5 mm Bore Finished No Keyway Set Screw Style 13 mm Length 850.13.20

Huco 850.13.20 Stainless Steel coupler provides a precision flexible connection solution for mechanical power transmission applications requiring 12.7 mm outside diameter and 5 mm bore diameter shaft interfaces. Its 13 mm hub length and no keyway bore finish offer electrical isolation and corrosion resistance, ideal for industrial machinery, laboratory equipment, and fluid power systems.

This set screw style flexible Oldham coupler efficiently handles angular, parallel, and axial misalignments up to 0.5°, 0.2 mm, and 0.1 mm respectively, ensuring backlash-free mechanical power transfer with minimal bearing side loads. Operating at speeds up to 3000 rpm, it suits high-speed rotary applications requiring durability and precision.

The stainless steel material provides excellent wear resistance and longevity under demanding environmental conditions, making it appropriate for manufacturing, HVAC, and construction machinery sectors. This coupler must be assembled by purchasing two hubs and one torque disc separately, enabling modular flexibility for custom shaft connections.

Constructed from stainless steel for durability and corrosion resistance. Backlash-free operation suitable for precise motion control. Capable of handling large radial shaft misalignment without damage. Supports maximum operating speeds up to 3000 rpm.

Angular misalignment capacity of 0.5 degrees. Parallel misalignment tolerance of 0.2 mm to reduce stress. Axial misalignment accommodation of 0.1 mm. Set screw style allows secure and adjustable mounting on shafts. Not sold as assembled unit; user must purchase two hubs and one torque disc separately.

This coupling is widely used in industrial, mechanical, and fluid power applications requiring reliable and electrically isolating shaft connections. Explore more precision coupling options in the Mechanical Power Transmission Couplers category to enhance your machinery performance.
