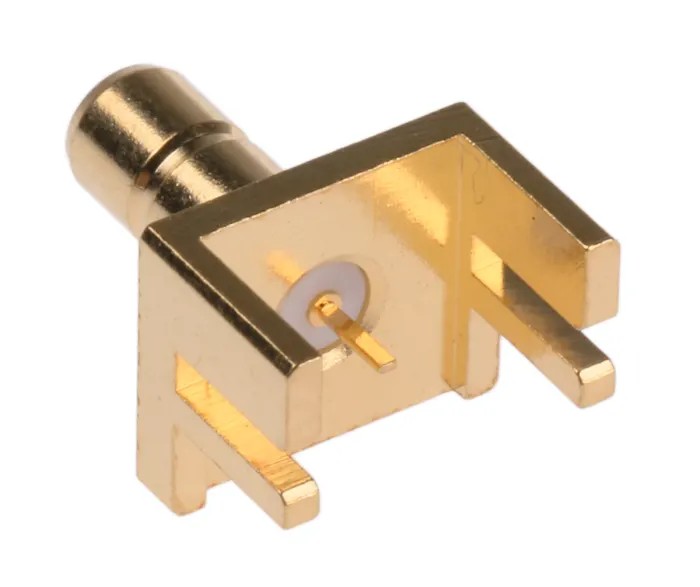

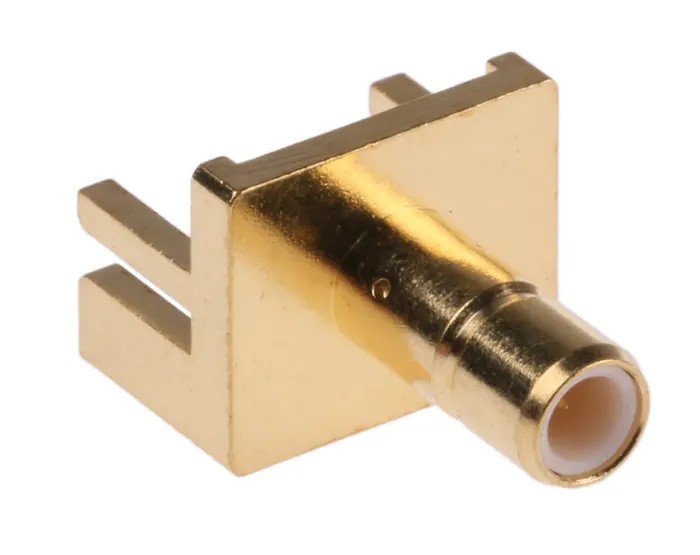

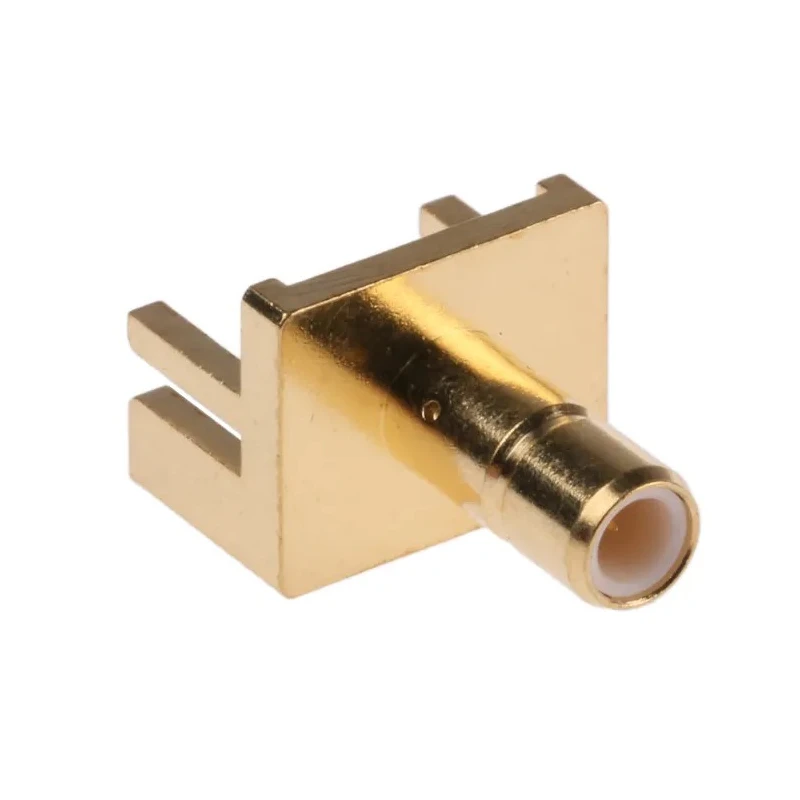

RS PRO Coaxial Connector PCB Female SMB, 50 Ω, Straight Body, Gold Plated, Solder Termination 526-5820
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 526-5820 |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| SMB tab cont end launcher for 1.07mm PCBBrand | NEUTRAL |
| RS PRO Coaxial Connector Panel Mount Female SMB, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- This connector is designed for PCB mounting with solder termination.
- The optimal operating frequency reaches up to 18 GHz.
- Constructed with gold-plated brass body and beryllium copper contacts for durability.
- Works reliably within temperature range from -65°C to 165°C.
- Features normal polarity and female gender contacts for flexible use.
- Suitable for various electronic and RF applications requiring stable, subminiature SMB connectors.
Product Description
RS PRO 526-5820 Coaxial Connector PCB Female SMB is a precision-engineered electronic connector designed for reliable PCB interfacing with a 50 Ω impedance and straight body orientation. This subminiature SMB connector has a gold-plated brass body combined with PTFE insulation and beryllium copper gold-plated contacts which ensures excellent signal integrity and corrosion resistance.
The connector supports high-frequency operation up to 18 GHz, suitable for advanced RF communication equipment, test and measurement instruments, and other industrial and laboratory devices. Its solder termination type provides robust mechanical and electrical connections to printed circuit boards.
Operating temperature ranges from -65°C to 165°C, enabling dependable performance in harsh environments. The normal polarity female contact configuration allows flexible mating with compatible SMB connectors, facilitating seamless integration in electronic systems.
The series lacks specific approvals but is maintained to RS PRO quality standards. These connectors are typically used in telecommunications, aerospace, automotive electronics, and other sectors where high-performance RF connectors are vital.
PCB mounted SMB coaxial connector with gold-plated body and contacts. Supports frequencies up to 18 GHz ensuring excellent signal transmission. Operating temperature from -65°C to 165°C for broad environmental use. Construction includes durable beryllium copper contacts and PTFE insulation.
Solder termination type for secure PCB connection. Normal polarity and female contact gender suitable for various applications. Subminiature size for compact electronic assemblies.
This RS PRO connector is ideal for industrial, laboratory, telecommunications, and manufacturing applications requiring dependable RF PCB connections. Browse our RS PRO Coaxial Connectors category to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 18 GHz, making it suitable for high-frequency applications.
It uses a solder termination type, providing secure connections to printed circuit boards.
The operating temperature range for this unit is from -65°C to 165°C, allowing it to function in various environments.
The connector features a gold-plated brass body and beryllium copper contacts, ensuring good signal integrity and corrosion resistance.
This connector is classified as a subminiature size, making it suitable for compact electronic assemblies.
It is suitable for various electronic and RF applications, including telecommunications, aerospace, and test equipment.
This model supports PCB mounting, which is essential for integrating with printed circuit boards.
The body of this connector is gold-plated, which enhances its durability and signal transmission capabilities.
The country of origin for this connector is Taiwan.
