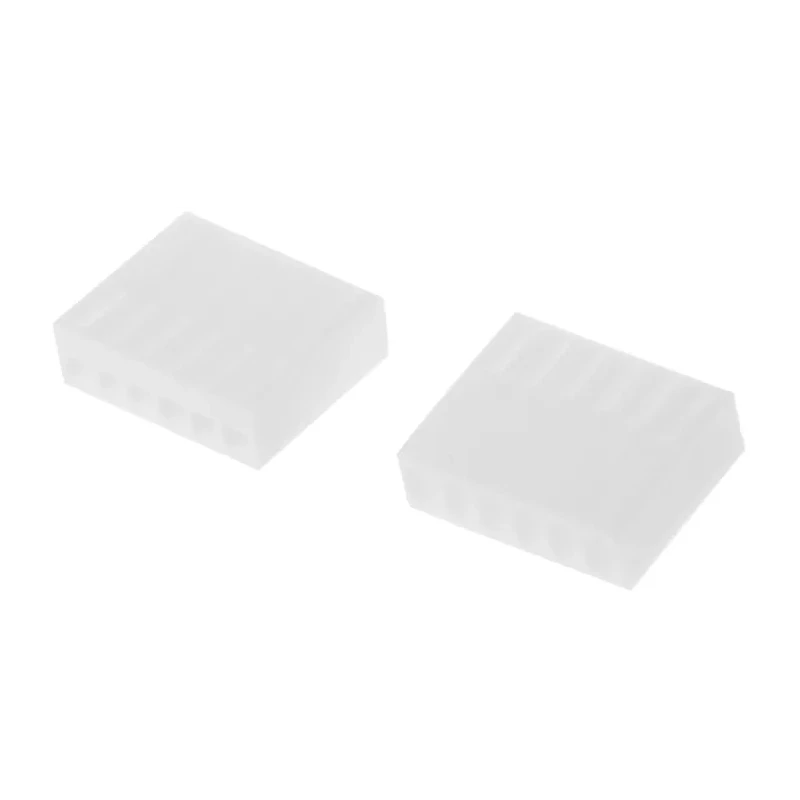

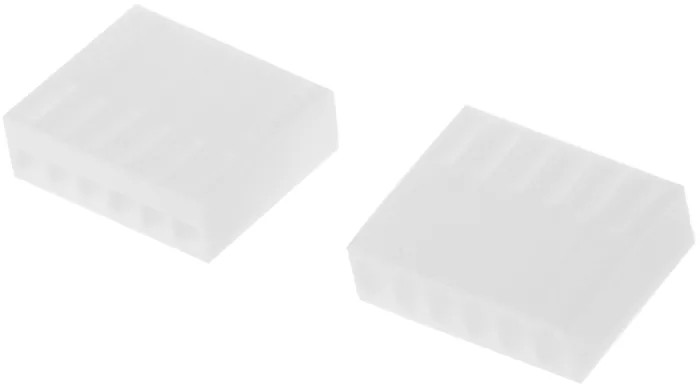

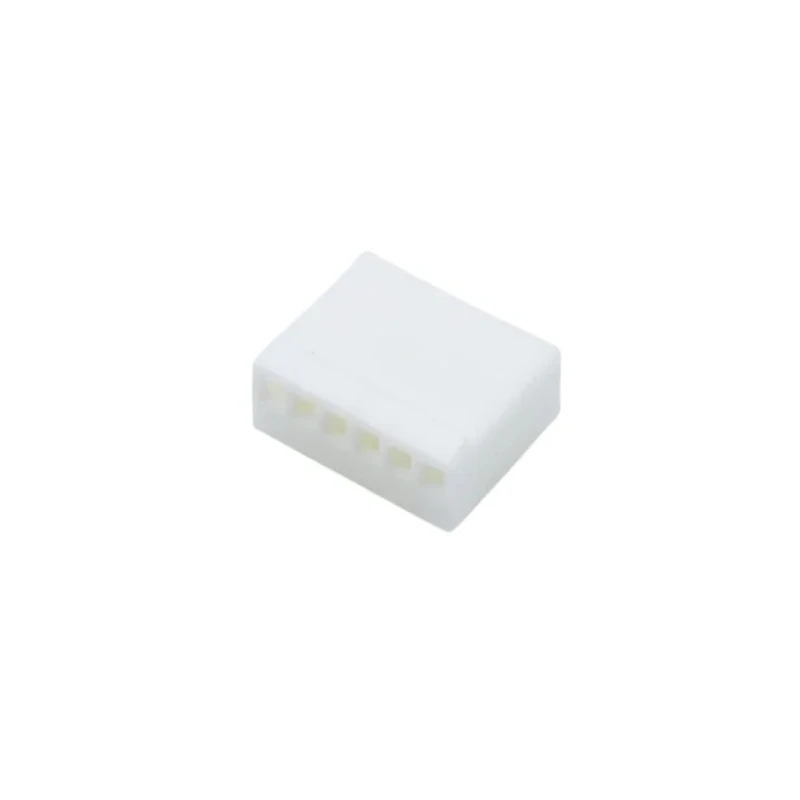

Molex KK 254 Female Connector Housing Nylon, 2.54 mm Pitch, 6 Way, 1 Row Straight 22-01-2067
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 15.8mm |
| Width | 4.82mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 254 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | KK Connector |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- The housing is made from durable nylon material ensuring longevity and insulation.
- Features a straight body orientation to facilitate straightforward assembly and handling.
- Compact dimensions of 15.8 mm length and 4.82 mm width optimize board packing efficiency.
- Friction ramps provide secure mating with male connectors to prevent disconnections.
- Designed for use in automotive, consumer electronics, aerospace, and medical industries.
- Compatible with KK Connector systems for reliable wire-to-board connections.
Product Description
Molex 22-01-2067 KK 254 Female Connector Housing is a high-quality cable-mount connector housing constructed with robust nylon material, ensuring durability and electrical insulation. It features a 2.54 mm pitch and six contacts arranged in a single row with a straight body orientation for easy assembly and integration.
This connector housing is engineered to keep communication flowing freely within control circuits by protecting signal transmission between PCBs efficiently. Its compact dimensions (15.8 mm length and 4.82 mm width) maximize board packing efficiency, making it ideal for space-sensitive electronic designs.
The friction ramp mechanism ensures a secure and reliable mating with male terminals, enhancing mechanical retention and electrical connection integrity. This connector housing belongs to the KK 254 series specialized for multipole wire-to-board connections within the KK connector system from Molex.
Typical industrial and commercial applications include use in automotive systems, consumer electronics, aerospace engineering, hospitals, and medical centers. The housing's nylon material provides effective insulation to protect against electric shocks, ensuring safety and compliance in various demanding environments.
The housing material is nylon which provides electrical insulation and mechanical robustness. It supports six contacts arranged in a single row with a 2.54 mm pitch. Its straight body orientation facilitates easy handling and assembly operations.
Compact size and friction ramp locking ensures secure connector mating and space-efficient PCB layout. Applications span across automotive, aerospace, medical, and consumer electronics sectors, highlighting versatile industrial usage.
For engineers and designers requiring quality wire-to-board connection solutions, this Molex KK 254 female Connector Housing offers a reliable, durable, and industry-tested component. Browse the Electronics & Electricals category at EnvMart for more connector types and related components to complete your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex KK 254 Female Connector Housing features a pitch of 2.54 mm.
This connector housing supports six contacts arranged in a single row.
The dimensions of this connector housing are 15.8 mm in length and 4.82 mm in width.
The housing is made from nylon, providing electrical insulation and mechanical robustness.
This model has a straight body orientation, facilitating easy handling and assembly.
It is designed for use with the KK Connector series from Molex.
This connector housing supports cable mounting.
Typical applications include automotive, consumer electronics, aerospace, and medical industries.
The friction ramp mechanism ensures secure mating with male terminals, enhancing mechanical retention and electrical connection integrity.
The country of origin for this connector housing is India.
This model has one row of contacts.
Yes, its compact dimensions optimize board packing efficiency, making it suitable for space-sensitive electronic designs.
