Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch Solder 71439-1164

Free Delivery in India | Lowest Global Shipping Charges

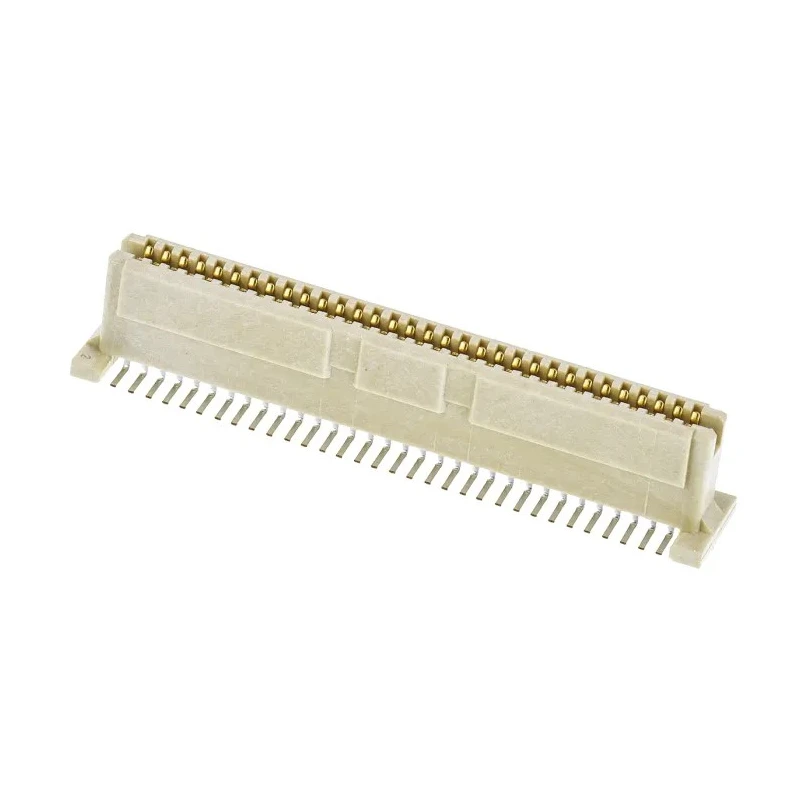

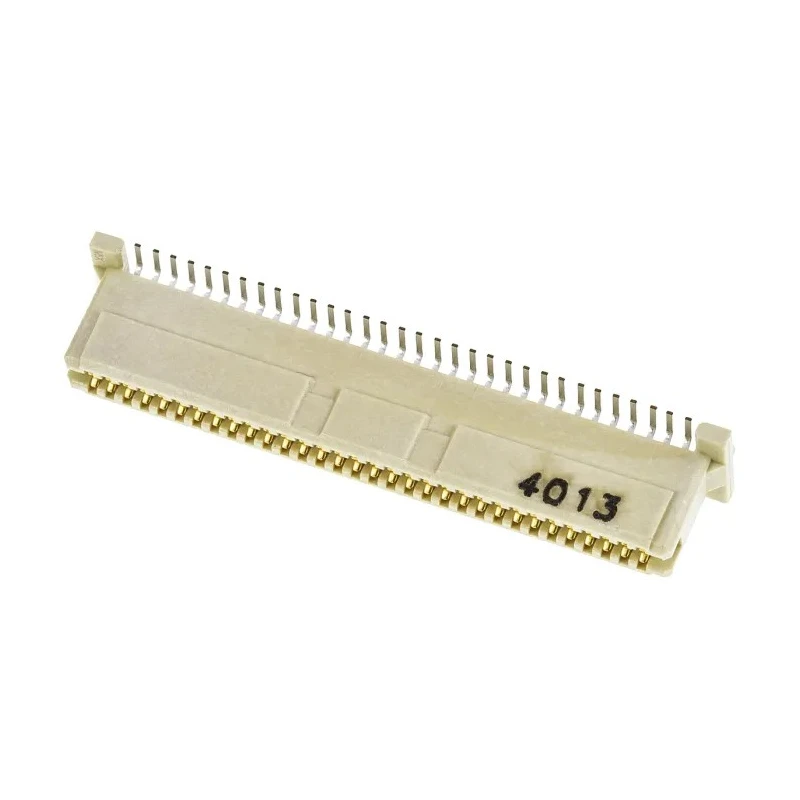

Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch Solder 71439-1164

Name: Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch Solder 71439-1164
Brand: Molex
SKU: 186463
Price: 14.53 USD
Availability: InStock



Category Edge Connector Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	100V
Brand	Molex
Orientation	Straight
Current	12A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Bronze
Series	PMC Mezzanine
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Interfaces	LAN, WAN, telecommunication, PC and workstation applications
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Female
Connector System	Board-to-Board, Signal
Row Pitch	1.4mm
Mated heights	8 → 15mm (see combination guide)

Key Features

Supports a current rating of 12A for reliable power delivery.
Constructed with thermoplastic housing ideal for high-temperature reflow solder processes.
Gold-plated bronze female contacts ensure robust electrical performance and corrosion resistance.
Designed for use in LAN, WAN, telecommunication, PC, and workstation applications.
Features a low insertion force and shrouded leaf design to minimize contact damage during mating.
Operates reliably from -55°C to 85°C to support a wide range of environments.
Vertical stacking SMT headers and sockets with mated heights ranging from 8 to 15 mm.
Compliant with UL recognized component standards.

Product Description

The Molex 71439-1164 PMC Mezzanine Series Straight Surface Edge Connector is a high-quality electronic component designed for versatile vertical stacking applications in industrial and commercial electronics.

This Edge Connector features 64 contacts arranged in two rows with a precise 1 mm pitch, making it suitable for dense board-to-board signal connections. The solder termination and surface mount design allow for secure PCB integration with minimal assembly effort.

Constructed with a durable thermoplastic housing, the connector withstands high temperatures required by reflow soldering processes. Bronze contacts plated with gold provide excellent conductivity and durability while reducing contact resistance and corrosion risk.

Engineered for applications in network communication such as LAN and WAN infrastructures, telecommunications equipment, personal computers, and workstations, the connector ensures reliable signal transmission and power handling with a 12A current rating and 100V operating voltage.

The connector's design incorporates a shrouded leaf structure to protect the header contacts from mechanical damage. Its low insertion force facilitates easy mating and unmating, thereby improving maintenance efficiency.

64-contact count in dual row layout supports high-density connections. Surface mount technology (SMT) for board-level mounting. Wide operating temperature range from -55°C to 85°C suits diverse environments. Vertical stacking capability with mated heights between 8 mm and 15 mm.

UL recognized component enhancing reliability and safety compliance. This product is manufactured in the United States and meets quality standards required for rigorous industrial and commercial uses. Explore EnvMart's wide selection of high-performance PCB connectors and related components for your advanced electrical and electronic system designs.
