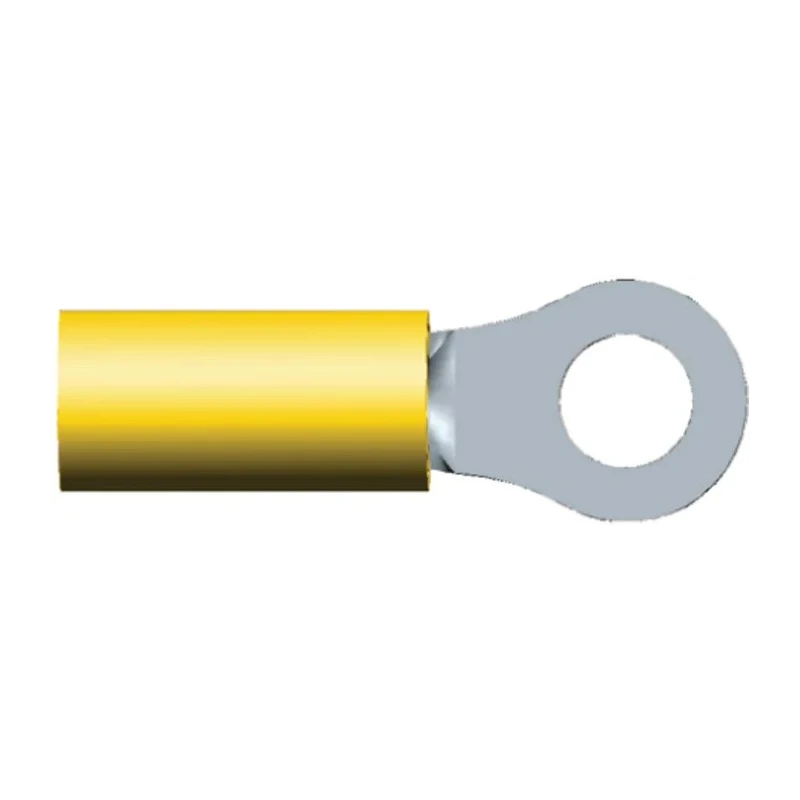

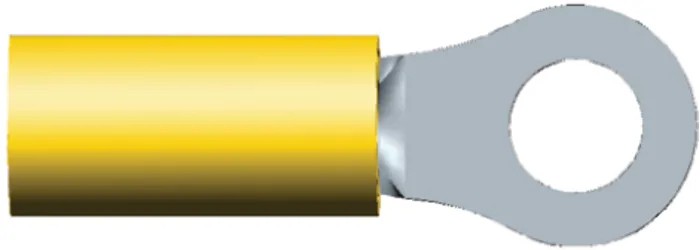

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 12 AWG - 10 AWG Vinyl Insulation Yellow 34854

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 12 AWG - 10 AWG Vinyl Insulation Yellow 34854

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 12 AWG - 10 AWG Vinyl Insulation Yellow 34854
Brand: TE Connectivity
SKU: 205528
Price: 0.4 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.99mm
Model	34854
Insulation	Insulated
Overall Length	27.89mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Standards/Approvals	UL, RoHS, CSA
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	9.52mm
Inner Ring Diameter	5mm
Stud Size	M5

Key Features

Constructed with high conductivity copper material ensuring excellent electrical performance.
Features a tin plating for superior corrosion resistance and durability.
Has a vinyl insulation rated at 94V-0 for high dielectric strength and safety.
Suitable for wire sizes ranging from 2.6 mm² to 6.6 mm² providing versatility.
Overall length measures 27.89 mm with a thickness of 0.99 mm for robust mechanical strength.
Operating temperature rated up to 105°C for reliable use in demanding environments.
Yellow color coding simplifies wire gauge identification during installations.
Compatible with M5 stud size, offering secure terminal mounting.

Product Description

TE Connectivity 34854 PLASTI-GRIP insulated ring terminal is engineered for secure electrical connections in industrial and electronic applications. This ring terminal accommodates M5 stud sizes and wire sizes ranging from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²), suitable for power connectors and wiring harnesses.

The terminal features a high conductivity copper contact body with tin plating to resist corrosion and enhance electrical conductivity. The closed barrel design includes a serrated inner barrel to maximize electrical contact and tensile strength after crimping.

The vinyl insulation sleeve is rated 94V-0, offering excellent dielectric strength and mechanical protection at operating temperatures up to 105°C. The yellow color coding aids easy wire size identification on-site.

With an overall length of 27.89 mm and a thickness of 0.99 mm, this terminal provides robust mechanical stability for demanding electrical connections. The M5 stud size ring ensures a secure and reliable mechanical fastening in electrical panels and devices.

The terminal complies with key approvals including UL, RoHS, and CSA, making it ideal for use in industrial, electronic component manufacturing, power distribution systems, and HVAC equipment.

High conductivity copper with tin plating for corrosion resistance. Vinyl insulation with high dielectric strength rated 94V-0. Serrated inner barrel enhances electrical contact and tensile strength. Supports wire sizes 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²).

Suitable for M5 stud size mounting. Yellow color for easy wire gauge identification. Operating temperature up to 105°C. Compliant with UL, RoHS, and CSA standards.

TE Connectivity PLASTI-GRIP Ring Terminals are ideal for applications in industrial automation, manufacturing, electrical panel building, and maintenance programs requiring reliable electrical connections.
