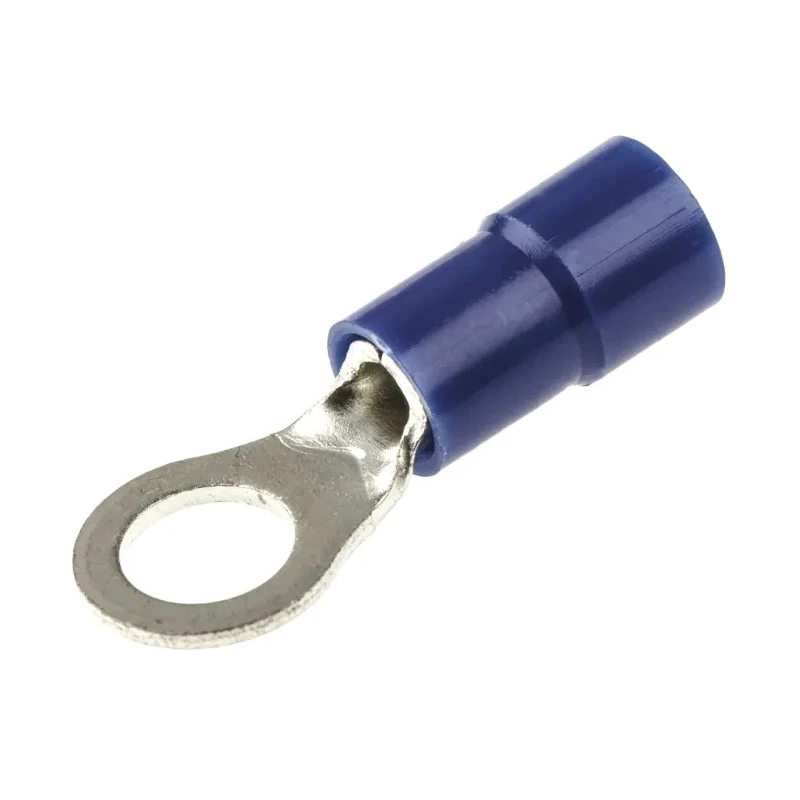

RS PRO Insulated Ring Terminal M5 Stud Blue Vinyl Insulation 14-16 AWG Wire Size 613-9312

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M5 Stud Blue Vinyl Insulation 14-16 AWG Wire Size 613-9312

Name: RS PRO Insulated Ring Terminal M5 Stud Blue Vinyl Insulation 14-16 AWG Wire Size 613-9312
Brand: RS PRO
SKU: 198752
Price: 7.9 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Blue
THICKNESS	0.8mm
Model	613-9312
Insulation	Insulated
Overall Length	22.8mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Per Unit, RS stock no	613-9312
RS stock no	270-7649
Outer Ring Diameter	8.5mm
Inner Ring Diameter	5.3mm
Stud Size	M5
RS PRO Insulated Ring Terminal, M5 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand	RS PRO
Blue M5 ring terminal,1.5-2.5sq.mm wireBrand	NEUTRAL
TE Connectivity Crimp Ring Terminal, 5mm Stud Size, Black, YellowBrand	TE Connectivity

Key Features

Copper contact material ensures excellent electrical conductivity.
Tin plating provides corrosion resistance and durability.
Vinyl insulation protects against electrical shock and environmental factors.
Suitable for stud size M5 with inner ring diameter of 5.3 mm and outer ring diameter of 8.5 mm.
Overall length of the terminal is 22.8 mm for efficient installation.
Operating temperature range from -40°C to 105°C makes it reliable in various environments.
Color-coded insulation aids quick terminal size identification.
Ideal for industrial control systems, automotive, communication equipment, power supplies, and domestic appliances.

Product Description

RS PRO 613-9312 Insulated Ring Terminal with M5 stud size is suitable for electrical wiring applications requiring secure and reliable connections. It supports 14 AWG to 16 AWG wire sizes with a blue vinyl insulation that provides electrical insulation and protection while enabling easy identification.

This ring terminal is constructed with a copper body and tin plating which ensures excellent electrical conductivity and corrosion resistance. The terminal's thickness of 0.8 mm and overall length of 22.8 mm allows for a sturdy and compact connection.

Designed for a stud size of M5, it has an inner ring diameter of 5.3 mm and an outer diameter of 8.5 mm. It operates effectively in temperatures ranging from -40°C to 105°C, making it suitable for diverse industrial, automotive, and commercial electrical applications.

The vinyl insulation is expanded for easy wire insertion and crimping, providing a secure mechanical and electrical connection. The color coding simplifies selection by identifying wire gauge compatibility (1.5 mm² to 2.5 mm²).

Copper construction for high conductivity. Tin plating for enhanced corrosion resistance. Vinyl insulation safeguards and identifies wire size. Precision dimensions for effective fitting (M5 stud, 5.3 mm inner diameter).

Wide operating temperature range supports various environments. Easy to crimp with suitable tools for reliable connectivity. Perfect for industrial, automotive, communication, power supply, and domestic appliance wiring.

Durable design reduces maintenance and replacement needs.

This insulated Ring Terminal supports safe and dependable electrical connections across many sectors such as industrial automation, manufacturing, automotive, and home electrical systems. Its features make it an essential component for assembling wired electrical devices or systems where strong terminus connections are critical.
