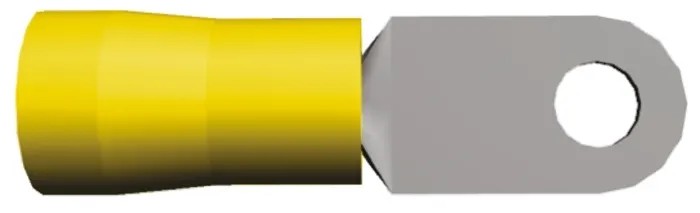

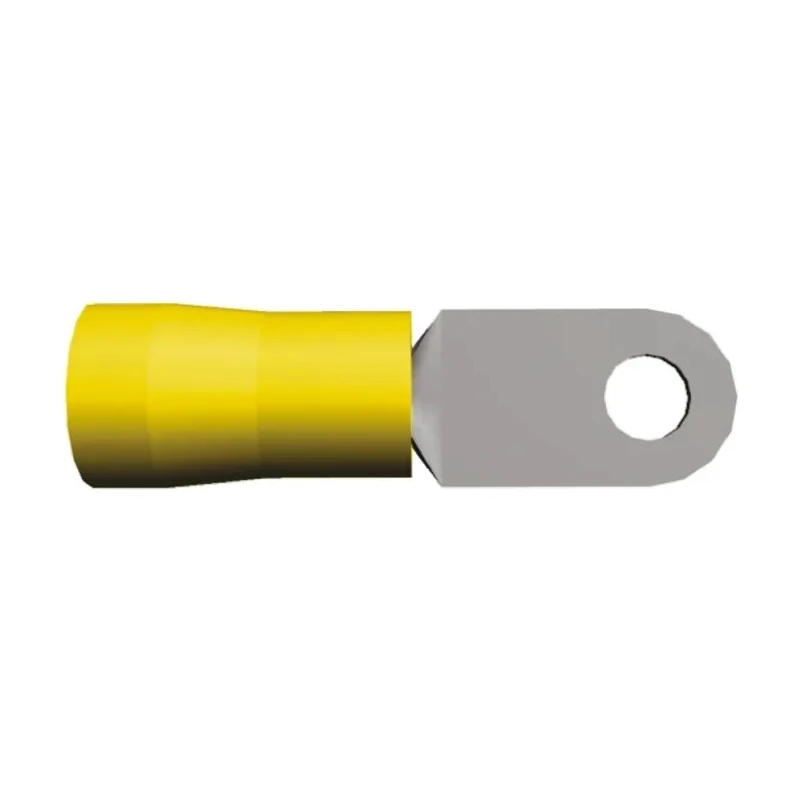

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size, Yellow 52043-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size, Yellow 52043-3

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size, Yellow 52043-3
Brand: TE Connectivity
SKU: 205521
Price: 4.75 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.79mm
Model	52043-3
Insulation	Insulated
Overall Length	49.48mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Polyvinyl Chloride
Standards/Approvals	UL, RoHS, CSA
Contact Plating	Tin
Minimum Wire Size mm²	16.77mm²
Maximum Wire Size mm²	26.65mm²
Minimum Wire Size AWG	4AWG
Outer Ring Diameter	13.87mm
Inner Ring Diameter	5mm
Stud Size	M6

Key Features

Constructed from high conductivity copper with tin plating for corrosion resistance.
Features polyvinyl chloride insulation rated at 94V-0 for high dielectric strength.
Outer ring diameter of 13.87mm and inner ring diameter of 5mm ensure proper fitment.
Overall length of 49.48mm with thickness of 0.79mm offers durability.
Rated for a maximum operating temperature of 105°C for reliable performance.
Serrated inner barrel design provides maximum electrical contact and tensile strength after crimping.
Funnel entry facilitates easy insertion of stripped wire during installation.
Meets standards and approvals of UL, RoHS, and CSA for safety and compliance.

Product Description

TE Connectivity 52043-3 PLASTI-GRIP insulated ring terminal is designed for electrical and power connector applications requiring secure wire terminations. Made of high conductivity copper with a tin plating, the terminal provides optimum conductivity and resistance against corrosion.

The polyvinyl chloride insulation sleeve is rated at high dielectric strength 94V-0, offering excellent electrical insulation and resistance to mechanical damage. The ring terminal supports a stud size of M6, and is compatible with wire sizes of 4 AWG (16.77mm² to 26.65mm²), ensuring versatility in wiring installations.

The outer ring diameter measures 13.87mm, inner ring diameter 5mm, thickness 0.79mm, and the overall length is 49.48mm, crafted for a secure and durable connection.

The serrated inner barrel enhances tensile strength and electrical contact after crimping, while the funnel entry design simplifies wire insertion and crimping for efficient assembly.

This terminal is rated for a maximum operating temperature of 105°C, suitable for demanding electrical environments.

Conforming to UL, RoHS, and CSA standards, the product is suitable for industrial, electrical, HVAC, manufacturing, and commercial applications requiring reliable wire connections.

Constructed from copper with tin plating for corrosion resistance. Polyvinyl chloride insulation rated for electrical safety. Designed for M6 stud and 4 AWG wire size. Serrated barrel enhances tensile and electrical contact strength.

Funnel entry aids in easy wire insertion. Maximum operating temperature of 105°C. UL, RoHS, and CSA approved for quality compliance. Explore our comprehensive selection of Ring Terminals and connector components at EnvMart for your power connector needs.
