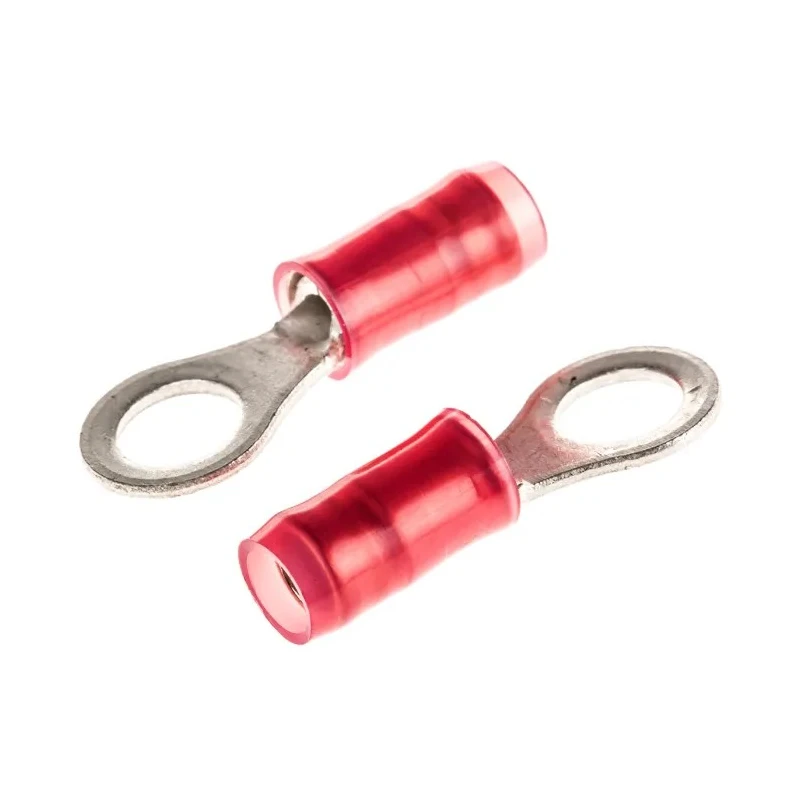

TE Connectivity PIDG Insulated Ring Terminal M4.5 Stud Size, 22 AWG to 16 AWG Wire Size, Red 36153

TE Connectivity model 36153 PIDG (Pre-Insulated Diamond Grip) Insulated Ring Terminal features a high conductivity copper body and copper sleeve for enhanced wire insulation support. The serrated barrel ensures uniform crimp reliability and excellent tensile strength, designed specifically for difficult circuit environments.

This ring terminal accommodates wire sizes from 22 AWG to 16 AWG and fits M4.5 stud sizes, with an overall length of 21.44 mm and a thickness of 0.79 mm. The color-coded red nylon sleeve aids quick wire size identification, while the funnelled wire entry prevents strand fraying and enables easy insertion during high-speed manufacturing.

Its robust design and materials deliver consistent performance in electrical wiring applications such as instrumentation, control panels, lighting, power supplies, motors, aerospace, transportation, and appliance wiring. It meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards, ensuring reliability in demanding industrial environments.

The contact material is copper with tin plating to resist corrosion. This terminal operates up to a maximum temperature of 105°C and is manufactured in the United States, guaranteeing quality standards compliance and durability.

High conductivity copper construction for superior electrical contact. Copper sleeve surrounding the barrel increases insulation support and durability. Serrations inside the barrel maximize contact and improve tensile strength after crimping.

Red nylon color-coded insulation for simple wire size and tooling identification. Funnelled wire entry design reduces wire strand damage during insertion. Compatible with wire sizes 22 AWG to 16 AWG and M4.5 stud size. Suitable for various industrial and commercial electrical wiring applications.

Complies with strict MIL-T-7928 standards for quality and reliability.

This TE Connectivity PIDG Ring Terminal is ideal for industrial, laboratory, manufacturing, transportation, HVAC, and commercial electrical installation tasks. It provides a dependable solution for making secure and long-lasting wire connections.

Explore more high-quality electrical connectors and terminals from TE Connectivity in the EnvMart catalog.
