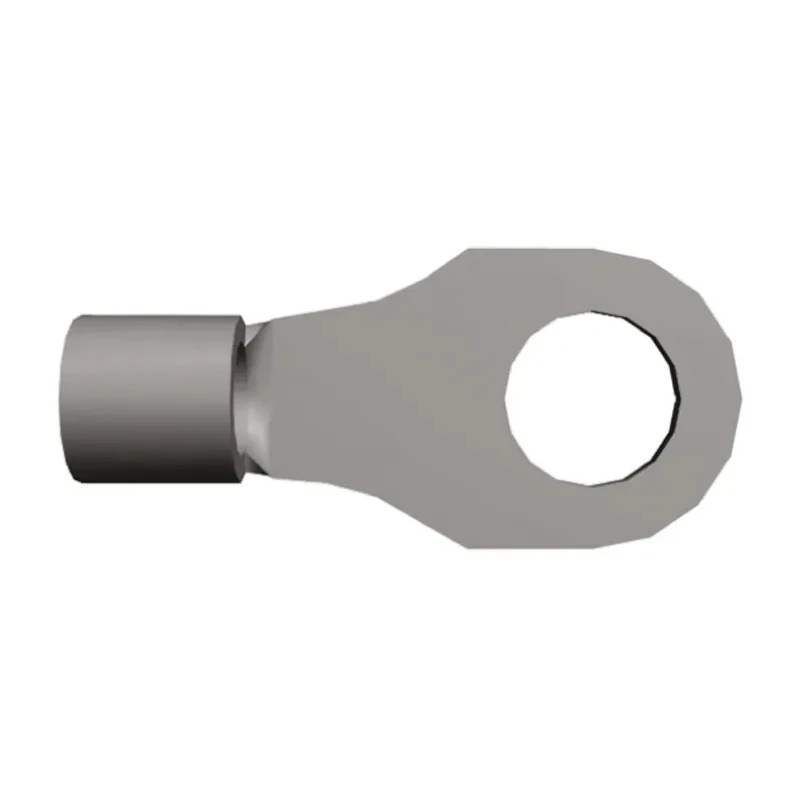

TE Connectivity Solistrand Insulated Ring Terminal M12 Stud Size 4 AWG Wire Size 4 AWG 327175

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Solistrand Insulated Ring Terminal M12 Stud Size 4 AWG Wire Size 4 AWG 327175

Name: TE Connectivity Solistrand Insulated Ring Terminal M12 Stud Size 4 AWG Wire Size 4 AWG 327175
Brand: TE Connectivity
SKU: 205517
Price: 5.35 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
THICKNESS	0.79mm
Model	327175
Insulation	Insulated
Overall Length	48.31mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	CSA LR7189, UL E13288, RoHS
Contact Plating	Tin
Minimum Wire Size mm²	16.8mm²
Maximum Wire Size mm²	26.7mm²
Minimum Wire Size AWG	4AWG
Outer Ring Diameter	22.23mm
Inner Ring Diameter	13.08mm
Stud Size	M12

Key Features

Constructed from high conductivity copper for optimal electrical performance.
Features electro tin plating for improved corrosion resistance.
Robust design suitable for harsh industrial environments.
Brazed seams increase barrel strength and durability.
Serrated inner barrel provides maximum tensile strength and electrical contact.
Bell-shaped barrel entrance allows quick and easy wire insertion.
Suitable for use with SOLISTRAND crimping tools for optimal connection.
Rated for maximum operating temperature of 170°C.

Product Description

TE Connectivity 327175 Solistrand insulated ring terminal features a robust and reliable design ideal for terminating solid and stranded wires of 4 AWG size with an M12 stud. This ring terminal is constructed from fine grade high conductivity copper and electro tin plated to ensure excellent electrical performance and corrosion resistance.

The barrel with brazed seams delivers enhanced mechanical strength suitable for harsh industrial environments. Serrations inside the barrel maximize tensile strength and electrical contact after crimping, while the bell-shaped barrel entry simplifies wire insertion, reducing installation time. These terminals are designed for use with SOLISTRAND crimping tools for optimal mechanical and electrical integrity.

The product complies with international standards including CSA LR7189, UL E13288, and RoHS, making it safe and reliable for demanding applications. Rated for a maximum operating temperature of 170°C, it is ideal for use in motors, heavy equipment, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control systems.

Constructed from fine grade high conductivity copper for optimal electrical performance. Electro tin plating enhances corrosion resistance. Robust design for use in harsh environments. Brazed seams provide increased barrel strength.

Serrated barrel interior for maximum tensile strength and electrical contact. Bell-shaped barrel entry simplifies wire insertion. Compatible with SOLISTRAND crimping tools for optimal connection. Maximum operating temperature of 170°C.

Certified to CSA LR7189, UL E13288, and RoHS standards. Suitable for diverse industrial and commercial electrical applications.

TE Connectivity’s SOLISTRAND ring terminals provide a dependable solution for effective wire termination in various electrical and industrial settings. Explore EnvMart’s range for more power connectors and Ring Terminals matching your technical requirements.
