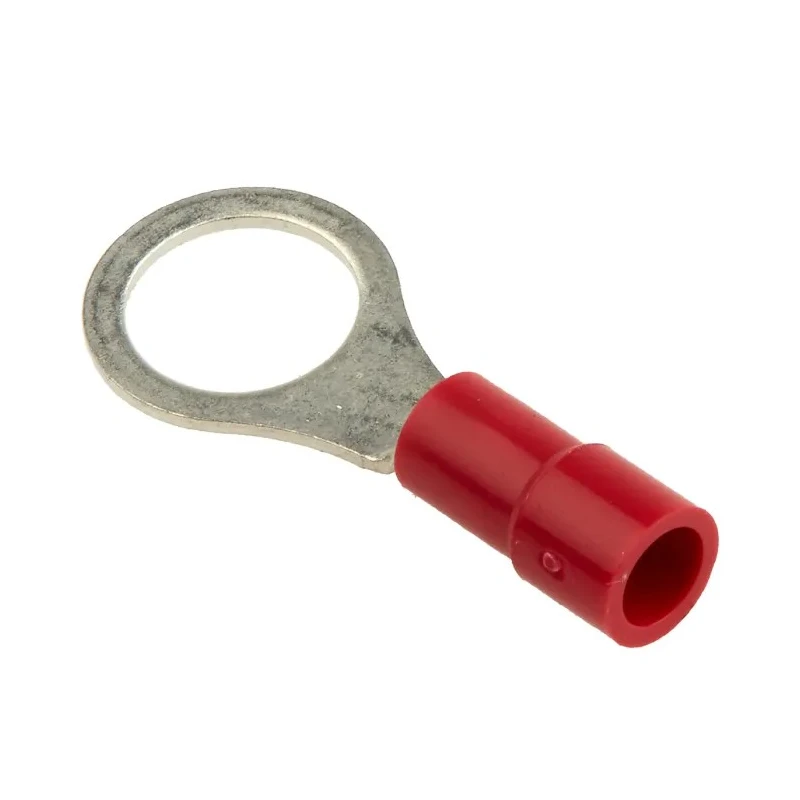

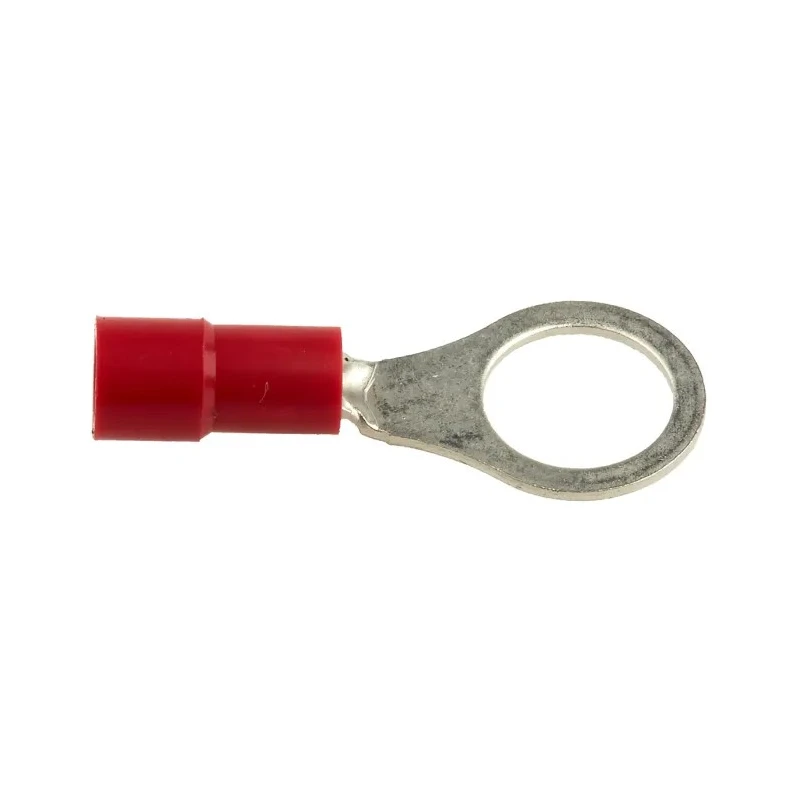

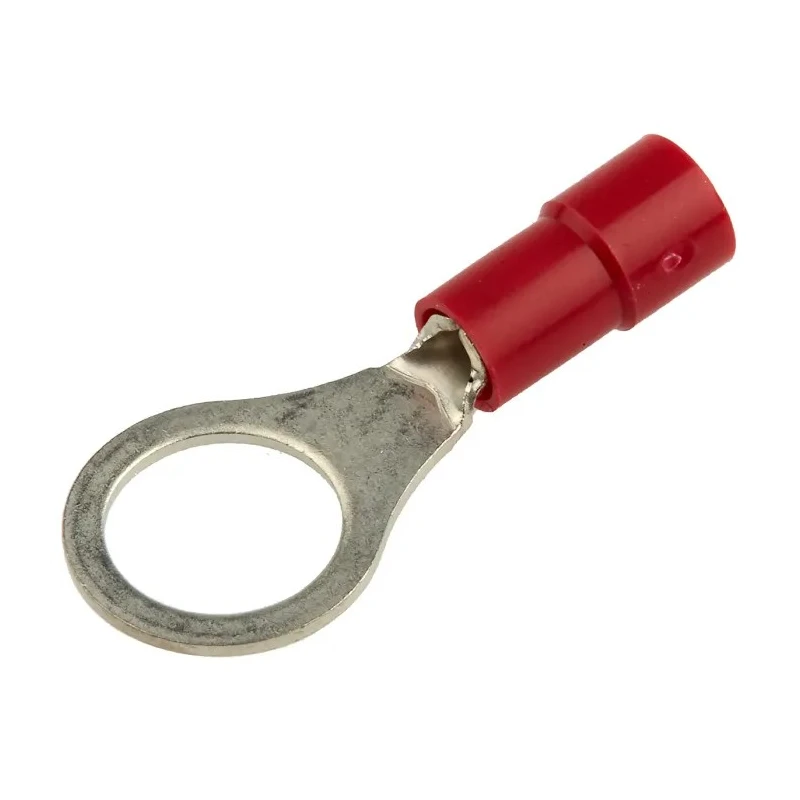

RS PRO Insulated Ring Terminal M8 Stud Size 22 AWG 16 AWG Wire Size Vinyl Insulation Copper Tin Plating Red 613-9299

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M8 Stud Size 22 AWG 16 AWG Wire Size Vinyl Insulation Copper Tin Plating Red 613-9299

Name: RS PRO Insulated Ring Terminal M8 Stud Size 22 AWG 16 AWG Wire Size Vinyl Insulation Copper Tin Plating Red 613-9299
Brand: RS PRO
SKU: 198751
Price: 0.21 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
THICKNESS	0.75mm
Model	613-9299
Insulation	Insulated
Overall Length	27.8mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	11.6mm
Inner Ring Diameter	8.4mm
Stud Size	M8
RS PRO Insulated Ring Terminal, M8 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	RS PRO

Key Features

Copper contact material ensures high electrical conductivity and ease of crimping.
Tin plating on contacts provides corrosion resistance and durability.
Vinyl insulation protects the terminal and aids in safe electrical connections.
Expanded insulation entry simplifies wire insertion for efficient installation.
Designed for use in industrial control, automotive, communication, and domestic appliance wiring.
Offers secure and reliable electrical connections when properly crimped.
Operates effectively between -40°C to 105°C, suitable for varying environments.
Color-coded red for easy size identification conforming to wire gauge standards.

Product Description

RS PRO 613-9299 insulated ring terminal features a vinyl insulated copper contact with tin plating, designed for M8 stud connections and wire sizes ranging from 22 AWG to 16 AWG. The red insulation provides electrical insulation and easy identification of the terminal size. The ring terminal offers a secure and reliable connection for various electrical applications.

The copper material allows for excellent conductivity, while the tin plating protects against corrosion and enhances durability.

The ring terminal has an outer ring diameter of 11.6mm, an inner ring diameter of 8.4mm, and an overall length of 27.8mm, with a thickness of 0.75mm. Its operating temperature ranges from -40°C to 105°C, making it robust in various environmental conditions.

Copper body for high conductivity and easy crimping. Tin plating for corrosion resistance and added strength. Vinyl insulation for durable electrical protection. Color-coded red for quick size recognition. Expanded insulation entry for easy wire insertion.

Suitable for M8 stud and wire sizes 22 AWG to 16 AWG. Operational temperature range of -40°C to 105°C. Ideal for industrial automation, automotive wiring, communication devices, and household electrical systems.

Set contains a single insulated Ring Terminal with specifications optimized for secure electrical connections in diverse settings. Explore EnvMart for more electrical connectors and terminals to suit your application needs.
