TE Connectivity PIDG Insulated Ring Terminal, M4.5 Stud Size, 16 AWG 14 AWG Wire Size, Blue 320574

Free Delivery in India | Lowest Global Shipping Charges

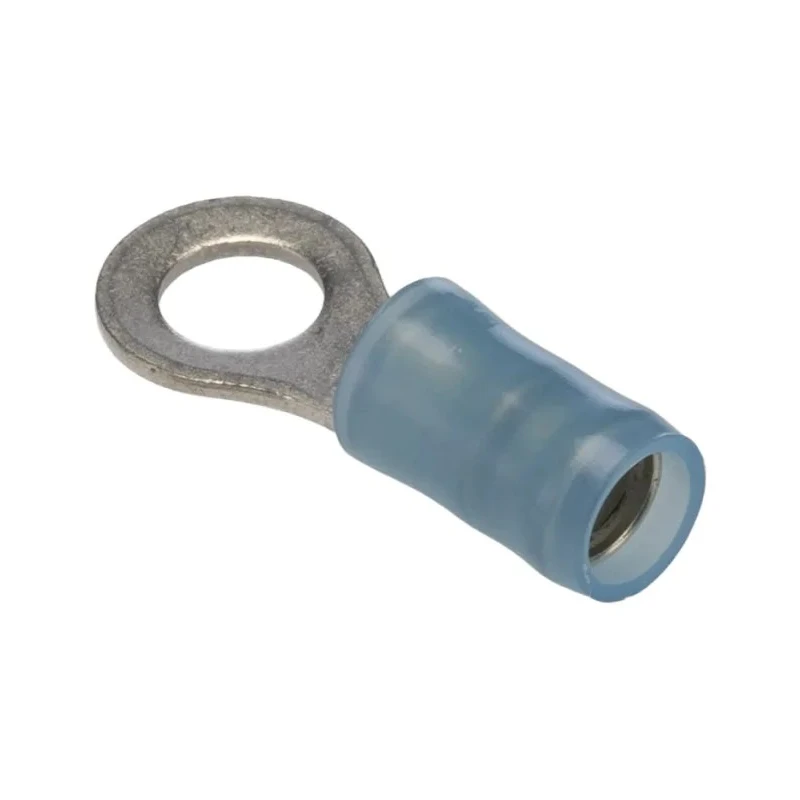

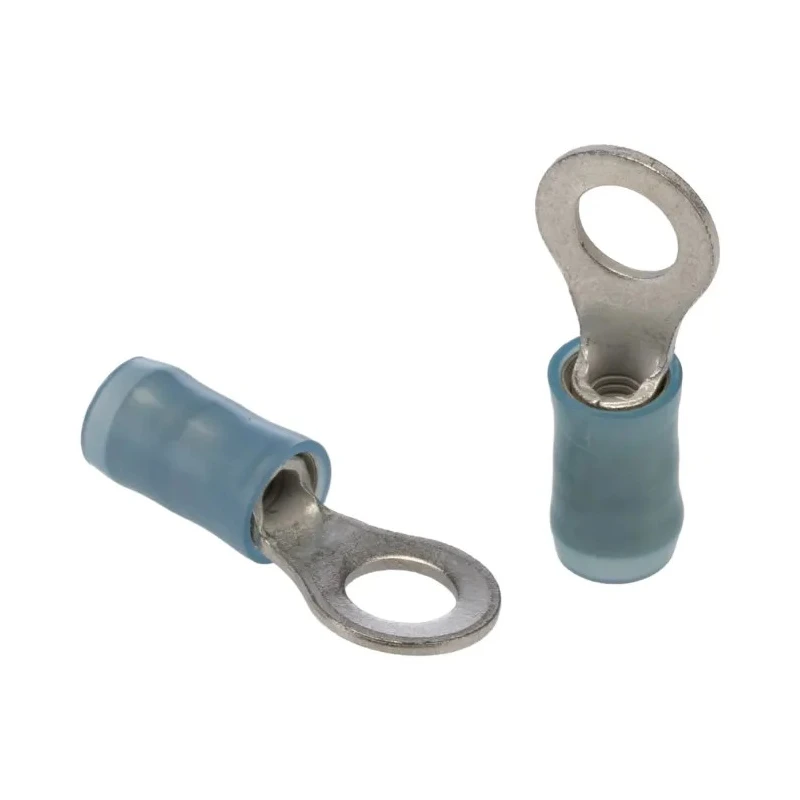

TE Connectivity PIDG Insulated Ring Terminal, M4.5 Stud Size, 16 AWG 14 AWG Wire Size, Blue 320574

Name: TE Connectivity PIDG Insulated Ring Terminal, M4.5 Stud Size, 16 AWG 14 AWG Wire Size, Blue 320574
Brand: TE Connectivity
SKU: 187512
Price: 0.74 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Blue
THICKNESS	0.79mm
Model	320574
Insulation	Insulated
Overall Length	21.82mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	8.71mm
Inner Ring Diameter	5mm
Stud Size	M4.5
RS PRO Insulated Ring Terminal, M4 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand	RS PRO
Connector, crimp, terminal, PIBrand	TE Connectivity

Key Features

High conductivity copper body ensures excellent electrical performance.
Nylon insulated sleeve provides effective wire insulation and easy wire size identification.
Ring terminal has an outer diameter of 8.71mm and inner diameter of 5mm suitable for M4.5 stud sizes.
Contact plating of tin enhances corrosion resistance and durability.
Designed with serrations in the wire barrel for maximum contact and tensile strength.
Supports wire sizes from 16 AWG (1mm²) to 14 AWG (2.6mm²) for versatile applications.
Overall length of 21.82mm with thickness of 0.79mm provides a compact and robust connection point.
Suitable for industrial and commercial applications including instruments, lighting, power supplies, and aerospace.

Product Description

TE Connectivity 320574 PIDG Insulated Ring Terminal is an insulated electrical connector designed for reliable wiring connections. Featuring a high conductivity copper body with a nylon insulation sleeve coloured blue for easy wire gauge recognition, this ring terminal is engineered for uniform and secure crimps. It fits M4.5 stud sizes and supports wire sizes from 16 AWG to 14 AWG.

The terminal's copper barrel includes serrations for enhanced contact and tensile strength, while the tin plating on the contacts ensures resistance to corrosion and long-lasting performance. The outer ring diameter measures 8.71mm, with an inner diameter of 5mm to securely fit bolts or studs. The overall length of 21.82mm and thickness of 0.79mm offer compactness ideal for tight spaces.

This ring terminal is suitable for a broad spectrum of industrial uses such as control instrumentation, lighting fixtures, power supplies, panel wiring, transportation systems, lifting equipment, motors, aerospace, and appliance electrical assemblies. The color-coded nylon insulation aids in wire size identification and tooling compatibility, enhancing production efficiency.

High conductivity copper body for efficient electrical connections. Nylon insulation sleeve prevents fraying and enhances safety. Serrated barrel design for maximum mechanical and electrical contact. Tin-plated contacts improve corrosion resistance and durability.

Color coding enables quick wire size identification during installation. Precise dimensions ensure correct fit for M4.5 stud sizes. Supports wire sizes from 16 AWG to 14 AWG (1 to 2.6 mm²). Robust construction suitable for demanding industrial and aerospace environments.

Choose this TE Connectivity PIDG Ring Terminal for reliable, durable, and easy-to-install wire termination solutions in diverse applications. Explore more high-quality connectors and terminals from our extensive inventory at EnvMart.
