Process Digital pH Probe 50m PTFE Junction PVDF Body RS485, High Temp | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

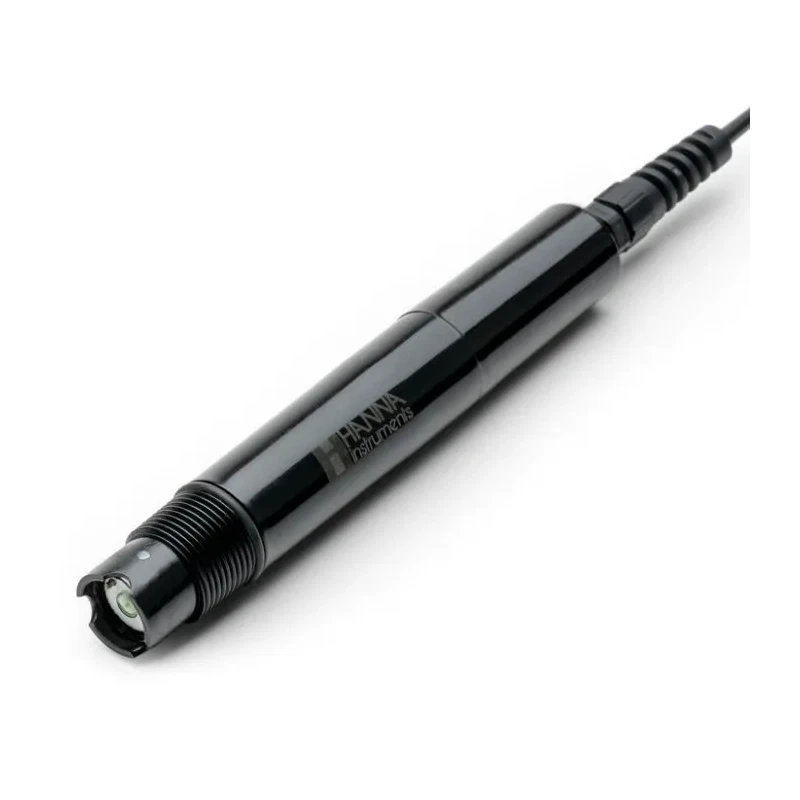

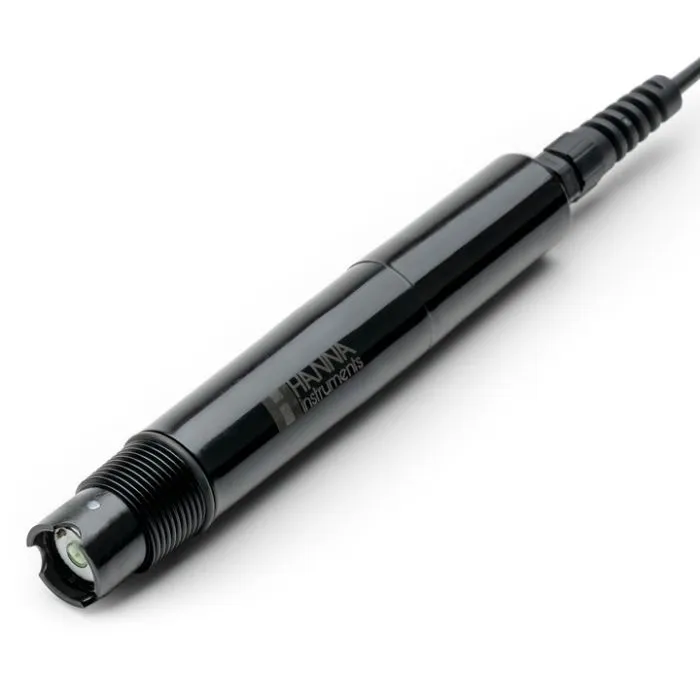

Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-HT - High Temperature-PTFE

Name: Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-HT - High Temperature-PTFE
Brand: Hanna
SKU: 72328
Price: 1231.79 USD
Availability: InStock



Category pH Electrodes Brand Hanna

Specifications

Country of Origin	India
Body Material	PVDF
Product Type	Digital pH Probe for Process Applications

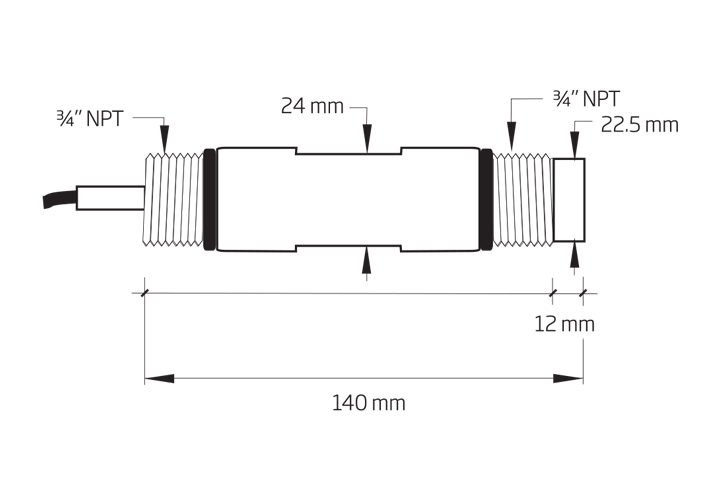

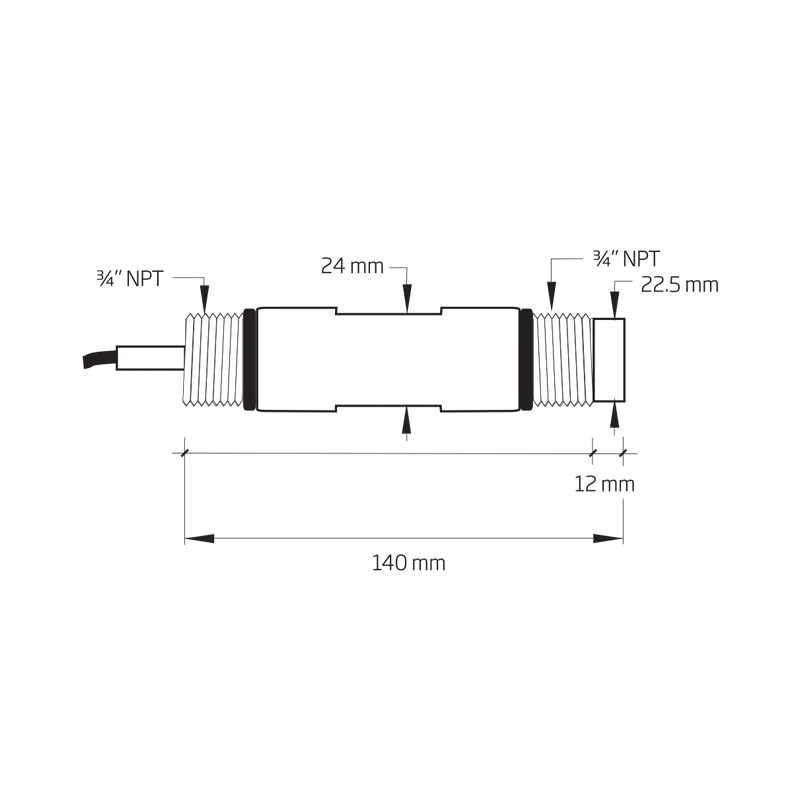

Outer Diameter	22.5 mm
Cable Length	50 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection
Reference Cell Type	Double Junction
Matching Pin	yes
Overall Length	140 mm
Maximum Pressure	6 bar 87 psi
Enclosure Rating	Chemically resistant; suitable for industrial use
Product Condition	New

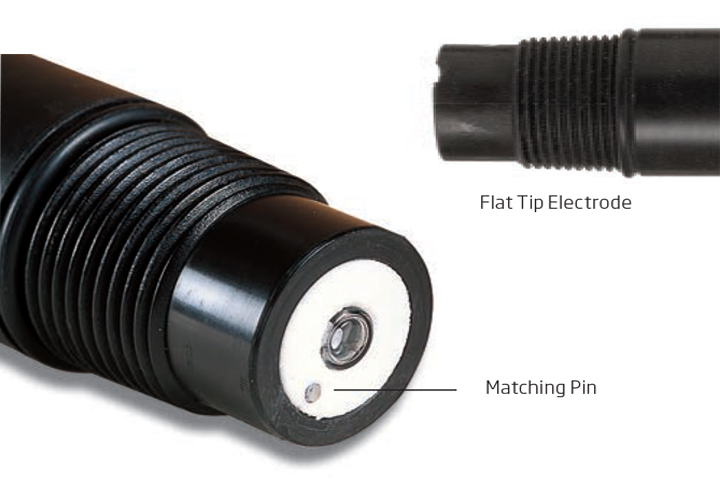

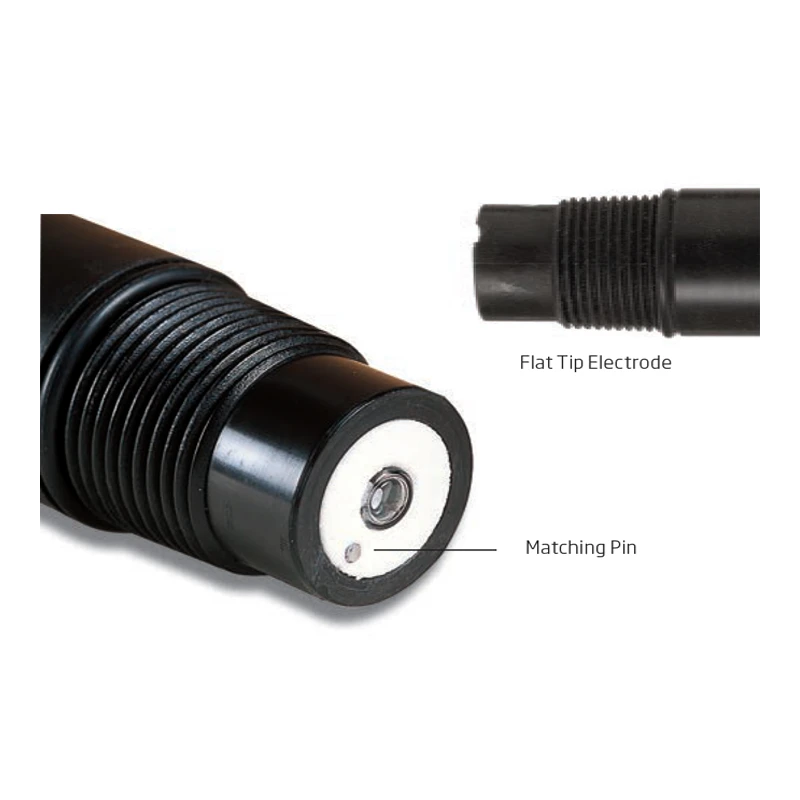

Tip/Shape	Flat
Electrolyte Type	Polymer
Reference Junction	PTFE
Measurement Range (LT Glass)	0 - 12 pH
Measurement Range (HT Glass)	0 - 14 pH
Measurement Range (HF Glass)	0 - 10 pH
Operating Temperature Range (LT Glass)	-5 to 80 °C
Operating Temperature Range (HT Glass)	0 to 100 °C 32 to 212 °F

Key Features

Process digital pH probe with 50 meter cable, PTFE junction, PVDF body, pt100 temperature sensor, and RS485 digital output.

Designed for industrial monitoring and process control applications.
Equipped with a chemically resistant PVDF body and PTFE reference junction for enhanced durability.
Features a built-in pt100 temperature sensor for accurate temperature compensation.
Supports long cable runs of up to 50 meters for flexible installation.
Suitable for high temperature environments with maximum operating range up to 100°C, depending on glass type configuration.
Interface: RS485 digital output ensures reliable signal transmission immune to electrical interference.
Measurement range covers LT, HT, and HF glass types for various pH ranges: LT 0-12 pH, HT 0-14 pH, HF 0-10 pH.
In-line mounting with 3/4" NPT threaded connection or submersion mounting options available.
Max. pressure of 6 bar (87 psi) supports demanding process applications.
Double junction reference cell provides extended sensor life in harsh conditions.

Product Description

This industrial process digital pH probe integrates a robust PVDF body with a chemically resistant PTFE reference junction, making it ideal for continuous monitoring and automation in harsh industrial, water treatment, and laboratory environments. Equipped with a built-in pt100 temperature sensor, it provides precise temperature compensation and high measurement accuracy. The probe offers a 50-meter overall cable length for versatile installation, supporting both in-line (3/4" NPT threaded) and submersion-mounted setups. The digital RS485 output ensures reliable data transmission, immune to common electrical interferences compared to analog alternatives.

Compatible with multiple glass formulations: LT (low temperature), HT (high temperature), and HF (hydrofluoric resistant glass).
Measurement range varies by glass type: 0–12 pH (LT), 0–14 pH (HT), 0–10 pH (HF).
Operates in environments -5°C to 100°C, depending on configuration.
PTFE junction and PVDF body are chemically resistant for demanding industrial processes.
Double junction reference cell extends lifespan and ensures stable readings in aggressive media.
RS485 output provides compatibility with universal process controllers, such as the HI510.
3/4" NPT insertion or submersion mounting capability for easy integration in pipelines and tanks.
Max. operating pressure of 6 bar (87 psi) supports high-pressure process lines.
Flat tip design ensures easy cleaning and reliable pH signal contact.
Direct wire connection for secure and efficient installation.

Typical applications include integration with process controllers in water and wastewater treatment, chemical manufacturing, pharmaceutical production, and general industrial automation. Explore more industrial process sensors and pH electrodes on EnvMart to ensure optimum process reliability and compliance.
